Fiber Optic Attenuator Kits

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number LC/UPC, LC/APC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, plastic module, carton box, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50,000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type LC/UPC, LC/APC Attenuator Range 1dB~30dB
Attenuator Type Bulkhead Type, Adapter Body Material Plastic
Return Loss 55dB For UPC, 65db For APC Color Green, Blue
High Light

optical fiber attenuator

,

fibre optic attenuator

Leave a Message
Product Description

Bulkhead adapter LC/UPC plastic fiber optic attenuator 1~20dB



Fiber optic attenuator descriptions:

Fiber optic attenuator is a device used to reduce the power level of an optical signal, either in free space or in an optical fiber. The basic types of optical attenuators are fixed, step-wise variable, and continuously variable. Fixed optical attenuators used in fiber optic systems may use a variety of principles for their functioning. Preferred attenuators use either doped fibers, or mis-aligned splices, since both of these are reliable and inexpensive. Inline style attenuators are incorporated into patch cables. The alternative build out style attenuator is a small male-female adapter that can be added on to other cables.

The fiber optic attenuators can be used on a more permanent basis in order to match the signal with a transmitter and receiver's specific power levels. Commonly used attenuation range is from 1dB to 30dB.



Applications:

- Erbium Doped Fiber Amplifiers (EDFA)

- Dense Wave Division Multiplexers (DWDM)

- Overpowered fiber optic systems

- Fiber optic communication systems.

- Fiber optic CATV

- Fiber optic test

- Local Area Networks (LAN)



Features:

- High precision.

- Good stability.

- Small size and bulk.

- Easy to operate.

- Wavelength independence

- Based on IEC/Telcordia Bell GR-326-Core Tested

- Metal ion doped fiber

- High-power light source durability

- Attenuation levels ranging from 1dB to 25dB

- 1310nm, 1550nm and 1310/1550nm dual wave lengths



Specifications:

Return Loss UPC >55dB
APC >65dB
Attenuation Accuracy 1 ~ 7 dB ±0.5dB
8 ~ 12 dB ±0.7dB
13 ~ 17 dB ±1.0dB
18 ~ 25 dB ±1.3dB
Maximum Optical Input Power 1000mW
Polarization Dependent Loss ≤0.1dB
Operating Temperature Range -40°C to 75°C
Storage Temperature Range -40°C to 85°C
Humidity 95%RH
Attenuation Value 1dB ~ 30dB
Operating Wavelength 1240~1620nm (Dual 1310/1550nm)



Quick detail:

- Model Number: LC

- Model Name: LC adapter, bulkhead

- Material: Plastic

- Dusty cap color: Green, Blue

- Attenuation range: 0-30 dB



Product pictures:

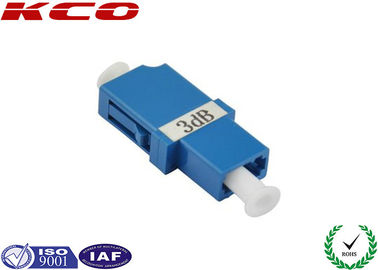

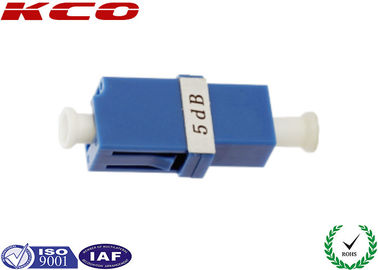

Fiber Optic Attenuator Kits 0

Kocent Optec Limited can supply all attenuation grade of fiber optic attenuator such as 1dB, 2dB, 3dB, 5dB, 7dB, 10dB, 15dB, 20dB, 25dB, etc. The fiber optic attenuator can be in adjustment type. For adjustment type, we can supply in female to female type and online type. Adjustment type fiber optic attenuator can be adjust any attnuation grade as you need.



Packing ways:

Fiber Optic Attenuator Kits 1



OEM Service: Label and package customized is always ready.

If you want to display your own brand LOGO on the lable or package box, it is no any problem. Our OEM service can sastify all of your request.



Shipping:
By International express: TNT, DHL, UPS, special line express, etc
By air: CA, ZH, CZ, AA, AC, BA, etc
By sea
