SC/APC Fiber Optic Splitter Rack Mount Patch Panel 1U Aluminium Alloy 1x64

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-PLC-PN-164SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Tape/ Aluminum Alloy High 1U
Splitter Type ABS Box Type Split Way 1 Way Input & 64 Way Output
Connector SC/APC Cable 2.0mm, 3.0mm
High Light

Planar Lightwave Circuit Splitter

,

PLC Optical Splitter

Leave a Message
Product Description

1*64 1x64 SC/APC Fiber Optic PLC Splitter Rack Mount Patch Panel 1U Aluminium Alloy



Quick order information:

P/N: KCO-PLC-PN-164SCA

Meaning: KCO-PLC Splitter- Patch Panel Rack mount type- 1*64 with SC/APC connector



Description:

- KCO-PLC-PN-164 is design with 1U high for 1*64 or 2*64 fiber optic spltiter install, fit with standard 19'' rack mount cibinet.

- The adapter port can be SC simplex, SC duplex, LC duplex, FC simplex, ST simplex. ....

- It maximum can install 1*64 or 2*64 fiber optic splitter with SC type connector or 2*64 fiber optic splitter with LC type connector.

- The box can make by steel tape with thickness 0.8mm, 1.0mm and 1.2mm. Or also can make by Aluminium Alloy material.

- Paint color can choose grey, white or black or as your request.

- It can be high 1U or also 2U to install 2*64 fiber optic splitter with SC type connector.

- OEM service is open for all of old and new customer.

- Splitter and adapter installation charging is free if you buy all patch panel, splitter and adapter from us.

- Logo printing is free for all of order with quantity more than 100pcs.



Size:

Splitter type 1*64, 2*64
Patch Panel Size 435*245*1U
Thickness 1.0mm/ 1.2mm
Material Steel Tape/ Aluminum alloy
Color Grey, Black, White
Adapter port SC/ FC/ LC/ ST/ E2000/ …
OEM service Yes

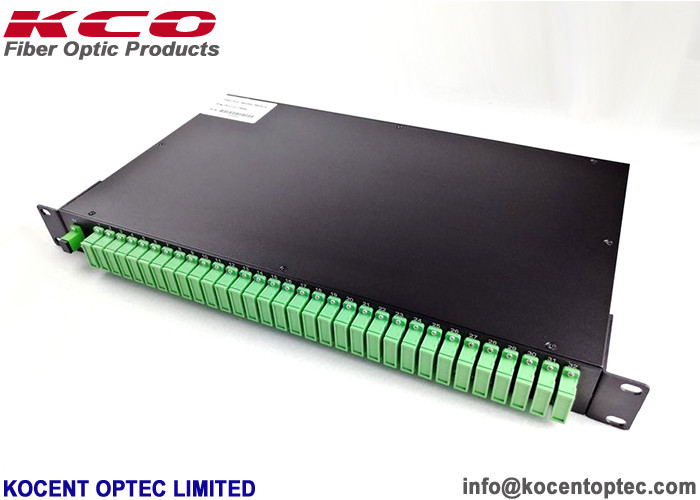

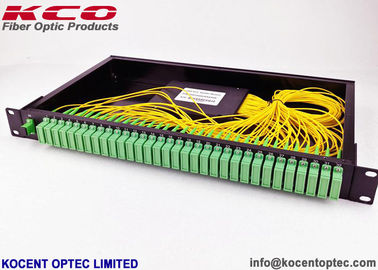

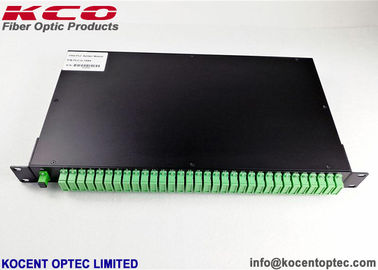

Product photo:

SC/APC Fiber Optic Splitter Rack Mount Patch Panel 1U Aluminium Alloy 1x64 0

SC/APC Fiber Optic Splitter Rack Mount Patch Panel 1U Aluminium Alloy 1x64 1

Features:

- Low insertion loss.

- Low Polarization Dependent Loss.

- Excellent Environmental Stability.

- Excellent Mechanical Stability.

- Meet Telcordia GR-1221 and GR-1209.



Applications:

- Fiber to The Point (FTTX).

- Fiber to The Home (FTTH).

- Passive Optical Networks (PON).

- Gigabit Passive Optical Networks (GPON).

- Local Area Networks (LAN).

- Cable Television (CATV).

- Test Equipment.



Descriptions:

Fiber optic Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

The standard LGX mental box housing provides a plug-and-play method for integration in the network, which eliminates any risks during installation. It eliminates the need for splicing machines on the field and there is no need for skilled personnel for deployement.

1x64 LGX cassttle module fiber optic plc splitte is also called 1*64 LGX module optical fiber plc splitter, plc fiber optic splitter, plc optical fiber splitter, fiber optical splitter, plc fiber splitter, plc optical splitter.



Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
