Tactical 2 Fiber 4 Core Optical Fiber Cable FTTA 4.8mm Indoor Outdoor Field TPU LSZH Non Armored

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-GJYWFJH-4.8-TPU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 10,000km/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PVC, LSZH, TPU Name Outdoor Field Fiber Optic Cable
Length 2km~3km Each Roll Application Outdoor Or Customized
Fiber Single Mode, Multimode, OM3, OM4, OM5 Cores 4 Cores To 24 Cores
High Light

tight buffered fiber optic cable

,

indoor outdoor fiber optic cable

Leave a Message
Product Description

2fiber 4core FTTA 4.8mm

Indoor Outdoor Field Army Military Fiber Optic Cable TPU LSZH Non-armored



Application:
- Military communication system
- Passive optical networks (PON)
- Coal, oil, natural gas, geological exploration
- Broadcast television, temporary communication

- FTTx ( FTTH, FTTB, FTTC, FTTA,...)



Introduction:

- GJYWFJH Indoor Outdoor Field Army militaty fiber optic cable use as the optical transmission medium with 900um tight buffer fiber, a layer of aramid yarn is placed ourside the compact fiber to enhance the element.

- The cable is competed with outside jacket.

- Outside jacket material can be: PVC, LSZH, TPU, PE or as customer request.

- Cable fiber can be Single mode G652D, G657A1, G657A2, G657B3, or Multimode OM1, OM2, OM3, OM4 and OM5.

- Cable with small diamerter (4.8mm), light weight, sastify for field operation.

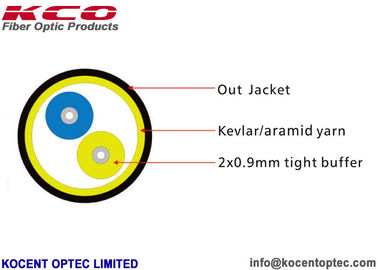

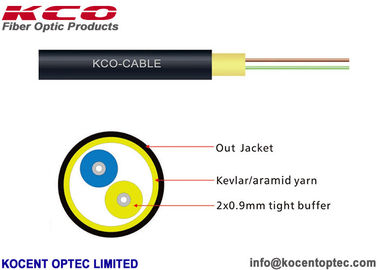

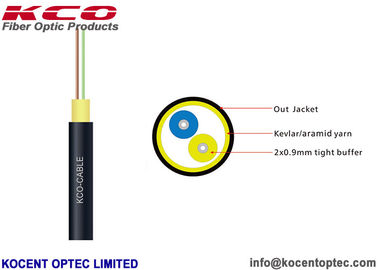

Cable Constructions:

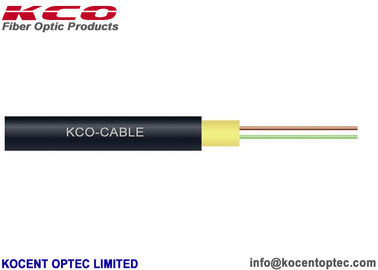

Tactical 2 Fiber 4 Core Optical Fiber Cable FTTA 4.8mm Indoor Outdoor Field TPU LSZH Non Armored 0



Features:

- High Hardness HYTREL tightly packaged fiber,can effectively protect the fiber from the external force damage,at the same time not abate fiber on micro vibration sensor sensitivity:
- Pieces of polyurethane elastomer sheath for cable provides a good structural stability and wear resistance,oil resistance,tear resistance,good elasticity,low temperature flexibility and so on performance:
- Mixer SZ stranding effectively enhance fiber tensile strength,suitable for repeated and applications

- Using flexible steel armour to protect optical fiber, making sure minimum damage
- Prevents damage from improper twisting, high resistance to crush and high tensile strength
- Mechanical protection against pest and rodent
- Rotating reel for deploying and retracting of cable and comes with braking system



Storage/Operating Temperature: -40°C to + 70°C



Standards: Comply with standard YD/T1258.2-2003 and IEC 60794-2-10/11



Optical Fiber Parameter
Fiber Type Single mode G652D,G657, G655, Multimode OM1, OM2, OM3, OM4, OM5
Cable Diameter 4.8±0.2mm
Cladding Diameter 125 ± 1μm
Cladding Non-Circularity ≤ 1%
Coating Diameter 245 ± 10μm
Attenuation Coefficient

≤ 0.36dB/km at 1310nm,

≤ 0.22dB/km at 1550nm

Chromatic Dispersion

≤3.5ps/nm/km at 1285~1330nm,

≤18ps/nm/km at 1550nm

Zero Dispersion Wavelength 1300~1322nm
PMD Coefficient ≤ 0.2ps/√km
Weight 28kg/km



OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Tactical 2 Fiber 4 Core Optical Fiber Cable FTTA 4.8mm Indoor Outdoor Field TPU LSZH Non Armored 1



Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Tactical 2 Fiber 4 Core Optical Fiber Cable FTTA 4.8mm Indoor Outdoor Field TPU LSZH Non Armored 2



Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea

Tactical 2 Fiber 4 Core Optical Fiber Cable FTTA 4.8mm Indoor Outdoor Field TPU LSZH Non Armored 3
