1*8 Mini Splitter Distribution Box NAP De 8 Poertos Accessorios Completos Fibre Optic CTO FDB

  • 1*8 Mini Splitter Distribution Box NAP De 8 Poertos Accessorios Completos Fibre Optic CTO FDB
  • 1*8 Mini Splitter Distribution Box NAP De 8 Poertos Accessorios Completos Fibre Optic CTO FDB
  • 1*8 Mini Splitter Distribution Box NAP De 8 Poertos Accessorios Completos Fibre Optic CTO FDB
  • 1*8 Mini Splitter Distribution Box NAP De 8 Poertos Accessorios Completos Fibre Optic CTO FDB
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-NAP-0308D
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Number KCO-NAP-0308D Material ABS+PC
Color White/ Black/ Customized Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor Capacity 12 Fibers Fo
High Light

fibre termination box

,

outdoor terminal box
Leave a Message
Product Description



NAP De 8 Poertos Accessorios Completos Fibre Optic CTO FDB 1*8 Mini Splitter Distribution Box



- KCO-NAP-0308D outdoor fiber optic distribution box is new design for FTTx project.

- It is designed with 3 port for outdoor cable and 8 port for FTTH drop cable.

- The tray allows to splice maximum 12 fibers.

- It is availble to install the adapter plate with 9 ports of SC port, or also be avanlble to install the LGX splitter with splitter holder.

- Kocent Optec Limited not only can provide the box, also can provice the box uploaded with full accessories. Customer can choose to install adapter and mini typ splitter or pigtail, and also choose LGX box type of splitter.

- Kindly contact with our sales team to get more information about this box.



Description:

- KCO-NAP-0308D outdoor fiber optic distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.

- It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit.

- Meanwhile, it provides solid protection and management for the FTTx network building.

- Mechanical Seal:Good Sealing Performance, Easy Installation, Repeat Installation
- Installation Style: Indoor and outdoor Wall-mounting, Pole-mounting



Features:

- FTTH product, which is special writing terminal box, get many new and practical national patent.
- Suitable for the mirco, insert and cassette splitter installation
- Fit one 1:8 or two 1:4 mirco optical splitter
- Fit optical writing of cable diameter below 16mm and 8 shape or diameter 3 rubber-insulated fiber cable of protection splicing.

- IP65 for outdoor application, can be wall mountable or pole mountable.



Technical Data:

Model KCO-NAP-0308D
Material PC+ABS / ABS
Size 252*210*72mm
PLC 1pcs 1x8 steel tube PLC Splitter / 1*8 LGX box type splitter
Adapter 8pcs SC/UPC or SC/APC Adapters
Color Gray/Black
Net. Weight 1.15kg
Work Temperature -40 ~ +75degree
Max Capacity Splice 12 Fibers (1 trays,12fiber/tray)
Relative Humidity ≤ 85% (+30 degree)
Atmospheric Pressure 70Kpa~106Kpa
Insert Loss ≤ 0.2dB
UPC Return Loss ≥ 50dB
APC Return Loss ≥ 60dB
Insert and Pull out Life ≥ 1000 times
Insulation The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (direct current)
Withstand Voltage

Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U ≥3000V (direct current)



Usage:

- Wall mounting installation,

- Pole mounting installation,

- FTTH pre-installation,

- Filed installation,

- 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable.

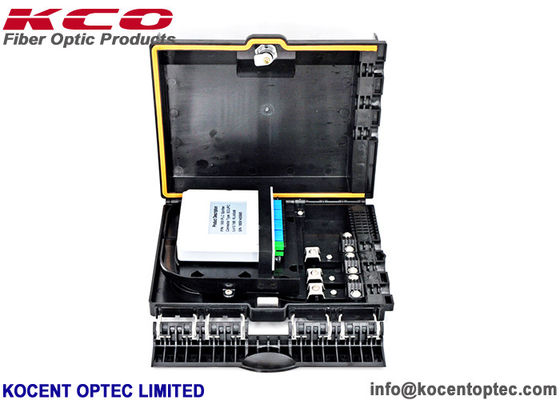

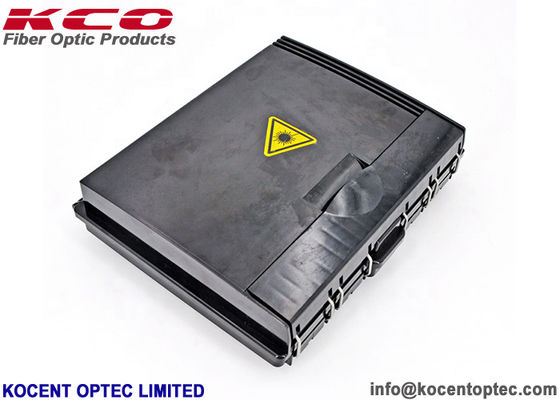

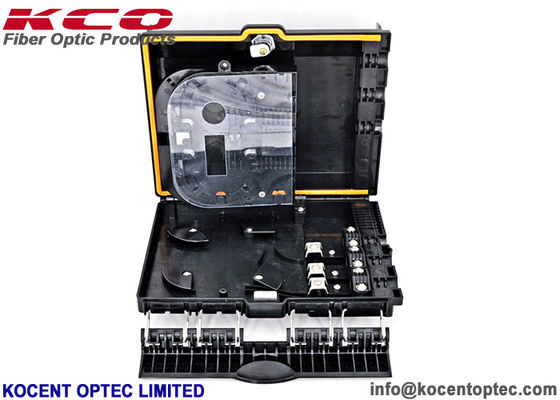

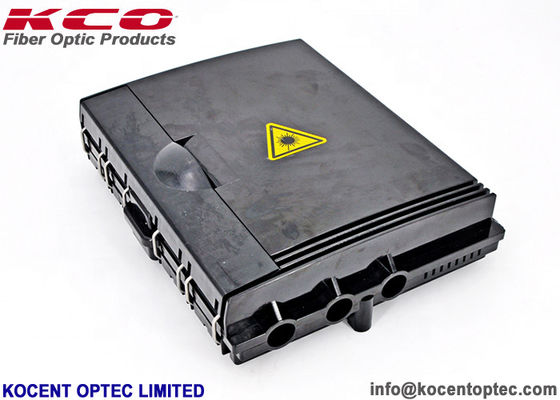

Product photo:

1*8 Mini Splitter Distribution Box NAP De 8 Poertos Accessorios Completos Fibre Optic CTO FDB 0

1*8 Mini Splitter Distribution Box NAP De 8 Poertos Accessorios Completos Fibre Optic CTO FDB 1

1*8 Mini Splitter Distribution Box NAP De 8 Poertos Accessorios Completos Fibre Optic CTO FDB 2

1*8 Mini Splitter Distribution Box NAP De 8 Poertos Accessorios Completos Fibre Optic CTO FDB 3


Ordering information:
Item Capacity Splitter Connector Adapter Logo
KCO-NAP-0308D 12 cores 1*2 SC/UPC SC/UPC KCO
1*4 SC/APC SC/APC customized
1*6 FC/UPC FC/UPC …
1*8 FC/APC FC/APC
... ST/UPC ST/UPC
  LC/UPC LC/UPC
  ... ...


OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.


1*8 Mini Splitter Distribution Box NAP De 8 Poertos Accessorios Completos Fibre Optic CTO FDB 4



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea


1*8 Mini Splitter Distribution Box NAP De 8 Poertos Accessorios Completos Fibre Optic CTO FDB 5
