Vertical FOSC Optical Fibre Cable Joint Closure 6 12 24 Core 1 In 2out KCO-H12-48SZ

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number KCO-H12-48SZ
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T, L/C
Supply Ability 5,000pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Dome Type, Horizontal Type Cable Ports 1 In 2 Out
Cable Diameter 6.0~18.0mm Min. Capacity 6 Cores
Max Capacity 24 Cores Material PPR, ABS, PC, PP
P/N KCO-H12-48SZ Color Black
High Light

fiber optic joint closure

,

fibre optic splice closure

Leave a Message
Product Description



KCO-H12-48SZ IP68 Mini Fiber Optical Splice Enclosure Joint Box 6core 12core 24core Vertical FOSC 1in 2out


Quick detail:
- Name: Mini Size Fiber Optic Splice Closure

- Type: Dome type, or vertical type​

- Part number: KCO-H12-48SZ
- Size: 330*80mm
- Weight: 0.9kg
- Cable entry port: 1 ports
- Cable out port: 2 ports
- Capacity of fibers: 24 cores
- Splice tray number: max.2 trays
- Material: PC/ ABS / PP Plastic
- Cable Diameter: 2.0-18.0mm
- Working temperature: -30℃ to 60℃

- Install way: pole mount, aerial, underground, pipe line, ...

- Application: Outdoor

- Water-proof grade: IP68

- Life time: >25 years


Introduction
- Series of Optical Fiber Cable Joint Closure products selected high quality plastic materials, the scientific and rational formula, injection molding.

- Can effectively prevent the nature of heat, cold, light, oxygen and microbial-induced aging of the material, and has excellent mechanical strength, rugged cable connector box shell and the main structural parts can withstand the harsh nature of the environment in a strong temperature.

- Waterproof, vibration, impact, cable tension, distortion and other protection, can adapt to any country's natural environment to use.

- The box work fine and delicate, high-grade galvanized metal parts processing, structural design careful and reasonable, for the excellent voice, image and data transmission to provide high-quality assurance.

Features
- Great mechnical performance
- Great resisting aging performance
- High airproof,dampproof and resisting,lightning strike performance
- Can be place with the aerial cabal or buried in carth put in the pipeline
- The in and out channels can be two to six

Application

- FTTX (FTTP, FTTH, FTTN, FTTC)
- Local Area Networks (LAN)
- Test Equipment
- CATV
- Analog/Digital Passive Optical Networks (PON)

Main performance
- Stretch: the box body inflated after sealing 60KPa ± 5Kpa, can withstand 1000N axial tension, to maintain 1 min, no change in air pressure;
- Flattening: The box body is sealed and inflated at 60KPa ± 5Kpa, and it can bear the horizontal uniform pressure of 2000N / 10cm. The pipe can withstand 600N / 10cm without change of air pressure.
- Hit: the box after sealing inflatable 60KPa ± 5Kpa, in the box above the 1.6 drop 1 kg steel ball, the impact of three times, the box does not crack, pressure no change;
- Bending: the box after sealing inflatable 60KPa ± 5Kpa, tension load 150N, bending angle ± 45°, 10 cycles, no change in air pressure;
- Reverse: the box after sealing inflatable 60KPa ± 5KPa, torque 50N.m, torsion angle +90°, 10 cycles, no change in air pressure;
- Sealing performance: gas pressure 100kPa ± 5kPa, water bath soak 1 5min, no bubbles to escape, no change after 24hr pressure;
- Insulation resistance: water depth 1.5m, soak 24hr, the insulation resistance ≥ 2 × 104MΩ;
- Resistance to voltage intensity: water depth 1.5m, soak 24hr, 15KV DC 1min without breakdown, no arcing phenomenon;
- High temperature test: the box after sealing inflated 60kPa ± 5kPa, at + 60 ℃ for 2hr, the box without deformation, no leakage;
- Low-temperature test: box sealed inflatable 60kPa ± 5kPa. The temperature at -40 ℃ for 2hr, the box without deformation, no leakage;
- Temperature cycle test: the box after sealing inflatable 60kPa ± 5kPa. -40 ℃ each point constant temperature 2hr, three cycles, the pressure drop amplitude ≤ 5kPa.

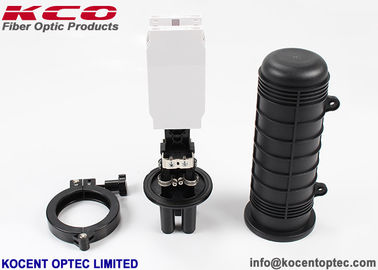

Product pictures:

Vertical FOSC Optical Fibre Cable Joint Closure 6 12 24 Core 1 In 2out KCO-H12-48SZ 0
Vertical FOSC Optical Fibre Cable Joint Closure 6 12 24 Core 1 In 2out KCO-H12-48SZ 1
Vertical FOSC Optical Fibre Cable Joint Closure 6 12 24 Core 1 In 2out KCO-H12-48SZ 2


Specification:

Item KCO-H12-48SZ
Size 330*80mm
Material PC
Weight 0.9kg
Cable Dia. 6-18mm
Fibers/Tray 6 Or 12
Max capacity 24 fiber
Packing 15pcs/carton/83*35*40cm/ 14.00kgs
