Steel 24FO Fiber Optic Distribution Box 24 Core 19'' Fiber Terminal Patch Panel

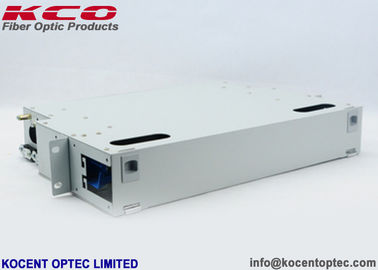

  • Steel 24FO Fiber Optic Distribution Box 24 Core 19'' Fiber Terminal Patch Panel

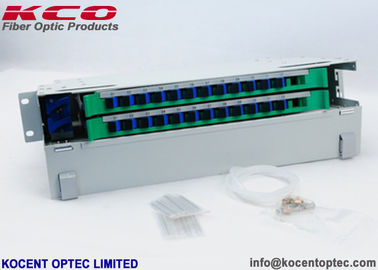

  • Steel 24FO Fiber Optic Distribution Box 24 Core 19'' Fiber Terminal Patch Panel

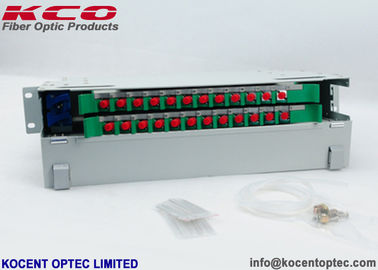

  • Steel 24FO Fiber Optic Distribution Box 24 Core 19'' Fiber Terminal Patch Panel

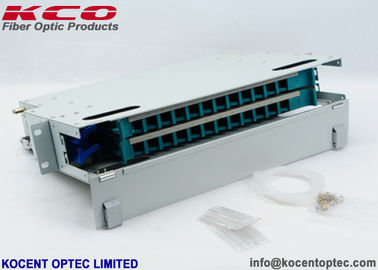

  • Steel 24FO Fiber Optic Distribution Box 24 Core 19'' Fiber Terminal Patch Panel
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-ODFU-24
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector SC, FC, ST, LC, E2000, Etc Application 19' Fiber Optic Distribution Frame
Capacity 24 Fibers Type Distribution Unit
Material Steel Thickness 1.0mm
High Light

optical termination box

,

fibre termination box
Leave a Message
Product Description



24FO Fiber Optic Distribution Box / 24core Fiber Optic ODF Unit / 19'' Fiber Terminal Patch Panel





Description:

- ODF Unit is specially designed for optical fiber communication equipment room. It has the function of cable fixation, protecting fiber cable terminating, wiring, distribution and protection of fiber cores and pigtails.

- ODF unit box, fiber optic splicing and distribution box, also named ODF fiber management system.

- 19"standard installation has good versatility.

- It can be 12 cores, 24 cores, 48 cores, 72 cores, 96 cores and even 144 cores.

- With common adapter port, we can use many type of fiber optic adapter on it such as SC, LC, FC square, ST, E2000, etc.

- It is used for cable inputting, fixing, protecting, and splicing with pigtails. The product is specially designed for fiber distribution in fiber optic communication service center.

- It can be installed in the distribution frame, and can be also assembly with digital distribution unit, and audio distribution unit together in one fiber optic composite cabinet.

- The product is with flexible configuration, easy to install and maintain, convenient to manage.

- It is the necessary device in termination of fiber optic network, and can realize the distribution at the intermediate route.

- The fiber optic distribution Unit is designed to use in the standard 19 inch fiber optic distribution frame.

- The high of unit box can be 1U, 2U, 3U, 4U or 6U. We can supply full loaded with adapter and pigtail of diber optic ditribution unit.


Dimension:

P/N Capacity Dimension Weight
KCO-ODFU-12 12 cores 485x300x45mm 3.9kg
KCO-ODFU-24 24 cores 485x300x75mm 4.7kg
KCO-ODFU-48 48 cores 485x300x140mm 6.9kh
KCO-ODFU-72 72 cores 485x300x198mm 9.2kg
KCO-ODFU-96 96 cores 485x300x252mm 11kg
KCO-ODFU-144 144 cores 485x300x340mm 14kg



Applications:
- FTTX (FTTH, FTTB, FTTO, FTTC, FTTA, ...)
- LAN
- Data centers
- Local area network etc



Features:

- Easy to fix concentrated distribution unit info frame.
- Popular front door with 5mm toughened glass.

- Removable front/rear door and side panels easy to install and maintain.

- Optional two cool fans and four cool fans.

- Wire path on the top and bottom can be closed, and wire holes dimentions can be change at requestments.

- Cable entry on the top cover and bottom panel with adjustable sizes.
- High grade knob and lock.

- Adjustable feet and heavy duty castors are available simultaneously.

- Around 1/3 assembled original volume when flat pack





Operating Conditions:
- Temperature -45~+85
- Relative humidity ≤85%(+30 C)
- Atmospheric pressure 70KPa~106KPa

Qualification:
- Nominal work wave-length:850nm,1310nm,1550nm
- Connectors loss ≤0.2dB
- Insert loss ≤0.2dB
- Return loss >=50dB(UPC),>=60dB(APC)
- Insulation resistance (between frame and protection
- Grounding) >1000MΩ/500V(DC)



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Steel 24FO Fiber Optic Distribution Box 24 Core 19'' Fiber Terminal Patch Panel 0



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
