SM Monomode Fiber Optic Fast Connector FC UPC APC FTTH Quick Field RoHS Approval

Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-FAST-FCA-3.0
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details plastic module, PE bag, Carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type FC/APC, FCAPC Cable Available 2x3.0 Ftth Cable, 0.9mm, 3.0mm Cable
Color Black Wave Length 1260~1650nm
Application FTTH, CATV Fiber Mode Single Mode, SM 9/125
High Light

ftth fast connector

,

field installable fiber optic connector

Leave a Message
Product Description



FTTA FTTB FTTO Single mode Fiber Optic FC Fast Connector For FTTH Drop Cable



Descriptions:

- Quick Assembly Connector (also named “ No-Polish Connector ” , “Pre-polish Connector” or “ Fast Connector ”) is an easy-to-install device.

- No tool or jig is required. It is universal for 250um /900um / 2.0mm / 3.0mm / Flat Cable.

- It was designed for fast termination with pre-polished connector.

- Using V groove technology, it requires no epoxy. With transparent body, the connecting result can be seen by Fiber Checker immediately.

- This is an ideal solution, either for outside plant or inside a building.

- It adopts the latest fiber formed technology.
- All the optical and mechanical index meet the patch cord standard, to achieve to make the patch cord via mechanical cold junction, it change the traditional splice opinion, offer the powerfull support for FTTx.





Quick detail:

- Name: FC/APC FTTH Fiber Optic Fast Connector

- P/N: KCO-FAST-FCA-3.0

- Connector: FC

- Ferrule end-face: APC

- Ferrule size: 2.5mm

- Structure: Pre-polished, Un-polished

- Fiber: G652D G657A G657B3

- Cable diameter: 2.0/3.0mm indoor fiber optic cable, FTTH drop indoor/outdoor cable



Application:

- FTTx (FTTA, FTTB, FTTH, FTTO, ...)

- CATV

- Metro

- Test equipment

- Premise installation

- Active device termination

- Data processing networks
- Telecommunication networks
- Local Area Networks (LANs)
- Wide Area Networks(WANs)

- Army field operating work.


Features:

- No special assembling tool.

- Quick and easy for assembling.

- Reusable and repeat operation times are up to 300.

- Integrated protection of the casing to prevent the connector form impact.

- Can be installed in two minutes.

- Power-save, as it does not need hot melting.

- Without any gluing and polishing process.





About fiber optic fast connectors:

- Fiber optic fast connector also call fiber optic quick connector, fiber optical field assembly connector, optical fiber fast connector, optic fibre quick connector, fibre quick connector, optical quick connector.

- There are available in SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC. Use for 0.9mm, 2.0mm, 3.0mm indoor fiber optic cable and 2x3.0mm fiber optic FTTH cable.

- All our Fiber Optic Fast Connectors meet RoHS Compliant, and 100% test Insert loss before shipment.



Products picture:

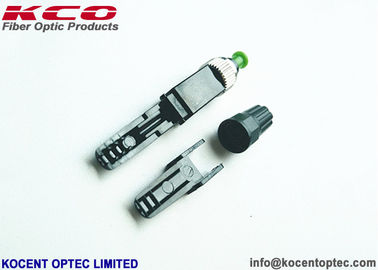

SM Monomode Fiber Optic Fast Connector FC UPC APC FTTH Quick Field RoHS Approval 0

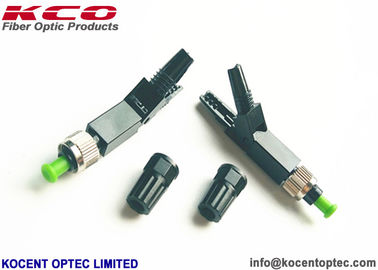

SM Monomode Fiber Optic Fast Connector FC UPC APC FTTH Quick Field RoHS Approval 1

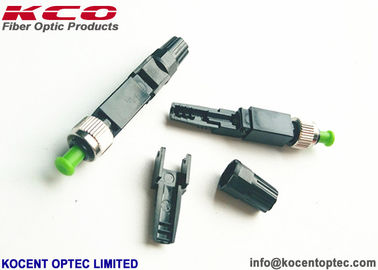

SM Monomode Fiber Optic Fast Connector FC UPC APC FTTH Quick Field RoHS Approval 2



Specifications:

Applicable for Drop cable. Indoor cable(0.9/2.0/3.0mm)
Optical fiber diameter 125μm
Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB
Return loss ≥50dB
Fastening strength of naked fiber >5N
Fastening strength of naked fiber holder >10N
Tensile strength >50N
Using temperature -40°C~+75°C
On-line tensile strength (20N) IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times) IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times) IL ≤ 0.5dB RL ≤ 5dB



Delivery Time:

- Material Preparation Time: 3 days (or inventory)

- Production & Assembly Time 7 days

- Testing & Packaging Time: 2 days

- Total Delivery Time: 12 days in 50,000pcs for safe delivery lead time.

- The faster delivery could be negotiable.
