MPO MTP Patch Panel Terminal Box Hyperdensity 24fo KCO-MPO-961U
Place of Origin | Guangdong, China |
---|---|
Brand Name | KCO |
Certification | RoHS, ISO9001 |
Model Number | KCO-MPO-961U-DR |
Minimum Order Quantity | Negotiation |
Price | Negotiation |
Packaging Details | PE bag, carton box, wooden pallet |
Delivery Time | 2~7 days after get payment |
Payment Terms | Western Union, T/T, L/C |
Supply Ability | 50,000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xConnector 1 | MPO, MTP | Connector 2 | LC Duplex |
---|---|---|---|
Size | 480x245x1U | Capacity | 96 Cores |
Color | Black, Beige | Length | 0.5m, 0.8mm, 1.0m, 1.5m, Customized |
Module Type | Fix Type | Module Core No. | 12fo, 24fo |
Logo Print | Customized | OEM Service | Yes |
High Light | MTP Patch Panel Terminal Box,Hyperdensity Patch Panel Terminal Box,24fo Fiber Optic Termination Box |
KCO-MPO-961U Hyperdensity 19inch Indoor MPO MTP Patch Panel Terminal Box
Kocent Optec Limited Product Catalog:
- Fiber Optic Cable: outdoor cable, indoor cable, ftth drop cable.
- Fiber Optic Fast Connnector: SC, FC, LC, ST
- Fiber Optic Splitter: PLC Splitter, FTB Coupler, Multimode splitter.
- Fiber Optic Splice Closure: Inline type, Dome type, Aerial type, Wall mount type, Splitter Splice closure...
- Fiber Optic Terminal Box: Distribution Frame, Cross Cabinet, ODF Unit, 19'' Patch panel, Indoor terminal box, Outdoor terminal box, FDB, FAT, CTO, Splitter Box, ...
- Fiber Optic Patch Cord: indoor patch cord, ftth drop patch cord, Field Fiber Optic Patch Cord, Outdoor Patch Cord.
- MPO MTP Solution product: MPO Patch Cord (8fo, 12fo, 16fo, 24fo, 32fo), MTP Patch cable, MPO MTP attenuator, MPO MTP loop back, MPO MTP Adapter, MPO MTP patch panel.
Quick informations:
- Name: 19'' MPO MTP Patch Panel
- Capacity: Max. 96 core
- Maximum module number: 4pc
- Module core number: Max 24fo
- Optical port: LC duplex, MPO
- Cable length: 0.3m
- Patch panel size: 480x245x1U(mm)
- Color: black, Beigi, White, customized
- Logo printing: customized
- Thickness: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm
Features:
- Made by strength steel tape.
- 19" standard size, Fit with 19'' Rack type Cabinet, easy to install.
- Hyperdensity, 1U rack can install 96fiber, save more space.
- Roomy space ensure fiber bent ratio.
- Provides a complete system solution for connectivity.
- Well cable management, cable can be distinguished easily.
- Light weight, strong strength, good anti-shocking and dustproof.
- Provide higher patch field density in fewer rack units saving valuable space.
- Assures flexibility and ease of network deployment and moves, adds, and changes.

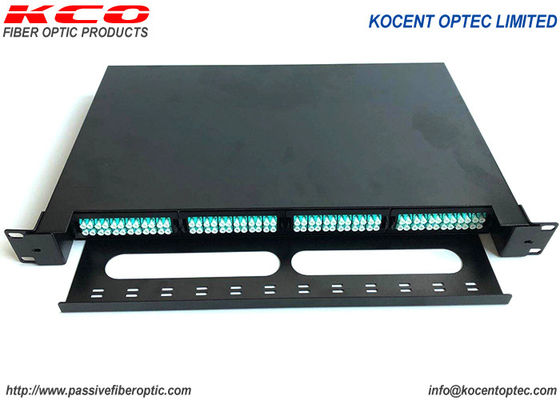

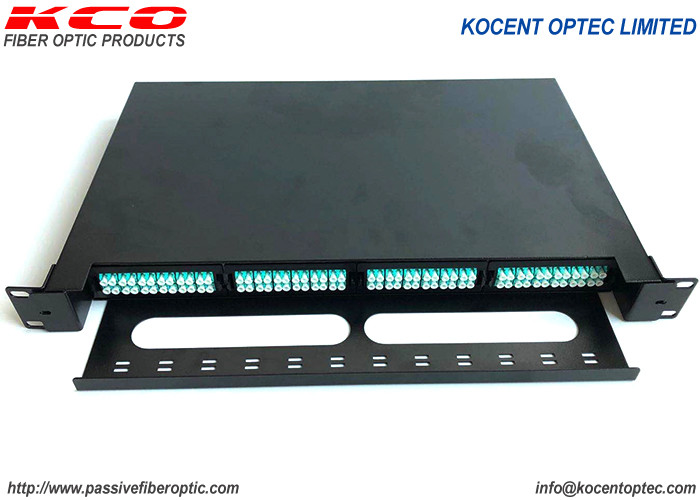

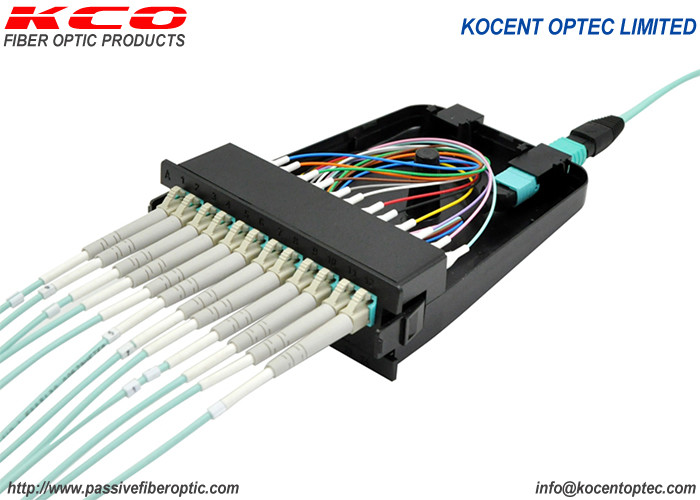

Product photo:
MTP/MPO Connector Specifications:
Type | Single Mode | Single Mode | Multi Mode | |||
(APC Polish) | (UPC Polish) | (PC Polish) | ||||
Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. | |||
Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. | |||
Max. Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
Low Loss | Low Loss | Low Loss | ||||
≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB | |
Return Loss | ≥60 dB | ≥60 dB | NA | |||
Durability | ≥500 times | ≥500 times | ≥500 times | |||
Operating Temperature | -40℃~+80℃ | -40℃~+80℃ | -40℃~+80℃ | |||
Test Wavelength | 1310nm | 1310nm | 1310nm | |||
Insert-pull test | 1000 times<0.5 dB | |||||
Interchange | <0.5 dB | |||||
Anti-tensile force | 15kgf |
Descriptions:
Fiber Capacity of panel | Max 96fo |
Panel Connector | LC duplex |
Type | Drawting |
Dimension | 19''1U |
Material | Cold Rolled Steel or Aluminum |
Storage Temperature | -45~+65℃ |
Thickness | 0.6 0.8 1.0 1.2 1.5mm |
Accessories | Cable ties, mounting ear screws, and spiral wrap tube |
MPO type |
SM: G652D, G657A1, G657A2 |
Cable Cover | LSZH |
Length | 0.3m, 0.5m |
