12fo 24fo MPO Cassette SM OM3 OM4 OM5 MTP Modules For Patch Panel

Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number KCO-MPO-Module
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 MPO, MTP Connector 2 LC Duplex
Size 480x245x1U Capacity 24 Cores
Color Black Length 0.2m, 0.3m
Module Type Fix Type Module Core No. 12fo, 24fo
Logo Print Customized OEM Service Yes
High Light

24fo MPO Cassette

,

SM OM3 MPO Cassette

,

Patch Panel MTP Modules

Leave a Message
Product Description



12fo 24fo SM OM3 OM4 OM5 MPO Cassette MTP Modular Box For Patch Panel



Description:

- MTP/MPO Cassette Modules provide secure transition between MTP/MPO and LC or SC discrete connectors.They are used to interconnect MTP/MPO backbones with LC or SC patching.
- Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes.Cassettes can be mounted in 1U, 2U or 3U 19" multislot chassis.
- MTP/MPO Cassettes contain factory controlled and tested MTP/MPO-LC fanouts to deliver optical performance and reliability.Low loss MTP/MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.

- The front cassette is equipped with a 12-port LC duplex adapter, and the rear cassette is equipped with a 2-port for MPO adapter.

- Maximum can do 24 fibers.
- Multiple polarities to choose.
- Plug-and-play modular architecture enables rapid deployment of data center fiber infrastructure and improved troubleshooting, reconfiguration, reconfiguration, and migration of fiber optic cables.
- 100% terminated in the factory and strictly tested for connection to ensure minimum insertion loss, fully meeting the demanding high-speed network.


Features:
- Made by strength steel tape.

19" standard size, Fit with 19'' Rack type Cabinet, easy to install.

- Hyperdensity, 1U rack can install 96fiber, save more space.

- Roomy space ensure fiber bent ratio.
- Provides a complete system solution for connectivity.
- Well cable management, cable can be distinguished easily.
- Light weight, strong strength, good anti-shocking and dustproof.
- Provide higher patch field density in fewer rack units saving valuable space.
- Assures flexibility and ease of network deployment and moves, adds, and changes.

Product photo:

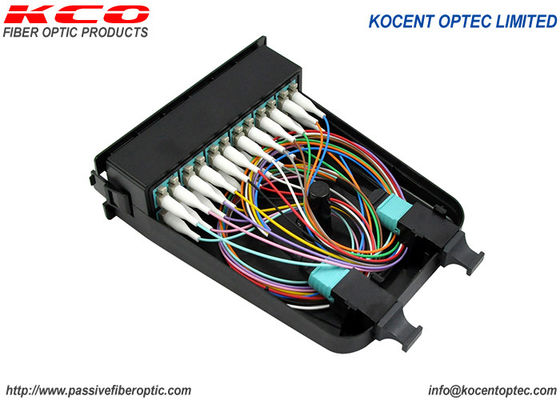

 12fo 24fo MPO Cassette SM OM3 OM4 OM5 MTP Modules For Patch Panel 0






MTP/MPO Connector Specifications:

Type Single Mode Single Mode Multi Mode
  (APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Max. Insertion Loss Elite Standard Elite Standard Elite Standard
  Low Loss   Low Loss   Low Loss
  ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃~+80℃ -40℃~+80℃ -40℃~+80℃
Test Wavelength 1310nm 1310nm 1310nm
Insert-pull test 1000 times<0.5 dB
Interchange <0.5 dB
Anti-tensile force 15kgf



Descriptions:

Fiber Capacity of panel Max 96fo
Panel Connector LC duplex
Type Drawting
Dimension 19''1U
Material Cold Rolled Steel or Aluminum
Storage Temperature -45~+65℃
Thickness 0.6 0.8 1.0 1.2 1.5mm
Accessories Cable ties, mounting ear screws, and spiral wrap tube
MPO type

SM: G652D, G657A1, G657A2
MM: OM1, OM2, OM3, OM4, OM5

Cable Cover LSZH
Length 0.3m, 0.5m



Kocent Optec Limited Product Catalog:
- Fiber Optic Cable: outdoor cable, indoor cable, ftth drop cable.

- Fiber Optic Fast Connnector: SC, FC, LC, ST
- Fiber Optic Splitter: PLC Splitter, FTB Coupler, Multimode splitter.

- Fiber Optic Splice Closure: Inline type, Dome type, Aerial type, Wall mount type, Splitter Splice closure...

- Fiber Optic Terminal Box: Distribution Frame, Cross Cabinet, ODF Unit, 19'' Patch panel, Indoor terminal box, Outdoor terminal box, FDB, FAT, CTO, Splitter Box, ...
- Fiber Optic Patch Cord: indoor patch cord, ftth drop patch cord, Field Fiber Optic Patch Cord, Outdoor Patch Cord.
- MPO MTP Solution product: MPO Patch Cord (8fo, 12fo, 16fo, 24fo, 32fo), MTP Patch cable, MPO MTP attenuator, MPO MTP loop back, MPO MTP Adapter, MPO MTP patch panel.


Relation Product:

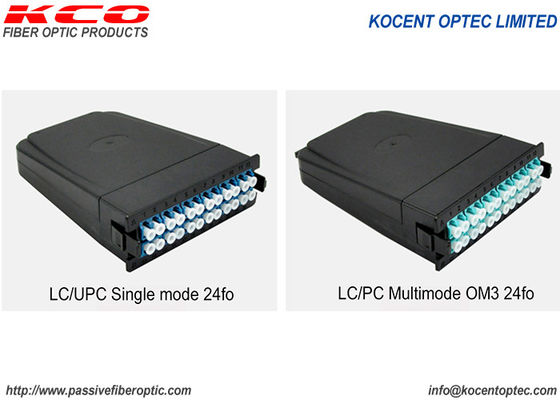

12fo 24fo MPO Cassette SM OM3 OM4 OM5 MTP Modules For Patch Panel 1
