Fiber Optic Polishing Jig Fixture Tool Patch Cord Grinding Machine

Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification RoHS, ISO
Model Number KCO-PM-JIG
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details paper bag, carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T, Western Union, L/C
Supply Ability 200,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-PM-JIG Grade 0.3dB, 3D
Polishing Scope SC, FC, ST, LC, E2000, MRTJ, ... Disk Size 179mm
Connector 24, 36, 48 Connectors Machine Corner Pressure Polishing Machine
High Light

Grinder Machine Jig Fixture Tool

,

Polishing Jig Fixture Tool

,

Patch Cord Fixture Jigs

Leave a Message
Product Description

Grinding Fiber Optic Jig For Corner Pressure Patch Cord Poshing Machine​



Description:

- Designed for LC, SC, FC, ST, E2000, SMA, MPO, MTP, ... connectors.
- Easy to change, simple and flexible to operate.
- High efficiency, polishing 36 to 48 connectors in one cycle. The first pass yield for end face quality reach 98%~100%
- The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC),
- APC return loss ≥60dB , UPC return loss ≥55dB , Insertion loss ≤0.20dB ( typical)
- The accessories on the fixture can be replaced, Greatly extend the service life.
- Fiber polishing fixture using high quality steel with heated treat, the hardened steel S136 providing long service life.

- This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.



Application:

- Mainly used for polishing fiber optic connector, patchcord, ferrule end face;
- Or non-standard materials like metal, glass, ceramic end face polishing;
- Or precision parts end face polishing.

- Made with high quality, by using hardened steel;

- Adopt central pressurized way to polish, more stable;
- The plugs of connector polishing jig can be interchanged, prolong the service life of grinding plate;
- This fiber polishing jig adopt independent pressurized way, eliminate ferrules show the different length effects on polishing;
Note: All kinds of fiber polishing jigs/Polishing Module can be customized according to customers' requirement.



Features:

1. Special designed for LC, SC, FC, ST, E2000, SMA, MPO, MTP, ... connector polishing.
2. 36 to 48 connectors can be placed for polishing at the same time.
3. Parts may be replaced on the jig, it is effective for polishing cost saving.
4. Both left-handles and right-handles are provided to suit operation need.
5. Water inlet design of the jig comply with the outlet of polishing machine of KCO-PM3600
6. Easy to expel the dust out during polishing operation





Product pictures:

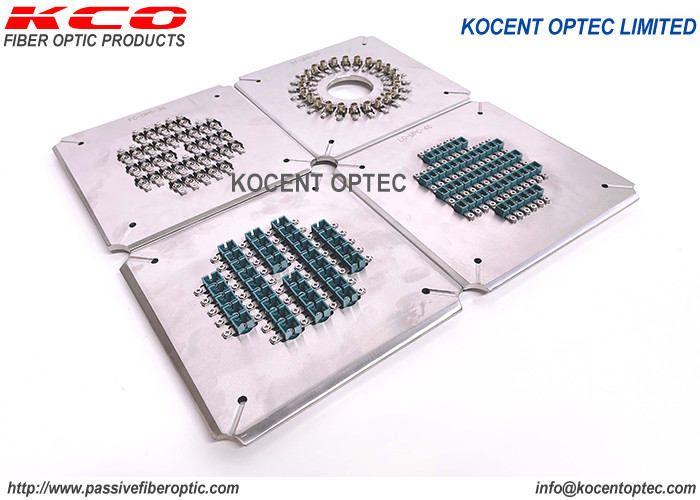

Fiber Optic Polishing Jig Fixture Tool Patch Cord Grinding Machine 0

Fiber Optic Polishing Jig Fixture Tool Patch Cord Grinding Machine 1



Other relation machines:



Fiber Optic Polishing Jig Fixture Tool Patch Cord Grinding Machine 2

Fiber Optic Polishing Jig Fixture Tool Patch Cord Grinding Machine 3

Fiber Optic Polishing Jig Fixture Tool Patch Cord Grinding Machine 4



Specification

Product Size
174mm*174mm*5.1mm
Wet weight
About 1.2kg
Application
Fixed FC / APC Fiber Connector Polished
Suitable Fiber Connector Polisher
Four-corner pressure optical fiber connector polishing machine
Material
Hardened stainless steel2316



Applications:

Product Type Application
D

· Lapping for Fiber optic connector, fiber array, glass pig tail(angel removal, rough grinding, medium polishing, fine finishing)

· Polishing for magnetic heads and hard disks

· Lapping and polishing for optical glasses, optical crystal , LED

· Lapping and polishing for Semiconductor wafer (gallium arsenide, indium phosphide etc.)

· Edge polishing for silicon wafer

SC

· Epoxy and glass removal

· Lapping and polishing for plastic ferrules

· Fine finishing and polishing for magnetic heads

AO

· Polishing for fiber optical connectors

· Polishing for silicon wafer used in Solar cells

· Polishing for hard disks

· Polishing for ITO

· Lapping and polishing for optical crystal

CO

· The final polishing for fiber optical connectors

· Polishing for optical devices

SO · The final super-precise polishing of optical fiber connector



Specifications:

Type D(Diamond) SC (Silicon Carbide) AO(Aluminum Oxide) CO(Cerium Oxide) SO(Silicon Oxide)
Grit Size/um 30 Green Light Green Green
20       White
16       White
15 Yellow-Green Tawny Light Green Brown
12       Yellow
9 Blue Orange Gray-green Blue
6 Yellow
5     Gray-green White
3 Pink Tan Pink & White
2     Gray-green Bright Green
1 off-white Lavender Gray-green Blue
0.5 off-white Brown-yellow   White White
0.3       White Dark Red
0.2 Grey
0.1 Light Brown   White
0.02           Transparent
0.01           Transparent
Recommended Polishing Medium Water/Oil Water/Oil Water/Oil SOQ-12D Water
Standard Size

Disk:Φ70mm,

Φ110mm,

Φ127mm(5inch),

Φ203mm(8inch)

Sheet:

114mm*114mm,

152mm*152mm (6inch),

228*228mm (9inch)

Note: Other film sizes are available upon request.



Fiber Optic Patch Cord Production Process:

Fiber Optic Polishing Jig Fixture Tool Patch Cord Grinding Machine 5



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
