Fiber Optic Connector Polishing Jig / FC UPC APC For Patch Cord Grinding Machine
| Place of Origin | China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | RoHS, ISO |
| Model Number | KCO-JIG-FC-36 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | paper bag, carton box |
| Delivery Time | 2~5 days after get payment |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 200,000 pcs/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| P/N | KCO-JIG-FC-36 | Grade | 0.3dB, 3D |
|---|---|---|---|
| Polishing Scope | FC PC APC | Disk Size | 179mm |
| Connector | 36 | Machine | Corner Pressure Polishing Machine |
| High Light | Patch Cord Polishing Jig,Fiber Optic Connector Polishing Jig,UPC APC Grinder Sharpening Jig |
||
Product Description

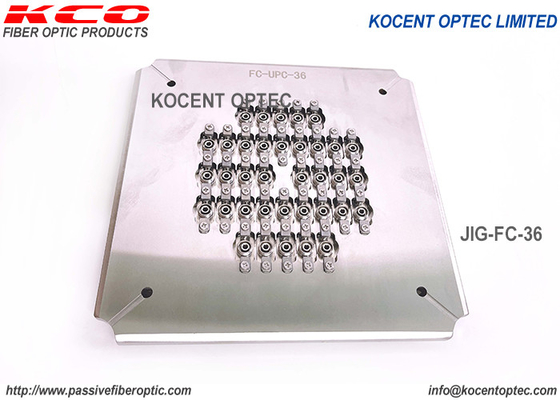

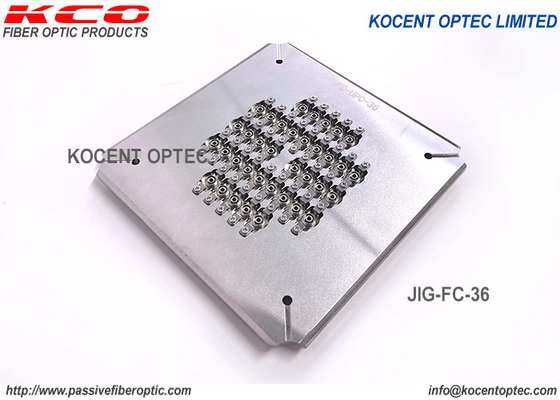

FC UPC APC Fiber Optic Connector Polishing Jig For Patch Cord Grinding Machine
Description:
- The fiber optic polishign jig is is one of the indispensable accessories for the production of fiber optic patch cords.
- Designed for FC connectors, available for PC and APC with 24 or 36 positions of connector.
- Easy to change, simple and flexible to operate.
- High efficiency, polishing 36 tconnectors in one cycle. The first pass yield for end face quality reach 98%～100%
- The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC),
- APC return loss ≥60dB , UPC return loss ≥55dB , Insertion loss ≤0.20dB ( typical)
- The accessories on the fixture can be replaced, Greatly extend the service life.
- Fiber polishing fixture using high quality steel with heated treat, the hardened steel S136 providing long service life.
- This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.
Feature:
- Designed for corner pressure polishing machine.
- Using a new I.P.C jig technology (every ferrule is pressed singly) and making the finished yield rate much higher.
- Dual APC & UPC polishing and Accommodating most styles of connectors.
- High efficiency to deal with all kinds of connectors.
-The polisher was made by high quality stainless steel with heat treatment and it is high accuracy and durability.
- Quick to change jigs,
- Easy and flexible to operate
- Super centering accuracy
- Excellent connector end-face polishing quality
Product pictures:
Application:
- Mainly used for polishing fiber optic ferrule end face;
- Or precision parts end face polishing.
- Made with high quality, by using hardened steel;
- Adopt central pressurized way to polish, more stable;
- Or non-standard materials like metal, glass, ceramic end face polishing;
- The plugs of connector polishing jig can be interchanged, prolong the service life of grinding plate;
- This fiber polishing jig adopt independent pressurized way, eliminate ferrules show the different length effects on polishing;
Note: All kinds of fiber polishing jigs/Polishing Module can be customized according to customers' requirement.
Other relation machines:
Specification
Specification
| Product Size | 174mm*174mm*5.1mm | |||
| Wet weight | About 1.2kg | |||
| Application | Fixed FC / APC Fiber Connector Polished | |||
| Suitable Fiber Connector Polisher | Four-corner pressure optical fiber connector polishing machine | |||
| Material | Hardened stainless steel2316 | |||
Applications:
| Product Type | Application |
| D |
· Lapping for Fiber optic connector, fiber array, glass pig tail(angel removal, rough grinding, medium polishing, fine finishing) · Polishing for magnetic heads and hard disks · Lapping and polishing for optical glasses, optical crystal , LED · Lapping and polishing for Semiconductor wafer (gallium arsenide, indium phosphide etc.) · Edge polishing for silicon wafer |
| SC |
· Epoxy and glass removal · Lapping and polishing for plastic ferrules · Fine finishing and polishing for magnetic heads |
| AO |
· Polishing for fiber optical connectors · Polishing for silicon wafer used in Solar cells · Polishing for hard disks · Polishing for ITO · Lapping and polishing for optical crystal |
| CO |
· The final polishing for fiber optical connectors · Polishing for optical devices |
| SO | · The final super-precise polishing of optical fiber connector |
Specifications:
| Type | D(Diamond) | SC (Silicon Carbide) | AO(Aluminum Oxide) | CO(Cerium Oxide) | SO(Silicon Oxide) | ||
| Grit Size/um | 30 | Green | Light Green | Green | |||
| 20 | White | ||||||
| 16 | White | ||||||
| 15 | Yellow-Green | Tawny | Light Green | Brown | |||
| 12 | Yellow | ||||||
| 9 | Blue | Orange | Gray-green | Blue | |||
| 6 | Yellow | ||||||
| 5 | Gray-green | White | |||||
| 3 | Pink | Tan | Pink & White | ||||
| 2 | Gray-green | Bright Green | |||||
| 1 | off-white | Lavender | Gray-green | Blue | |||
| 0.5 | off-white | Brown-yellow | White | White | |||
| 0.3 | White | Dark Red | |||||
| 0.2 | Grey | ||||||
| 0.1 | Light Brown | White | |||||
| 0.02 | Transparent | ||||||
| 0.01 | Transparent | ||||||
| Recommended Polishing Medium | Water/Oil | Water/Oil | Water/Oil | SOQ-12D | Water | ||
| Standard Size |
Disk:Φ70mm, Φ110mm, Φ127mm(5inch), Φ203mm(8inch) |
||||||
|
Sheet: 114mm*114mm, 152mm*152mm (6inch), 228*228mm (9inch) |
|||||||
| Note: Other film sizes are available upon request. | |||||||
Fiber Optic Patch Cord Production Process:
