LGX Module G657A Fiber Optic Splitter FTTH GPON PON 1 x 64 Port

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number PLC-LGX-1x64-SCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Type Single Mode G657A1 IL 20.5dB
RL >55dB Directivity 55dB
PDL 0.3dB Cable Diameter 0.9mm, 1.6mm, Customized
High Light

PLC Optical Splitter

,

ABS Box PLC Splitter

Leave a Message
Product Description

LGX Module G657A Fiber Optic PLC Splitter FTTH GPON PON 1 x 64 Port





Fiber optic PLC Splitter Features:

- Low insertion loss.

- Low Polarization Dependent Loss.

- Excellent Environmental Stability.

- Excellent Mechanical Stability.

- Meet Telcordia GR-1221 and GR-1209.



Fiber optic PLC Spltiter quick informations:

- Type: LGX cassttle module

- Port Configuration: 1x64, 1*64

- Connector: SC/UPC

- Adapter: SC/UPC
- Cable length: 1.0m
- Cable Diameter: 0.9mm, 2.0mm, 3.0mm, 1.6mm, etc
- Label: customized
- Fiber type: single mode G657A fiber or customized



Fiber optic PLC Splitter Applications:

- Fiber to The Point (FTTX).

- Fiber to The Home (FTTH).

- Passive Optical Networks (PON).

- Gigabit Passive Optical Networks (GPON).

- Local Area Networks (LAN).

- Cable Television (CATV).

- Test Equipment.



Fiber optic PLC Splitter Descriptions:

Fiber optic Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

The standard LGX mental box housing provides a plug-and-play method for integration in the network, which eliminates any risks during installation. It eliminates the need for splicing machines on the field and there is no need for skilled personnel for deployement.

1x64 LGX cassttle module fiber optic plc splitte is also called 1*64 LGX module optical fiber plc splitter, plc fiber optic splitter, plc optical fiber splitter, fiber optical splitter, plc fiber splitter, plc optical splitter.

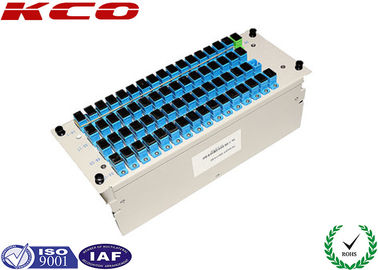

Fiber optic PLC Splitter Product picture:

LGX Module G657A Fiber Optic Splitter FTTH GPON PON 1 x 64 Port 0



Fiber optic PLC Splitter Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1

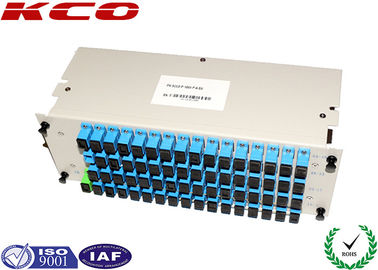

Fiber optic PLC Splitter Packing:

LGX Module G657A Fiber Optic Splitter FTTH GPON PON 1 x 64 Port 1



LGX Cassette 1x64 fiber optic PLC splitter OEM and ODM service is always already!



Kocent Optec Limited is one of the largest and best LGX Cassette 1x64 fiber optic PLC splitter manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized LGX Cassette 1x64 fiber optic PLC splitter in stock with our factory. Also, free sample is also available if necessary.
