OM3 LC LC Duplex Fiber Optic Patch Cord / Armoured Fibre Optic Cable

China OM3 LC LC Duplex Fiber Optic Patch Cord / Armoured Fibre Optic Cable supplier
OM3 LC LC Duplex Fiber Optic Patch Cord / Armoured Fibre Optic Cable supplier OM3 LC LC Duplex Fiber Optic Patch Cord / Armoured Fibre Optic Cable supplier OM3 LC LC Duplex Fiber Optic Patch Cord / Armoured Fibre Optic Cable supplier OM3 LC LC Duplex Fiber Optic Patch Cord / Armoured Fibre Optic Cable supplier

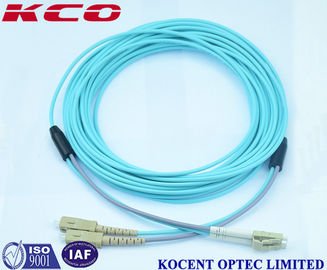

Large Image :  OM3 LC LC Duplex Fiber Optic Patch Cord / Armoured Fibre Optic Cable

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO
Certification: ISO9001, RoHS
Model Number: LC-LC-OM3DX-3.0-xM-armored

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PE bag, carton box, wooden roll
Delivery Time: 2~5 days after get payment
Payment Terms: Western Union, T/T, L/C
Detailed Product Description
Connector 1: LC Connector 2: LC
Core: Duplex, 2 Cores Insertion Loss: 0.2dB
Return Loss: 55dB Cable Cover Material: Armored, PVC, LSZH

OM3 LC LC Duplex Fiber Optic Patch Cables / Armoured Fibre Optic Cable

KOCENT OPTEC LIMITED supply OEM and ODM service for all type of fiber optic patch cord. Special in armored fiber optic patch cord and OM3, OM4 patch cord. With completed of production equipment and closed of QC process, we supply Telecom standard of goods to our customer.
If your company want to show your LOGO on the cable or label, we can do it too.
Quick informations:
Connector 1: LC/UPC
Connector 2: LC/UPC, SC/UPC, FC/UPC, ST/UPC, E2000, ...
Mode: OM3
Fiber number: Simplex, Duplex, 2 cores, 4 cores, 6 cores, 8 cores, 12 cores, 24 cores, ...
Fan out Diameter: 3.0mm
Cover: Armored cable
Length: customized
IL: 0.15dB
RL: 55dB

Fiber optic patch cable Applications:
- CATV (Cable Television)
- Telecommunication networks
- Computer fiber networks and fiber test equipment
- Communication rooms
- FTTH (Fiber to The Home)
- LAN (Local Area Network)
- FOS (fiber optic sensor)
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment
- Defense combat readiness, etc.
 Fiber optic patch cable Characteristics​:
- Low insertion loss;
- High return loss;
- Good repeatability;
- Good interchange;
- Excellent environmental adaptability.

About fiber optic patch cable:
- Armored fiber optic patch cable uses flexible stainless steel tube inside the outer jacket as the armor to protect the fiber glass inside. It retains all the features of standard patch cord, but is much stronger. It will not get damaged even if stepped by an adult and they are rodent-resistant.
- A fiber optic patch cable is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunicationequipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box.
- Single-mode fiber optic patch cable is generally yellow, with a blue connector, and a longer transmission distance.
- Multi-mode fiber optic patch cable is generally orange or grey, with a cream or black connector, and a shorter transmission distance.
- Mode Conditioning Patch Cable is required where Gigabit 1000 Base-LX routers and switches are installed into existing multimode cable plants. The transceiver modules launch only singlemode 1300 nm signals but the existing network is built with multimode cables.

About single mode cables:
- Single Mode fiber optic cable has a small diametral core that allows only one mode of light to propagate. Because of this, the number of light reflections created as the light passes through the core decreases, lowering attenuation and creating the ability for the signal to travel further. This application is typically used in long distance, higher bandwidth runs by Telcos, CATV companies, and Colleges and Universities.

About multi mode cables:
- Multimode fiber optic cable has a large diametral core that allows multiple modes of light to propagate. Because of this, the number of light reflections created as the light passes through the core increases, creating the ability for more data to pass through at a given time. Because of the high dispersion and attenuation rate with this type of fiber, the quality of the signal is reduced over long distances. This application is typically used for short distance, data and audio/video applications in LANs.
- Multi-mode fibers are described by their core and cladding diameters. Usually the diameter of the multi-mode fiber is either 50/125 µm or 62.5/125 µm. At present, there are four kinds of multi-mode fibers: OM1, OM2, OM3 and OM4.
- OM1 cable typically comes with an orange jacket and has a core size of 62.5 micrometers (µm). It can support 10 Gigabit Ethernet at lengths up 33 meters. It is most commonly used for 100 Megabit Ethernet applications.
- OM2 also has a suggested jacket color of orange. Its core size is 50µm instead of 62.5µm. It supports 10 Gigabit Ethernet at lengths up to 82 meters but is more commonly used for 1 Gigabit Ethernet applications.
- OM3 has a suggested jacket color of aqua. Like OM2, its core size is 50µm. OM3 supports 10 Gigabit Ethernet at lengths up to 300 meters. Besides OM3 is able to support 40 Gigabit and 100 Gigabit Ethernet up to 100 meters. 10 Gigabit Ethernet is its most common use.
- OM4 also has a suggested jacket color of aqua. It is a further improvement to OM3. It also uses a 50µm core but it supports 10 Gigabit Ethernet at lengths up 550 meters and it supports 100 Gigabit Ethernet at lengths up to 150 meters.



Fiber optic patch cable Product pictures:

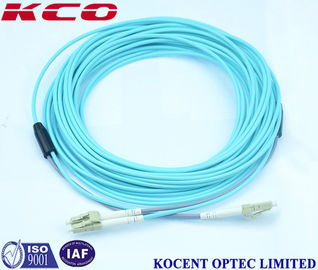

OM3 LC LC Duplex Fiber Optic Patch Cord / Armoured Fibre Optic Cable

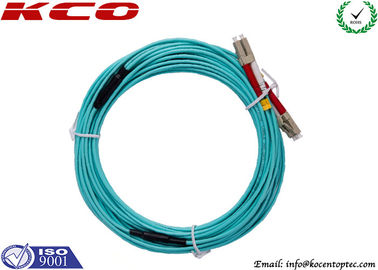

OM3 LC LC Duplex Fiber Optic Patch Cord / Armoured Fibre Optic Cable

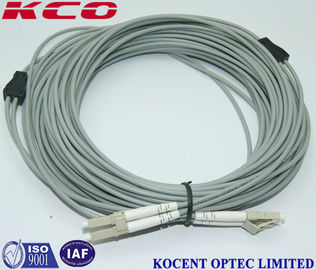

OM3 LC LC Duplex Fiber Optic Patch Cord / Armoured Fibre Optic Cable

    OM3 LC LC Duplex Fiber Optic Patch Cord / Armoured Fibre Optic Cable
    OM3 LC LC Duplex Fiber Optic Patch Cord / Armoured Fibre Optic Cable
    OM3 LC LC Duplex Fiber Optic Patch Cord / Armoured Fibre Optic Cable

    Fiber optic patch cable Specifications:

    TypeStandard,Master
    Connector StyleLC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, ...
    Duplex MTRJ/Female, MTRJ/Male
    Fiber Type9/125 SMF-28 or equivalent (Single mode) OS1
50/125, 62.5/125 (Multimode) OM2&OM1

    50/125 10G (Multimode) OM3
    G652 (all type), G657(all type), G655(all type)
    Cable TypeSimplex, Duplex (Zip cord)
Φ3.0mm,
    Φ2.0mm

    Φ0.9mm
    buffered fiber
    Cable Cover materialPVC
    LSZH
    Armored
    Water-proof
    FTTH
    Outdoor
    Return Loss
(For Single mode) ≤ 0.15dB (For Single mode Master)
    ≤ 0.30dB (For Single mode Standard)

    ≤ 0.30dB (For Multi mode)

    Tested by JDS RM 3750
    UPC ≥ 50dB

    SPC ≥ 55dB

    APC ≥ 60dB (typ.65dB)

    Tested by JDS RM3750
    Repeatability±0.1dB
    Operating Temperature-40°C to 85°C


    Fiber optic patch cable Ordering informations:

    Fiber Optic Patch Cord:FC/APC-SC/UPC/SM/Ø3.0L Meter/DX
    (Number)



    Plating materialPVC, LSZH, Armored, water-proof, out-door, ...
    ① ConnectorFC, SC, ST, LC, MU, SMA, E2000...
    ② Inserted core coverPC,UPC or APC
    ③ ConnectorFC, SC, ST, LC, MU, SMA, E2000...
    ④ Inserted core coverPC,UPC or APC
    ⑤ TypeSM or MM
    ⑥ Line diameter (mm)Ø3, Ø2, Ø1.6, Ø0.9
    ⑦ Length (m)L=1.2.3.4………….meter
    ⑧ ClassificationSX or DX or multi-fibers


    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.

    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
