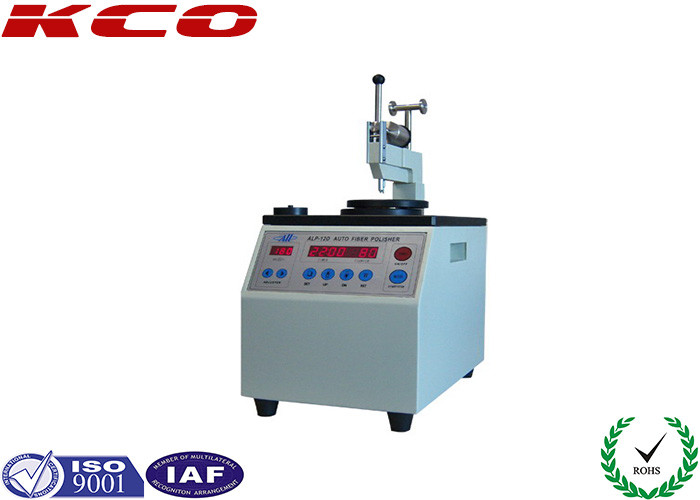

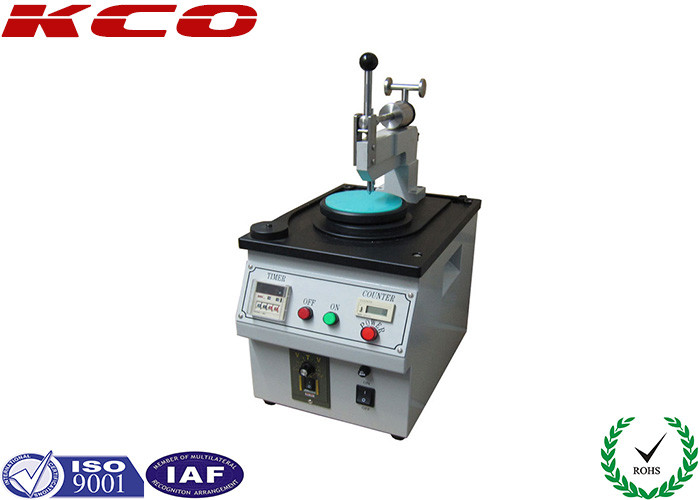

Grinding Fiber Optic Polishing Equipment Fiber Optic Polishing Machine
The fiber polishing machine developed with the use of industrial grade industry-specific microcomputer, this fiber polishing machine development and into set motor speed, time and count in an organic whole, the fiber polishing machine improves the stability of the machine. The fiber polishing machine is dopting advanced technology.
- The fiber polishing machine designed for Polish ceramic, quartz, glass, metal and plastic etc. And this fiber polishing machine can manufacture various standard optical fiber connectors: FC/UPC, SC/UPC, ST/UPC, LC/UPC, MU/UPC, FC/APC, SC/APC, MT-RJ, E2000 etc various types of optical fiber connectors should may at any time storage, edit pressure and time parameters.
- This fiber polishing machine is easy to change jig and polishing films, simple to disassemble and increase pressure.
- This automatic central pressurized fiber polishing machine stored edit pressure and time parameters at any time, unloading and very expediency to load, unload and exchange Polish fixtures and films on the fiber polishing machine.
- This fiber polishing machine quality is stable and high quality, low repair rate and defect. And the fiber polishing machine designed to adjust velocity, to insure polishing quality. And the fiber polishing machine speed can be adjusted at any time (0~170rpm).
- The fiber poslihing machine's production high efficiency (number of units can be composed of parallel lines) and (countable sets of production line)and compact to establish production line.
- This fiber polishing machine is consumables save, grinding cost is low. The fiber polishing machine can save polishing films and reduce polishing cost. And water can be used as polishing liquid, saving product cost.
- Atmosphere/water and power supply are designed in respectively, to insure operation is safety. The fiber polishing machine junction with respectively and module control to make repair easy.
- Our this fiber polishing machine is prositive and negative rotation, easy to handle and adjust, in addition, machine logo and plant color can be assigned.
Stepless speed regulating:
- Buttons speed adjustment, speed range: 0n/m~170rpm, Each time you press the speed control key speed.
- Automatic fixed time
- Timing function with the countdown display. Timer time to the machine, time up automatic stop working.
- Automatic count
- Each time you press the button, the counter automatically increase 1 times, used to grind paper used times of memory.
- Grinding speed can be adjustedfrom0 to 170rpm.
Can grind to other similar products:
- The power switch: Control the machine the opening/closing.
- Start switch: Control the machine operation.
- Insurance (FUSE): Insurance specifications for: 250V / 0.5 A.
- Governor: To adjust motor speed, in order to satisfy the needs of different materials for grinding.
- Open and close button: Press "RUN" button, the equipment running, press the"STOP" button, equipment stop working.
- Timer: Setting and display the polishing time.
- Counter: Record grinding number, if want to recount, can press the reset button.
- Heavy hammer: Adjust heavy hammer position, adjustable grinding pressure, a total of three different gear is available.
- Compaction pin: The pressure in the center, to grind fixture put some pressure.
- Prevent turn pin: Insert in jig anti turn groove, prevent grind chassis rotation.
|Pressure way||by one hammer|
|Insert Loss||0.3 dB (SM)|
|0.2 dB (MM)|
|Return Loss||50 dB (PC)|
|60 dB (APC)|
|Offset||50 μ M|
|Polishing capacity (max)||SC, FC, ST: 12 units LC: 16 units|
|Polishing connector type||FC, SC, ST, LC, MU, MTP, MPO, MTRJ and so on|
|Motor speed||170rpm rotation, 2rpm revolution|
|Input voltage||100-120VAC, 50/60Hz or 220-240VAC, 50/60Hz|
|Polishing chassis diameter||112mm|
|External diameter of bottom plate||126mm|
|Inside diameter of bottom plate||112mm|
|Polishing chassis beating||≤ 5um|
|Polishing time setting||0~999.99s|
|Heavy punch||500g or 250g|
|Stress arm||4 phase shifter|
Options for Polishing jigs which is suitable with fiber optic polishing machine:
|1||FC-PC-20||FC/PC connector style jig, 20 positions||φ2.50mm, 20 positions|
|2||ST-PC-20||ST/PC connector style jig, 20 positions||φ2.50mm, 20 positions|
|3||SC-PC-20||SC/PC connector style jig, 20 positions||φ2.50mm, 20 positions|
|4||FC-PC-24||FC/PC connector style jig, 24 positions||φ2.50mm, 24 positions|
|5||ST-PC-24||ST/PC connector style jig, 24 positions||φ2.50mm, 24 positions|
|6||SC-PC-24||SC/PC connector style jig, 24 positions||φ2.50mm, 24 positions|
|7||MU-PC-24||MU/PC connector style jig, 24 positions||φ1.25mm, 24 positions|
|8||LC-PC-24||LC/PC connector style jig, 24 positions||φ1.25mm, 24 positions|
|9||MU-PC-40||MU/PC connector style jig, 40 positions||φ1.25mm, 40 positions|
|10||LC-PC-40||LC/PC connector style jig, 40 positions||φ1.25mm, 40 positions|
|11||FC-APC-18||FC/APC connector style jig, 18 positions||φ2.50mm, 18 positions|
|12||SC-APC-18||SC/APC connector style jig, 18 positions||φ2.50mm, 18 positions|
|13||MU-APC-18||MU/APC connector style jig, 18 positions||φ1.25mm, 18 positions|
|14||LC-APC-18||LC/APC connector style jig, 18 positions||φ1.25mm, 18 position|
|15||MTRJ-18||MTRJ connector style jig, 18 positions||18 positions|
|16||MPO-18||MPO connector style jig, 18 positions||18 positions|
We can supply brand new of fiber optic polishing machine in square type and central type. We also can supply OEM, ODM servicer for fiber optical polisher, can help you paste your own Brand LOGO on the machine and package. The machine warranty time is 1 year. When you are using the machine, if need to buy the Jigs of tools, we also can supply to you too. Please contact with us by phone or by e-mail to get more informations about them.
