4U Rack Mountable Fiber Optic Splitter ODF Patch Panel 1*2 1*4 1*8 1*16 1*32 LGX Type

  • 4U Rack Mountable Fiber Optic Splitter ODF Patch Panel 1*2 1*4 1*8 1*16 1*32 LGX Type
  • 4U Rack Mountable Fiber Optic Splitter ODF Patch Panel 1*2 1*4 1*8 1*16 1*32 LGX Type
  • 4U Rack Mountable Fiber Optic Splitter ODF Patch Panel 1*2 1*4 1*8 1*16 1*32 LGX Type
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-3U-LGX-Splitter-x
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Tape/ Aluminum Alloy High 3U
Splitter Type Mini Tube Type Split Way 2 Way Input & 16 Way Output
Connector LC/APC. SC/APC Cable 0.9mm
High Light

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description



3U 4U PLC Splitter ODF Optical Fiber 1*4 1*8 LGX Rackmount Patch Panel Distribution Frame



Description:

- Fiber Optic Distribution Frame/ ODF is a high-capacity, high-density fiber distribution frame, suitable composition and distribution of fibers in the optical access network to achieve the fiber optic lines connection, distribution and scheduling, the 19” rack-mounted patch panel, and fiber optic splitter can be loaded inside.

- Fiber optic Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

- The standard LGX mental box housing provides a plug-and-play method for integration in the network, which eliminates any risks during installation.

- It eliminates the need for splicing machines on the field and there is no need for skilled personnel for deployement.

- With small size design, it can save more space for your cabinet.

- Standard 19'' Rack Mount Type Chassis Box, it copy design from Media Converter Chassis Box to save more space and easier to operate.

- Each small LGX box maximum can install 1pcs of 1*8 fiber optic splitter with SC type connector or 2*16 fiber optic splitter with LC type connector.

- Each Splitter Chassic Box can install maximum 16 pcs of small LGX box. Also can install 8pcs, 10pcs, 12pcs or 14 pcs of small LGX Box as End-user request.

- The box can make by steel tape with thickness 0.8mm, 1.0mm and 1.2mm. Or also can make by Aluminium Alloy material.



Technical Data:
- Environmental temperature: -5℃~+60℃
- Operating temperature: -5℃~+40℃
- Relative humidity: ≤85 %( +30℃)
- Atmosphere pressure: 70~106Kpa
- Connectors’ loss: ≥0.5dB
- Return loss: ≥50dB
- Connector life span: ≥1,000 times
- Insulating resistance: ≥2000MΩ/500V
- Voltage resistance strength: >3000V(DC)1 min non-puncture, no are-over



Product picture:

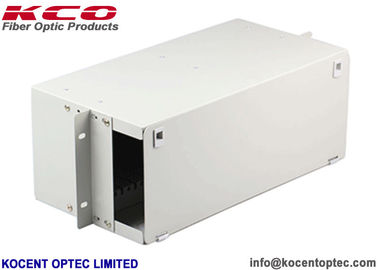

4U Rack Mountable Fiber Optic Splitter ODF Patch Panel 1*2 1*4 1*8 1*16 1*32 LGX Type 0

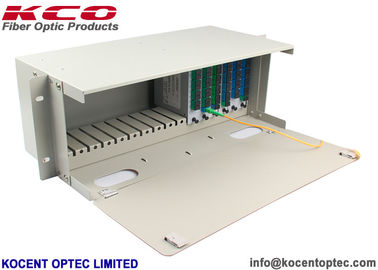

4U Rack Mountable Fiber Optic Splitter ODF Patch Panel 1*2 1*4 1*8 1*16 1*32 LGX Type 1



Applications:

- Fiber to The Point (FTTX).

- Fiber to The Home (FTTH).

- Passive Optical Networks (PON).

- Gigabit Passive Optical Networks (GPON).

- Local Area Networks (LAN).

- Cable Television (CATV).

- Test Equipment.



Features:

- Low insertion loss.

- Low Polarization Dependent Loss.

- Excellent Environmental Stability.

- Excellent Mechanical Stability.

- Meet Telcordia GR-1221 and GR-1209.



Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1



Relation products:

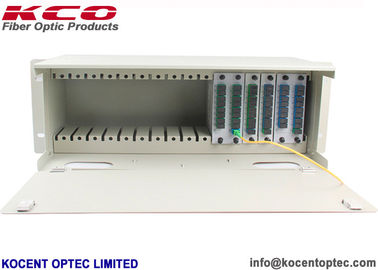

4U Rack Mountable Fiber Optic Splitter ODF Patch Panel 1*2 1*4 1*8 1*16 1*32 LGX Type 2
