FTTA Outdoor Waterproof Fiber Optic Patch Cord H Connector MPO SC Hardened

Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-OTT-MPO-SM-12
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Product Details
Connector 1 MPO MTP Connector 2 FC, LC, SC, ST, E2000, ...
Core 4 6 8 12 16 24 Cores Insertion Loss 0.35dB
Return Loss 55dB Cable Cover Material LSZH, TPU
Color Black Application Tactical Army, Aviation
High Light

FTTA Fiber Optic Patch Cord

,

Fiber Optic Patch Cord

,

MPO SC fibre optic patch cable

Leave a Message
Product Description

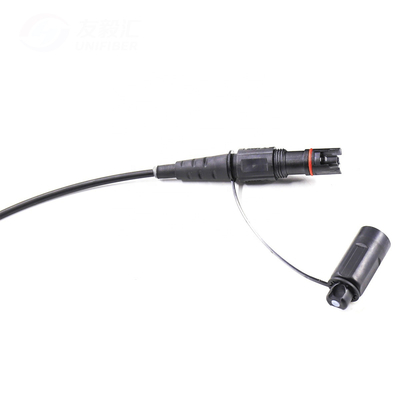

FTTA CPRI OptiTap Compatible H Connector MPO SC Hardened Outdoor Waterproof  Fiber Optic Patch Cable



Introduction:

- FTTA Water-proof Army Field Military Tactical Fiber Optic Patch Cord Connector is designed for military field fiber optic cable supporting, neutral bayonet locking structure can be realized head and seat, head and head, seat and seat fast any connection.

- With multi-core once connected and blind insertion; connection loss, high reliability; rugged, waterproof, dustproof, resistance to harsh environments, etc.,

- This outdoor waterproof connector is compatible with Corning OptiTap connector system. Can be use for FTTA and 5G tower system.

- Corning Optitap/H connector fiber optic patch cable provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal. The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications.

- Can be used in a variety of optical fiber communication network field army, military computer systems, airborne or ship borne equipment, repair and other outdoor optical cable system temporary connection.

- Product is available in 2 cores, 4 cores, 6 cores, 8 cores, 12 cores, 24 cores, ...

- Kocent Optec Limited is one of lead outdoor field fiber optic patch cord manufacturer. Special is in all type of field fiber optic patch cord with waterproof connector, such as: YZA, YZB, YZC, Fullaxs, OptiTap, Huawei Mini SC, Military Connector, PDLC, ODVA, ...

- With more than 10 years of production exprerience, we supply standard telecom and broadcast television grade of patch cord for customers. All of goods are tested before shipment. We provide OEM and ODM service. Contact with our sales team to get more informations about us and products.



Features:

- Compatible with Corning OptiTap Waterproof connector.

- Compatible with MPO MTP system connector.

- Single fiber, or multi fiber as customer request.
- In-line connection available
- Cable diameter Range: 2.0mm, 3.0mm, 4.8mm, 5.0mm, 5.5mm, 6.0mm or 7.0mm
- Bird proof and rodent resistant IP67 water and dust protection
- Low profile in-line receptacle available
- No installation tools required



Application:

- 3G, 4G, 5G Base Station;
- Aerospace&Defence;
- Equipment diagnosis,
- FO sensor;
- FTTA/FFTP/BBU/RRU etc.





Specifications:

Parameters Standard Fiber Cable Assemblies
Connector Side A: MPO MTP waterproof connector
  Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC), NSN, Ericson, Huawei, ...
Fiber count

2 cores
4 cores
6 cores
8 cores
12 cores

24 cores

Fiber Type

SM
G.652D
G.657A (A1, A2, B3, ...)



MM
OM1
OM2
OM3
OM4
OM5)

Jacket Materials

LSZH
TPU
PE

Cable diameter

4.8mm
5.0mm
5.5mm
6.0mm
6.5mm
7.0mm

Testing Wavelengths

SM:
1310±30nm
1550±30nm



MM:
850±30nm
1300±30nm

Insertion Loss(dB)
TIA/EIA-455-107
≤ 0.3dB(PC/UPC/APC)
≤ 0.3dB(UPC)
Return Loss(dB)
TIA/EIA-455-107
≥45dB (PC/UPC)
≥55dB (APC)
≥35dB (UPC)
Exchange ability ≤ 0.2dB
Cable Assemblies Pigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord
Operating Temperature -14℃~+ 85℃
Storage Temperature -40℃~+85℃
