Online Optical Fiber Attenuator Adjustable Attenuator from 0dB to 30dB with FC LC SC Connector

  • Online Optical Fiber Attenuator Adjustable Attenuator from 0dB to 30dB with FC LC SC Connector
  • Online Optical Fiber Attenuator Adjustable Attenuator from 0dB to 30dB with FC LC SC Connector
  • Online Optical Fiber Attenuator Adjustable Attenuator from 0dB to 30dB with FC LC SC Connector
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number FC/APC-FC/APC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, plastic module, carton box, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000 pcs/month
Product Details
Connector Type FC/APC-FC/APC Attenuator Type Fix Type, Adapter Type, Inline Atnt
Body Material Plastic Repeatability 1000 Times 0.2dB
Return Loss 55dB For UPC, 65db For APC Maximum Optical Input Power 1000mW
Highlight

optical fiber attenuator

,

fiber optic variable attenuator
Leave a Message
Product Description
FC/APC online, inline adjustable fiber optic attenuator 1~20dB
Quick detail
  • Model Number: FC/APC-FC/APC
  • Model Name: Inline fiber attenuator/ online fiber optic attenuator
  • Dusty cap color: green, blue
  • Function: adjustable
  • Attenuation range: 1-30dB
Features
  • High precision.
  • Good stability.
  • Small size and bulk.
  • Easy to operate.
  • Based on IEC/Telcordia Bell GR-326-Core Tested
  • Metal ion doped fiber
  • High-power light source durability
  • Wavelength independence
  • Attenuation levels ranging from 1dB to 25dB
  • 1310nm, 1550nm and 1310/1550nm dual wave lengths
Applications
  • Erbium Doped Fiber Amplifiers (EDFA)
  • Dense Wave Division Multiplexers (DWDM)
  • Overpowered fiber optic systems
  • Fiber optic communication systems.
  • Fiber optic CATV
  • Fiber optic test
Fiber optic attenuator descriptions

Fiber optic attenuator is a device used to reduce the power level of an optical signal, either in free space or in an optical fiber. The basic types of optical attenuators are fixed, step-wise variable, and continuously variable. Fixed optical attenuators used in fiber optic systems may use a variety of principles for their functioning. Preferred attenuators use either doped fibers, or mis-aligned splices, since both of these are reliable and inexpensive. Inline style attenuators are incorporated into patch cables. The alternative build out style attenuator is a small male-female adapter that can be added on to other cables.

The fiber optic attenuators can be used on a more permanent basis in order to match the signal with a transmitter and receiver's specific power levels. Commonly used attenuation range is from 1dB to 30dB.

Kocent Optec Limited can supply all attenuation grade of fiber optic attenuator such as 1dB, 2dB, 3dB, 5dB, 7dB, 10dB, 15dB, 20dB, 25dB, etc. The fiber optic attenuator can be in fix type or adjustment type. For fix type, we can supply adapter type and male convert into female type. For adjustment type, we can supply in female to female type and online type. Adjustment type fiber optic attenuator can be adjust any attnuation grade as you need.

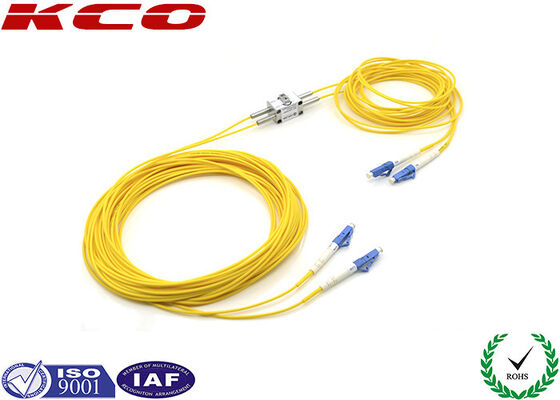

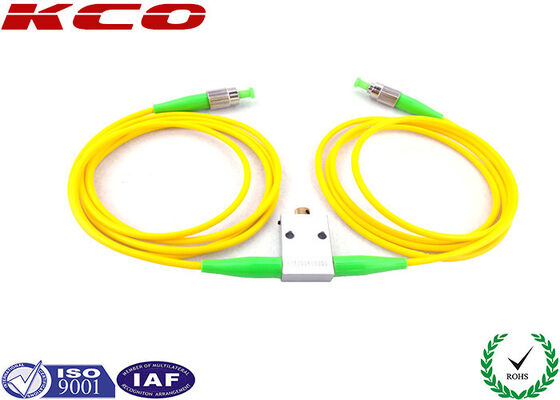

Product pictures

Online Optical Fiber Attenuator Adjustable Attenuator from 0dB to 30dB with FC LC SC Connector

Online Optical Fiber Attenuator Adjustable Attenuator from 0dB to 30dB with FC LC SC Connector

Specifications
Return Loss UPC >55dB
APC >65dB
Attenuation Accuracy 1 ~ 7 dB ±0.5dB
8 ~ 12 dB ±0.7dB
13 ~ 17 dB ±1.0dB
18 ~ 25 dB ±1.3dB
Maximum Optical Input Power 1000mW
Polarization Dependent Loss ≤0.1dB
Operating Temperature Range -40°C to 75°C
Storage Temperature Range -40°C to 85°C
Humidity 95%RH
Attenuation Value 1dB ~ 30dB
Operating Wavelength 1240~1620nm (Dual 1310/1550nm)
Packing ways

Online Optical Fiber Attenuator Adjustable Attenuator from 0dB to 30dB with FC LC SC Connector

OEM/ODM service

Our OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product cable, product package or rack mount, it is no any problem. Our OEM service is always ready to servise you.

Shipping

By International express: TNT, DHL, UPS, special line express, etc
By air: CA, ZH, CZ, AA, AC, BA, etc
By sea
