Metal Fiber Optic Attenuator ST UPC , Fibre Optic Attenuator Male To Female
Place of Origin | Guangdong, China |
---|---|
Brand Name | KCO, Kocent Optec Limited |
Certification | ISO9001, RoHS |
Model Number | ST/UPC |
Minimum Order Quantity | Negotiation |
Price | Negotiation |
Packaging Details | PE bag, plastic module, carton box, wooden pallet |
Delivery Time | 3~5 days after get payment |
Payment Terms | Western Union, T/T, L/C |
Supply Ability | 50,000 pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xConnector Type | ST/UPC | Attenuator Range | 1dB~30dB |
---|---|---|---|
Attenuator Type | Fix Type, Adapter Type, Male To Female Type | Body Material | Plastic, Metal |
Wave Length | 1310, 1490, 1550, 1620nm | Repeatability | 1000 Times 0.2dB |
Durability | 0.2dB | Return Loss | 55dB For UPC, 65db For APC |
Polarization Dependent Loss | Less Than 0.1dB | Maximum Optical Input Power | 1000mW |
High Light | optical fiber attenuator,fibre optic attenuator |
Metal Fiber Optic Attenuator ST UPC , Fibre Optic Attenuator Male To Female
Kocent Optec Limited can supply all attenuation grade of fiber optic attenuator such as 1dB, 2dB, 3dB, 5dB, 7dB, 10dB, 15dB, 20dB, 25dB, etc. The fiber optic attenuator can be in fix type or adjustment type. For fix type, we can supply adapter type and male convert into female type. For adjustment type, we can supply in female to female type and online type. Adjustment type fiber optic attenuator can be adjust any attnuation grade as you need.
Fiber optic attenuator descriptions:
Fiber optic attenuator is a device used to reduce the power level of an optical signal, either in free space or in an optical fiber. The basic types of optical attenuators are fixed, step-wise variable, and continuously variable. Fixed optical attenuators used in fiber optic systems may use a variety of principles for their functioning. Preferred attenuators use either doped fibers, or mis-aligned splices, since both of these are reliable and inexpensive. Inline style attenuators are incorporated into patch cables. The alternative build out style attenuator is a small male-female adapter that can be added on to other cables.
The fiber optic attenuators can be used on a more permanent basis in order to match the signal with a transmitter and receiver's specific power levels. Commonly used attenuation range is from 1dB to 30dB.
Quick detail:
- Model Number: ST
- Model Name: Male to female
- Material: metal
- Dusty cap color: black, yellow, red
- Attenuation range: 0-30 dB

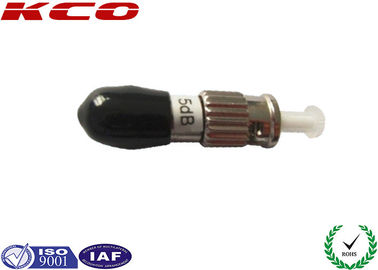

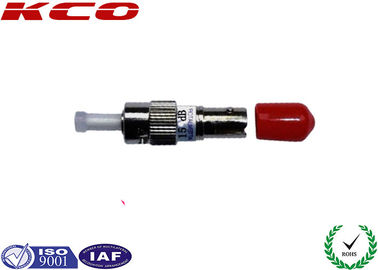

Product pictures:
Features:
- High precision.
- Good stability.
- Small size and bulk.
- Easy to operate.
- Based on IEC/Telcordia Bell GR-326-Core Tested
- Metal ion doped fiber
- High-power light source durability
- Wavelength independence
- Attenuation levels ranging from 1dB to 25dB
- 1310nm, 1550nm and 1310/1550nm dual wave lengths
Applications:
- Erbium Doped Fiber Amplifiers (EDFA)
- Dense Wave Division Multiplexers (DWDM)
- Overpowered fiber optic systems
- Fiber optic communication systems.
- Fiber optic CATV
- Fiber optic test
Specifications:
Return Loss | UPC >55dB |
APC >65dB | |
Attenuation Accuracy | 1 ~ 7 dB ±0.5dB |
8 ~ 12 dB ±0.7dB | |
13 ~ 17 dB ±1.0dB | |
18 ~ 25 dB ±1.3dB | |
Maximum Optical Input Power | 1000mW |
Polarization Dependent Loss | ≤0.1dB |
Operating Temperature Range | -40°C to 75°C |
Storage Temperature Range | -40°C to 85°C |
Humidity | 95%RH |
Attenuation Value | 1dB ~ 30dB |
Operating Wavelength | 1240~1620nm (Dual 1310/1550nm) |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
