SC/UPC Fiber Optic Fast Connector with 0.2dB Insertion Loss 55dB Return Loss and No Epoxy or Polishing for Field Assembly

  • SC/UPC Fiber Optic Fast Connector with 0.2dB Insertion Loss 55dB Return Loss and No Epoxy or Polishing for Field Assembly
  • SC/UPC Fiber Optic Fast Connector with 0.2dB Insertion Loss 55dB Return Loss and No Epoxy or Polishing for Field Assembly
  • SC/UPC Fiber Optic Fast Connector with 0.2dB Insertion Loss 55dB Return Loss and No Epoxy or Polishing for Field Assembly
  • SC/UPC Fiber Optic Fast Connector with 0.2dB Insertion Loss 55dB Return Loss and No Epoxy or Polishing for Field Assembly
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number FAST-55/60-SC-UPC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type FAST SC Color Blue
Insertion Loss 0.2dB Return Loss 55dB
Mode Single Mode, Multi Mode, Mono Mode Length 55mm, 60mm
Highlight

ftth fast connector

,

field installable fiber optic connector
Leave a Message
Product Description

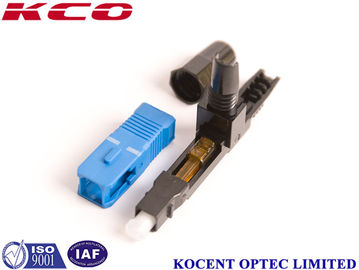

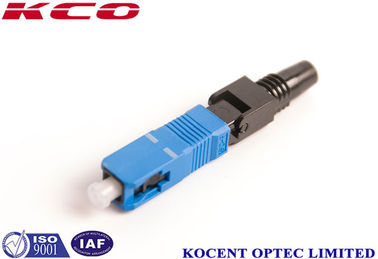

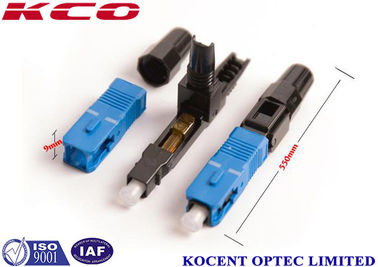

SC/UPC Fiber Optic Fast Connector Field Assembly Connector 55mm/60mm
Field Assembly SC quick connector provides quick and easy fiber termination in the field. Available for 900 micron applications, this connector allows installers to terminate and make connections in minutes at equipment and fiber patch panels. Eliminates the need for epoxy, adhesive, curing ovens, polishing, and fiber deface inspection.
Key Features
  • Factory-installed fiber stub
  • No epoxy or polishing required
  • Quick and easy fiber termination in the field
  • Eliminates cable excess length and pigtail splice storage
  • Cost-effective solution
  • Compatible with bow-type drop cable and 2.0/3.0 indoor cable, telecom cable
Applications
  • CATV
  • Telecommunication networks
  • Test equipment
  • Local Area Networks (LANs)
  • Data processing networks
  • Testing instruments
Technical Specifications
Parameter Single Mode Multi Mode
Polish UPC/APC PC
Insertion Loss Typical ≤0.2dB
Maximum ≤0.3dB		 ≤0.25dB
Return Loss ≥50dB (UPC)
≥65dB (APC)		 ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strength > 10kg
Temperature Performance ≤0.2dB (-40°C to +85°C for 100 hours)
Humidity Performance ≤0.2dB (+25°C to +65°C at 93% RH for 100 hours)
SC/UPC Fiber Optic Fast Connector with 0.2dB Insertion Loss 55dB Return Loss and No Epoxy or Polishing for Field Assembly 0 SC/UPC Fiber Optic Fast Connector with 0.2dB Insertion Loss 55dB Return Loss and No Epoxy or Polishing for Field Assembly 1
OEM/ODM Service
We offer custom branding options for your products including cables, packaging bags, labels, and more. Our OEM and ODM services can accommodate your specific branding requirements.
Packing & Shipping
Standard export packing options include carton boxes, wooden boxes, and wooden pallets. Available shipping methods:
  • International express services (UPS, TNT, DHL, etc.)
  • International air freight (CA, AA, EA, etc.)
  • Sea freight
