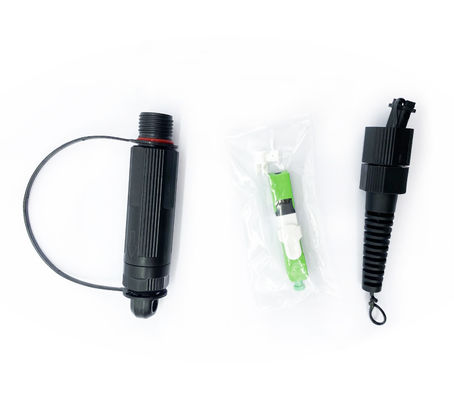

Outdoor Waterproof IP68 SC Fast Connector for G652 G657 Fiber Optic Applications
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO |
| Certification | ISO9001, RoHS |
| Model Number | KCO-FOAC-SCA-OD-HW |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | PE bag, carton box, wooden pallet |
| Delivery Time | 2~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 100,000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| P/N | KCO-FOAC-SCA-OD-HW | Color | Black |
|---|---|---|---|
| Insertion Loss | 0.5dB | Return Loss | 50dB |
| Polishing Type | PC/ APC | Fiber Mode | Single Mode |
| Fiber Type | G652, G657 | Cable | Ftth Drop Cable, Outdoor Cable, Tactical Cable |
| IP Grade | IP68 | Application | Outdoor |
| Highlight | FTTA SC Fast Connector,Waterproof SC Fast Connector,FTTH Applications sc quick connector |
||
Product Description
BBU RRU FTTA Mini SC Fast Connector Outdoor Waterproof For FTTH Applications
Outdoor Waterproof BBU RRU FTTA Mini SC Fast Connector Compatible Huawei Corning OptiTap

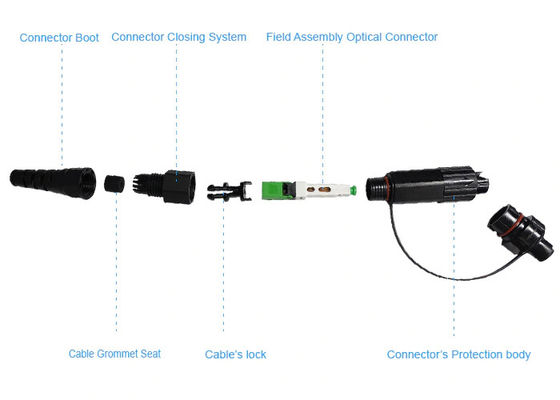

Our outdoor fiber optic fast connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The hardened connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle.
The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.
Technical Specifications
| Parameter | Value |
|---|---|
| Waterproof Rate | IP68 (1M, 1hour) |
| Applicable optical cable | 2.0x3.0mm, 3.0mm, 5.0mm |
| Insertion loss | ≤0.50dB |
| Return loss | ≥55dB |
| End face performance | Conform to YD T 2341.1-2011 |
| Mechanical durability | 1000 times |
| Cable tension (2.0x3.0mm Ttap Fast Connector) | ≥30N; 2Minute |
| Cable tension (2.0mm,3.0mm Ttap Connector) | ≥30N; 2Minute |
| Cable tension (5.0mm Ttap Connector) | ≥70N; 2Minute |
| Torsion of optical cable | ≥15N |
| Drop performance | Allow 10 drops under 1.5m height without abnormal performance |
| Operation temperature (2.0x3.0mm Ttap Fast Connector) | -10℃~+70℃ |
| Operation temperature (2.0mm,3.0mm Ttap Connector) | -40℃~+80℃ |
| Operation temperature (5.0mm Ttap Connector) | -40℃~+80℃ |
| Hot and humid working environment | Long term operation under 90% relative humidity, 70℃ |
Applications
- FTTH Outlets
- Distribution frames
- Maintenance or emergency restoration of fiber networks
- Patch panels
- Connection at the desk for LAN environments
- Fiber Optic Patch Cord & Pigtail
- Fiber optic communications in harsh outdoor environments
- Outdoor communications equipment connection
- Waterproof fiber equipment SC port
- Remote wireless base station

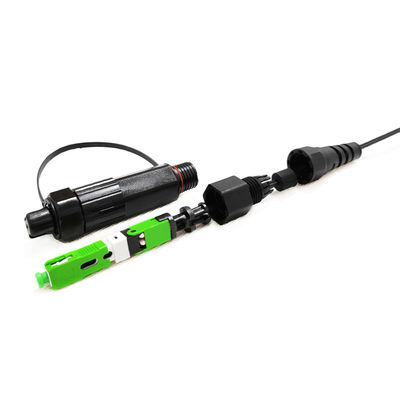

Product Images
