SC APC Fiber Optic Adapter

  • SC APC Fiber Optic Adapter
  • SC APC Fiber Optic Adapter
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number SC/APC, SLC/UPC, LC/PC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Plastic module, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 500,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type LC/APC, LC/UPC Material Metal Or Plastic
Sleeves Material Ceramic (ZrO2) Color Blue, Green, OM3
Insertion Loss 0.2dB Return Loss 55dB
High Light

fibre optic adapter

,

fiber optic cable adapter
Leave a Message
Product Description

SC/APC mono mode fiber optic adapter with transparent color cap



Descriptions:

-  Fiber optic adapters also call fiber optical adapter, optic fiber adapter, optical fiber adapter.

- SC fiber optic adapter is available in single mode UPC APC and MM PC to sastify to connect single mode or multimode patch cables.

- The fiber optic adapters use to join two fiber optic patch cables together. It contains the interconnect sleeve, that holds the two ferrules together.



Applications:

- Testing instruments

- Connection between devices

- Connection between fiber optic patch cords

- CATV, MANS, WANS

- Fiber to the home, Fiber to the X



Advantage of the fiber optic adapters:

- These products are designed and manufactured to comply with stringent Telcordia 100BaseFX Technologies standards.

- Low Insertion Loss means there is little reduction in light intensity along the transmission router.

- High Reliability

- Also compliant with the IEC and ROSH standards

- Our range of fiber optic cable adapter can consistent good quality as is proven by repeated tests. It is interchangeable with similar devices built to the same standards.

- We provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatability.



Product pictures:

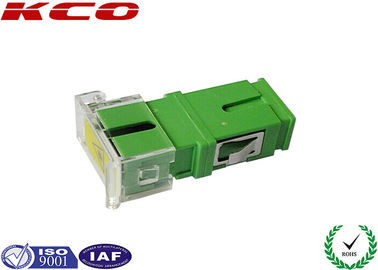

SC APC Fiber Optic Adapter 0

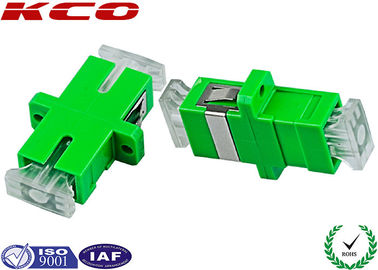

SC APC Fiber Optic Adapter 1



Specification of fiber optic adapters:

Parameter Specifications
Mating Connector Type SC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc
Fiber Type of Connector Single Mode Multimode
Adapter Color Blue, green, metallic Beige, Metallic
Testing Wavelength 1310nm,1550nm 850nm,1300nm
Insert Loss Typical≤0.15dB, max≤0.2dB Typical≤0.15dB, max≤0.2dB
Repeatability ≤0.10dB
Exchangeability ≤0.20dB
Durability 1000Mating, max≤0.20dB
Housing Material Plastic or metal
Operating Temperature -20°C～+70°C
Storage Temperature -40°C～+85°C
Alignment Sleeve Ceramic (ZrO2) or customized
Channel Number Simplex, duplex, quad .



Reliability testing:

Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB



Our fiber optic adapters packing ways:



SC APC Fiber Optic Adapter 2



OEM Service: Label customized is available

If you want to your own Logo display on the package plastic box or carton box, it is no problem. Our label printer is already to service to you!



Shipping:
By International express: TNT, DHL, UPS, special line express, etc
By air: CA, ZH, CZ, AA, AC, BA, etc
By sea
