Automatic Dusty Cap SC/APC Fiber Optic Adapter with 0.2dB Insertion Loss and 55dB Return Loss

  • Automatic Dusty Cap SC/APC Fiber Optic Adapter with 0.2dB Insertion Loss and 55dB Return Loss
  • Automatic Dusty Cap SC/APC Fiber Optic Adapter with 0.2dB Insertion Loss and 55dB Return Loss
  • Automatic Dusty Cap SC/APC Fiber Optic Adapter with 0.2dB Insertion Loss and 55dB Return Loss
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number SC/APC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Plastic module, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 500,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type SC/APC Color Green
Sleeves Material Ceramic (ZrO2) Chanel Way Simplex
Insertion Loss 0.2dB Return Loss 55dB
Material Plastic Exchangeability 0.2dB
Highlight

fibre optic adapter

,

fiber optic cable adapter
Leave a Message
Product Description
Automatic Dusty Cap Fiber Connector SC/APC Adapters
Fiber Optic Adaptors 0.2dB Telecom Grade
Fiber optic adapters (also called fiber optical adapter, optic fiber adapter, or optical fiber adapter) are used to join two fiber optic patch cables together. They contain an interconnect sleeve that holds the two ferrules together. The SC fiber optic adapter is available in single mode UPC APC and multimode PC to connect single mode or multimode patch cables.
Quick Information

Name: Fiber Optic Adapter

Connect type: SC/APC

Color: Green

IL: 0.2dB

RL: 60dB

Cap type: Shutter cap type in one side

P/N: Adapter-SCA-Shutter-01

Applications
  • Testing instruments
  • Connection between devices
  • Connection between fiber optical patch cords
  • CATV, MANS, WANS
  • FTTH, FTTX
Product Advantages
  • Consistent quality proven by repeated tests, interchangeable with similar devices built to the same standards
  • Superior low loss performance with very high repeatability
  • Designed and manufactured to comply with stringent Telcordia 100BaseFX Technologies standards
  • Low Insertion Loss means minimal reduction in light intensity along the transmission route
  • High reliability and compliance with IEC and ROSH standards

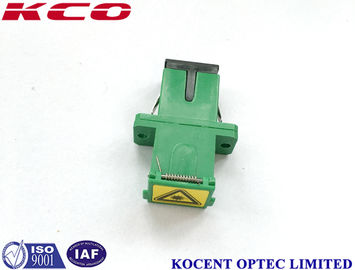

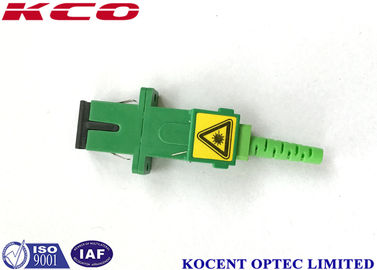

Product Image
Automatic Dusty Cap SC/APC Fiber Optic Adapter with 0.2dB Insertion Loss and 55dB Return Loss 0
Technical Specifications
Parameter Specifications
Mating Connector Type SC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc
Fiber Type of Connector Single Mode | Multimode
Adapter Color Blue, green, metallic | Beige, Metallic
Testing Wavelength 1310nm,1550nm | 850nm,1300nm
Insert Loss Typical≤0.15dB, max≤0.2dB | Typical≤0.15dB, max≤0.2dB
Repeatability ≤0.10dB
Exchangeability ≤0.20dB
Durability 1000Mating, max≤0.20dB
Housing Material Plastic or metal
Operating Temperature -20°C～+70°C
Storage Temperature -40°C～+85°C
Alignment Sleeve Ceramic (ZrO2) or customized
Channel Number Simplex, duplex, quad
Reliability Testing
Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB
OEM/ODM Service
We offer custom branding services for your logo on cables, packaging bags, labels, or any other location. Our OEM and ODM services are available to meet your specific requirements.
Packing & Shipping
Packing:
  • Standard export packing options
  • Carton box, wooden box, wooden pallet
Shipping Methods:
  • International express: UPS, TNT, DHL, etc
  • International air: CA, AA, EA, etc
  • Sea freight
