Fiber Optic Joint Closure Box

  • Fiber Optic Joint Closure Box
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number Dome 1-3
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 5~14 days after get payment
Payment Terms T/T, L/C
Supply Ability 50,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Dome, Vertical Material PC (or ABS, PP, PPR)
Max. Capacity 48 Cores Model Dome 1-3 24
Size 350x150mm Weight 1.2KG
Highlight

fiber optic splice enclosure

,

fibre optic splice closure
Leave a Message
Product Description

Dome type, vertical type 4 ports fiber optic splice closure 1 inport 3 outports



We can provide vertical type fiber optic splice closure from 6 cores up to 288 cores for fiber optic cables connection use for aerial, underground, pipeline, hand-holes in Telecom project. The cable out-port can do 3 ports up to 10 ports. We also can supply in-line type of fiber optic splice enclosure box. Also, OEM Service is available, such as LOGO print, package, label, etc all can be customized.



Quick Detail about vertical fiber optic splice closure:

- Name: dome fiber optic joint splice closure box

- Part number: Dome 1-3(fo)

- Cable entry port: 4 ports

- Capacity of fibers: 48 cores

- Weight:1.2kg

- Size: 350x150mm

- Material: ABS Plastic, PPR

- Cable Diameter: 7.0-22.0mm

- Working temperature: -40℃ to 65℃

- Sealing structure: Screw Thread mechanical seal

- Application: Aerial, Direct buried, underground, pipeline, hand-holes



Splice closures features:

- Two-way cable entries and exists design

- Can be fixed by metal work

- Clear optical fiber cable

- Closure body is made by Super PC material, and the bolt was made in stainless steel

- Can be reopened



Splice closures application:

- Telecommunication networks

- Local area networks

- Aerial hanger, Wall-mounting, Directly buried

- Widely used in FTTH access network

- CATV networks

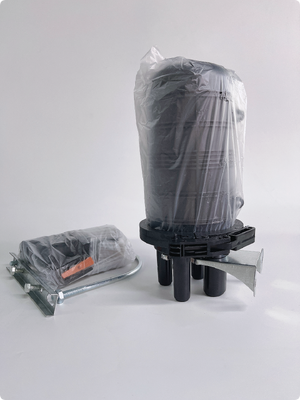

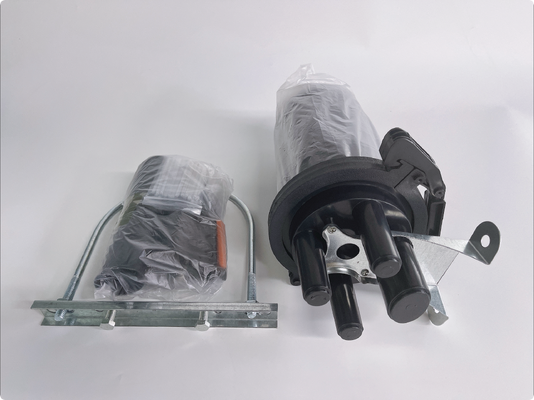

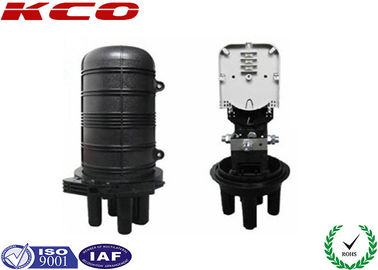

Product pictures:

Fiber Optic Joint Closure Box 0

Vertical splice closure main components:

No. Name of components Quantity Usage Remarks
1 FOSC cover 1 piece Protecting fiber cable splices in whole

Height x Diameter

355mm x 150mm
2 Fiber optic splice tray (FOST) Max. 6 trays (bunchy) Max. 4 trays (ribbon) Fixing heat shrinkable protective sleeve and holding fibers Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces)
3 Fiber holding tray 1 pcs Holding fibers with protective coat
4 Base 1set Fixing internal and external structure
5 Plastic hoop 1 set Fixing between FOSC cover and base
6 Seal fitting 1 pc Sealing between FOSC cover and base
7 Seal rings for inlet/outlet ports 4pcs For the inner seal of inlet/outlet ports; the diameter is 12.5mm,can shrink to 7mm
8 Pressure testing valve 1 set After inject air, it is used for pressure testing and sealing testing Configuration as per requirement
9 Earthing deriving device 1 set Deriving metal parts of fiber cables in FOSC for earthing connection Configuration as per requirement



Vertical splice closure box main accessories and special tools:

No. Accessories Quantity Usage Remarks
1 Heat shrinkable protective sleeve Customized Protecting fiber splices Configuration as per capacity
2 Nylon tie Customized Fixing fiber with protective coat Configuration as per capacity
3 Earthing wire 1 piece Putting through between earthing devices To put through as per actual requirement
4 Abrasive cloth 1 piece Scratching fiber cables
5 Labeling paper 1 piece Labeling fibers
6 Special wrench 2 pieces Installing and tightening nut of reinforced core and nut (plastic) of inlet/outlet tube
7 Measuring paper 1 piece To measure perimeter, of which its diameter is enlarged with seal tape To measure perimeter with the corresponding measuring paper
8 Seal tape 1 ring Enlarging diameter of fiber cable which fits in with gasket ring. Configuration as per specification
9 Insulation tape 1 ring Enlarging diameter of fiber cable for easy fixing
10 Metal hoop 1 set For wall mounting and pole hugging
11 Buffer tube decided by customers Hitched to fibers and fixed with FOST, managing buffer. Configuration as per requirement
12 Desiccant 1 bag Put into FOSC before sealing for desiccating air



Packing ways:

Fiber Optic Joint Closure Box 1



Packing ways:
According to export standard packing.

OEM/ODM service: Our OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product cable, product package or rack mount, it is no any problem. Our OEM service is always ready to servise you.

Shipping:
By International express: TNT, DHL, UPS, special line express, etc
By air: CA, ZH, CZ, AA, AC, BA, etc
By sea
