OTDR Launch Cable Box

  • OTDR Launch Cable Box
  • OTDR Launch Cable Box
Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-launch box
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details paper bag, carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T, Western Union, L/C
Supply Ability 200,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-launch Box Application OTDR Launch
Core Number Simplex Connector SC, FC, Etc
Length 0.5km, 1km, 2km Fiber Single Mode
High Light

fiber optic fittings

,

fiber optic tools and equipment
Leave a Message
Product Description

Fiber Optil OTDR Launch Cable Box 2km SC Connector fiber optic tools



Descriptions:
- Designed to aid in the testing of fiber optic cable when using an OTDR.

- The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's to help minimize the effects of the OTDR's launch pulse on measurement uncertainty.

- Available in many different configurations and fiber lengths



Features:
• The OTDR test extension line, OTDR, OTDR products.
• Mainly used to compensate for the OTDR test blind area, central fiber.
• Without any fusion joint, small volume, light weight Easy to carry.
• Single-mode, multimode (62.5125).
• Length 500M, 1KM, 2KM... 5KM (custom).
• Loss less than or equal to 0.5dBm/km.
• With excellent sealing performance, waterproof and dustproof explosion-proof.
• Imported yellow shell.
• Single-mode or multimode optical fiber.
• Length 1-3 km selected at random.
• Fiber optic connectors available: FC, LC, SC, ST/PC or APC.


Functions:
- Pulse Suppressor,Launch Box,Delay Line,Installation/Testing,Training,Calibration.
- Compound Latch for positive seal and easy opening with locking feature.
- Nonmetal construction will not dent, corrode, or conduce electricity.
- Water and dust prove allowing the unit to be taken into almost any environment.
- Case can house up to 2,000 meters of fiber.
- Auto Purge Valve for changes in altitude and temperature .


Informations:

- Connector type: SC, LC, ST, FC, E2000. MPO etc
- Length: from 100m to 4KM
- Water resistant, crushproof and dust proof
- Material: SR Polypropylene
- Color: Black/Yellow
- Operating temperature -40°C to +80°C
- Type of fiber: corning SMF-28
- Lead length: 1m-5m, outside diameter 2.0mm or 3.0mm
- G652 type fiber.
- Back Reflection(RL) < -55 DB
- GR-326 Standard

(1) Apex offset: 0 - 50 um
(2) Radius of curvature 7 – 25 nm
(3) Fiber roughness: 0 – 25 nm
(4) Ferrule roughness: 0-50 nm



Specifications:

Length*Width*Height 23.8x14.1x6.7cm / 13.5x9 x4.3 cm
Material SR Polypropylene
Color Black/Yellow
Net Weight 0.75 kg (without fiber)
Operating temperature Operating temperature
Typical Loss <1dB @ 1310nm for 1000 meters

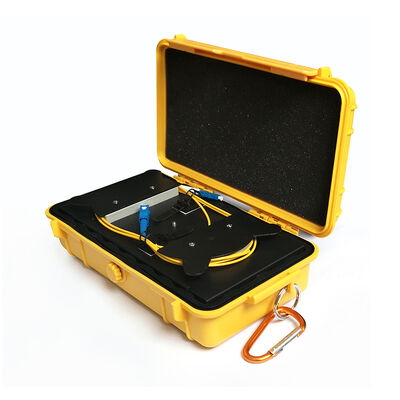

Product pictures:

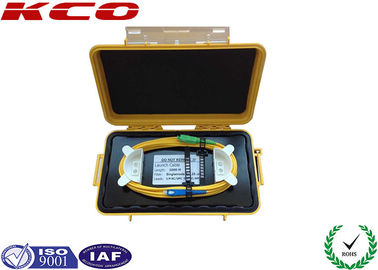

OTDR Launch Cable Box 0

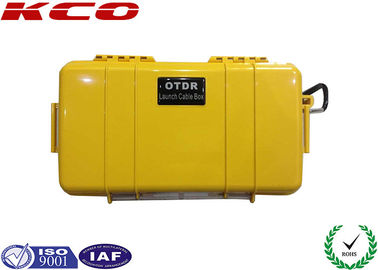

OTDR Launch Cable Box 1



Ordering Information:
LB-[A]-[B]-[C]-[D]

A = Input connector B = Output connector C = Fiber D = Length(km)
FC-FC/UPC FC-FC/UPC S–Single mode fiber 0.5=0.5km
ST-ST/UPC ST-ST/UPC M6–Multi mode fiber (62.5/125) 1.0=1km
SC-SC/UPC SC-SC/UPC M5–Multi mode fiber (50/125) 2.0=2km
FCA – FC/APC FCA – FC/APC OM3 – Corning 50/125 (350)
SCA – SC/APC SCA – SC/APC G657A – TKH G.657A 9/125
LC-LC/UPC LC-LC/UPC
LCA-LC/APC LCA-LC/APC
MU-MU/UPC MU-MU/UPC

For Example:

Single mode fiber, input FC/UPC; output LC/APC, 1000 meters long LB – FC – LCA – S – 1.0
Note: Other special adaptors or connectors are available upon request.



Packing ways:
According to export standard packing.

OEM/ODM service: Our OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product cable, product package or rack mount, it is no any problem. Our OEM service is always ready to servise you.

Shipping:
By International express: TNT, DHL, UPS, special line express, etc
By air: CA, ZH, CZ, AA, AC, BA, etc
By sea
