20mW 25mW Fiber Optic Tools 20km KCO-VFL-08-25 Visual Fault Locator Red Laser Pen

Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-VFL-08
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details paper bag, carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T, Western Union, L/C
Supply Ability 200,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
P/N KCO-VFL-08 Testing Length <20km
Output Power 25mW Testing Fiber Single Mode SM, Multimode MM
Weight 78g Size 168mm*27mm
High Light

fiber optic accessories


fiber optic tools and equipment

Leave a Message
Product Description


20km KCO-VFL-08-25 Fiber Optic Visual Fault Locator Rad Laser Pen 20mW 25mW

- The KCO-CFL-08 Series visual fault locator is used for the measurement in single mode or multi-mode fibers.
- It features a rugged design, a universal connector and an accurate measurement.
- The KCO-VFL-08 Series Mini Visual Laser Source totally complies with the human engineering.
- It's small in size, easy to operate, portable and integrated with a launching indicator.
- A Visual Laser Source is usually used to inspect the damaged or broken point of a optical fiber, cable, patchcord and etc. If the inspected fiber does have a defect, user could find the visual laser at the broken or damaged point.

- The KCO-VFL-08 Series Mini Visual Laser Source is suitable for both single mode and multimode fibers.
- The performance of the visual laser source will act a little different on different fiber coat and color.
- KOCENT OPTEC LIMITED can supply the VFL with 5mW, 10mW, 20mW, 30mW and 50mW.
- It has black color.
- Use high quality Aluminum alloy.
- It is easy to use and small size.


Corresponding table:

Item KCO-VFL-08-01 KCO-VFL-08-10 KCO-VFL-08-20 KCO-VFL-08-30 KCO-VFL-08-50
Wavelength 650nm ± 20nm
Output Power > 1mW > 10mW > 20mW > 30mW > 50mW
Dynamic Distance 2~ 5 km 8~12km 12~15km 18~22km 22~30km
Mode Continuous Wave (CW) and Pulsed
Fiber Type SM
Connector 2.5mm
Packaging Size 210*73*30
Weight 150g
Power Supply AA * 2
Operating Temperature

-10 -- +50 °C

< 90%RH

Storage Temperature

20 -- +60 °C

< 90%RH


①It is strictly prohibited to direct the human eye and please take precautions to avoid static electricity releasing.
②The output power is figured out by multi-mode optical fiber at 23℃±3℃.
③Detecting range will be different with different fibers.
④Working hours is figured out by 2*AAA batteries at 23℃±3℃, it will be a little different by using different AAA batteries.



- Test Lab of optical fibers

- Maintenance in Telecom
- Maintenance CATV
- Other Fiber Optic Measurements

- Insert the fiber into VFL through Fiber Connector.

- It can be used as reference of the multi- core cable
- End to end fiber identification
- Identify the breaks and micro-bend of the pigtail/fiber
- Operation


- 2.5mm universal connector
- Operates either in CW or Pulsed
- Constant output power
- Lower Battery warning
- Long battery life
- Crash-proof and dust-proof design for laser head
- Laser case ground design prevents ESD damage
- Portable and rugged, easy to use


Product pictures:

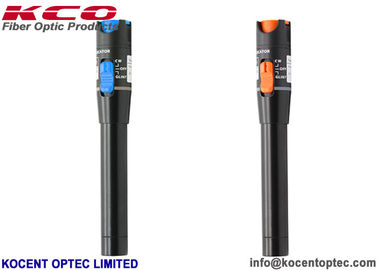

20mW 25mW Fiber Optic Tools 20km KCO-VFL-08-25 Visual Fault Locator Red Laser Pen 0

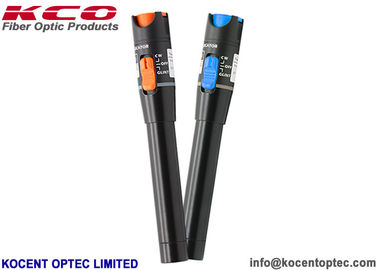

20mW 25mW Fiber Optic Tools 20km KCO-VFL-08-25 Visual Fault Locator Red Laser Pen 1

Cost effective:

- The Pen type VFL's extremely high efficiency guarantees prolonged operation with two standard AA alkaline batteries, typically providing 50 hours of uninterrupted operation.

- Priced to accommodate the tightest budgets, the KCO-VFL-x Pocket Pal is a truly affordable way to locate faults in OTDR dead zones.

- Its effectiveness justifies purchasing one for just about every fiber technician.
- We adopt the new technology for AL composite material make the PEN more light.

- And use import Mitsubishi LD Laser, make the lights signal more gathered and less attenuation


OEM/ ODM service:

If you want to print your own brand LOGO on the pen lable or package, it is no any problem. Our OEM service is always ready for you. Please call us or send e-mail to us with your detail inquiry to get more informations.


According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

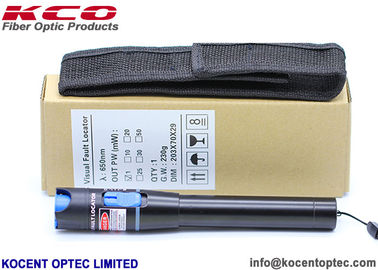

20mW 25mW Fiber Optic Tools 20km KCO-VFL-08-25 Visual Fault Locator Red Laser Pen 2

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

20mW 25mW Fiber Optic Tools 20km KCO-VFL-08-25 Visual Fault Locator Red Laser Pen 3
