|Length:||60mm, 45mm, 40mm||Outer Diameter:||3.0mm|
|Steel Wire Diameter:||1.2mm, 1.5mm||Outer Material:||PET|
|Steel Wire Material:||SUS304, SUS201||Outer Thickness:||0.2mm|
fiber optic accessories,
fiber optic fittings

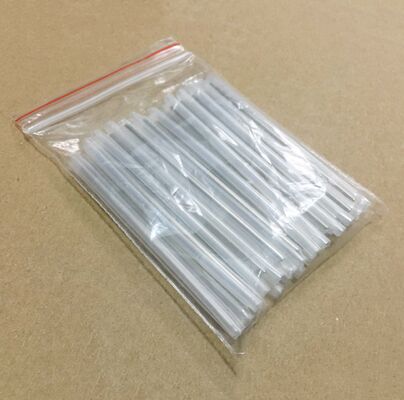

40mm, 45mm, 60mm fiber optic heat shrinkable tube, optical fiber protection tube
We can supply optical fiber heat shrinkable tube in large quantity in different length such as 40mm, 45mm, 60mm. We also can supply OEM, ODM servicer for foptical fiber heat shrinkable tube, can help you paste your own Brand LOGO package and Carton box. Please contact with us by phone or by e-mail to get more informations about them.
Fiber optic protection sleeves Overview:
Fiber Protection sleeve is used for protecting and supporting the fusion splice point. Single fiber to maximum 12 fibers protection sleeves are available from us. The outer jacket of the sleeve is made of polyolefin while the inner tube is made of EVA. The minimum shrinking temperature is 100°C.
Fiber optic protection sleeves Description:
Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.
The sleeve can be divided into two types (single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.
Mass means there are several cores for the fiber. So the mass sleeve includes 4cores, 6cores, 8cores, 12cores (for types).
Fiber optic protection sleeves Features:
Mass type sleeve materials
Hot melt adhesive
Ceramic reinforcement member
Heat shrinkable tube
Single type sleeve materials
Hot melt adhesive
Heat shrinkable polyolefin
Stainless steel needle
Fiber optic protection sleeves Technical Data:
|Properties||Test Method||Typical Data|
|Tensile Strength MPa||ASTM D 2671||18|
|Ultimate Elongation (%)||ASTM D 2671||700|
|Density (g/cm2)||ISO R1183D||0.94|
|Dielectric Strength (KV/mm)||IEC 243||20|
|Dielectric Constant||IEC 243||2.5|
|Longitudinal Change (%)||ASTM D 2671||+5|
|Operating Temperature (°C) :||-45 ~ 100|
|Shrinking Temperature Range (°C) :||90 ~110|
|Length (mm):||40mm, 45mm, 60mm|
Fiber optic protection sleeves Specifications:
Fiber optic protection sleeves packing ways:
Box dimension: 45*26*53 cm
Packing capacity: 40,000pcs/ box
According to export standard packing.
OEM/ODM service: Our OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product cable, product package or rack mount, it is no any problem. Our OEM service is always ready to servise you.
