0.3dB Insertion Loss 55dB Return Loss 3D Pass SC Fast Connector Field Assembly Connector for FTTH Drop Cable

  • 0.3dB Insertion Loss 55dB Return Loss 3D Pass SC Fast Connector Field Assembly Connector for FTTH Drop Cable
  • 0.3dB Insertion Loss 55dB Return Loss 3D Pass SC Fast Connector Field Assembly Connector for FTTH Drop Cable
  • 0.3dB Insertion Loss 55dB Return Loss 3D Pass SC Fast Connector Field Assembly Connector for FTTH Drop Cable
  • 0.3dB Insertion Loss 55dB Return Loss 3D Pass SC Fast Connector Field Assembly Connector for FTTH Drop Cable
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-FOFC-SCU-N
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-FOFC-SCA-N Color Blue
Insertion Loss 0.3dB Return Loss 55dB
3D Pass Tension Of Fiber >3N
Highlight

ftth fast connector

,

field installable fiber optic connector
Leave a Message
Product Description
FOFC SC/UPC SC/APC Fiber Optic Fast Connector FTTH Drop Cable 0.3dB Insertion Loss
New Design FOFC SC/UPC SC/APC Fiber Optical Fast Connector FTTH Drop Cable 3.0mm 0.9mm. Kocent Optec Limited is one of leader supplier of fiber optic fast connector in China. All of our fast connectors meet Telecom requirements.
Logo print is free for quantity more than 10k (pcs). Logo Lettering is free for quantity more than 100k (pcs). 3D pass reach more than 80%. Contact with our sales team for your OEM and ODM order.
Product Description
Fiber Optic Fast connector (also called Field Assembly Connector) is used for field-installable optical fiber connector, widely used in Fiber To The Home (FTTH) access optical networks, not only for single-mode or multimode fiber, and can also choose to 900um, 3.0mm and the introduction of cable buffered type.
SC UPC fast connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers.
With fast installation time and low insertion loss, the connector system provides a good alternative to fusion splicing. Installation is as easy as strip, clean, cleave cam and crimp.
Key Features
  • Low insertion loss and back reflection loss
  • Ferrule end surface predomed
  • Precision anti-rotation key and corrosion resistant body
  • UL-rated plastic housing
  • Telcordia style boots
  • Free-floating ceramic ferrule
Technical Data
  • Optical fiber: 2.0mmx3.1mm butterfly type
  • Plug type: SC APC, SC UPC
  • Diameter of fiber: 0.125mm
  • Fiber Mode: single mode
  • IL: <0.4dB (0.2dB type)
  • 3D: pass 80%

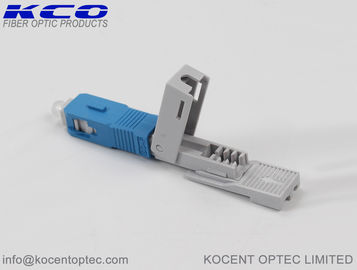

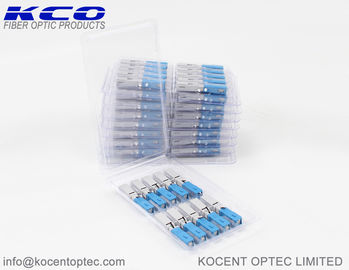

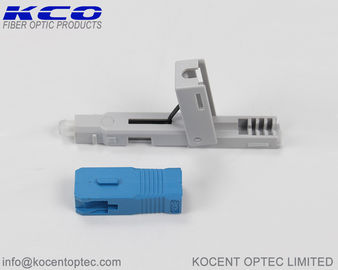

Product Images
0.3dB Insertion Loss 55dB Return Loss 3D Pass SC Fast Connector Field Assembly Connector for FTTH Drop Cable 0 0.3dB Insertion Loss 55dB Return Loss 3D Pass SC Fast Connector Field Assembly Connector for FTTH Drop Cable 1
Applications
  • Connections at the desk for LAN environments
  • Patch panels. OTB, ODB, FDB, ...
  • Direct equipment termination
  • Fiber to the Subscriber (FTTx) applications
  • Repair/replacement requirements
  • Equipment test leads
Specifications
Item Parameter
Cable Scope 3.0*2.0mm Drop Cable
Fiber Diameter 125μm ( 652 & 657 )
Coating Diameter 250μm
Mode SM
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.25dB(1310nm & 1550nm)
Return Loss ≤ -45dB
Success Rate >98%
Reusable Times >10 times
Tensile Strength >3 N
Tighten Strength of Coating >10 N
Storage Temperature -40~+85°C
Working Temperature -15~+70°C

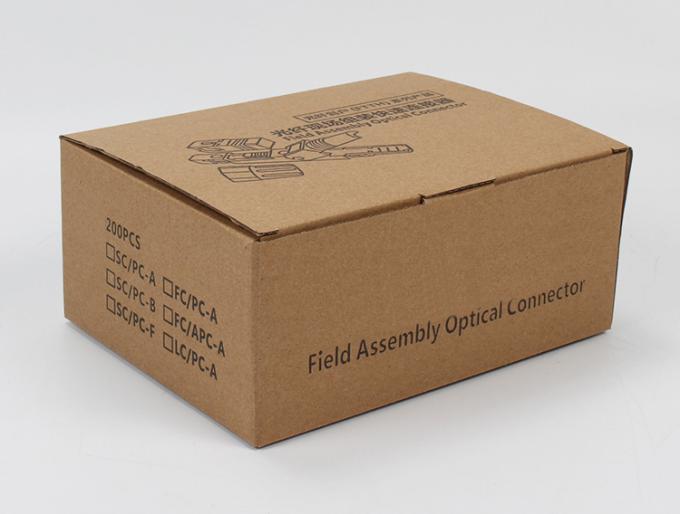

Packing Information
Ex-work:

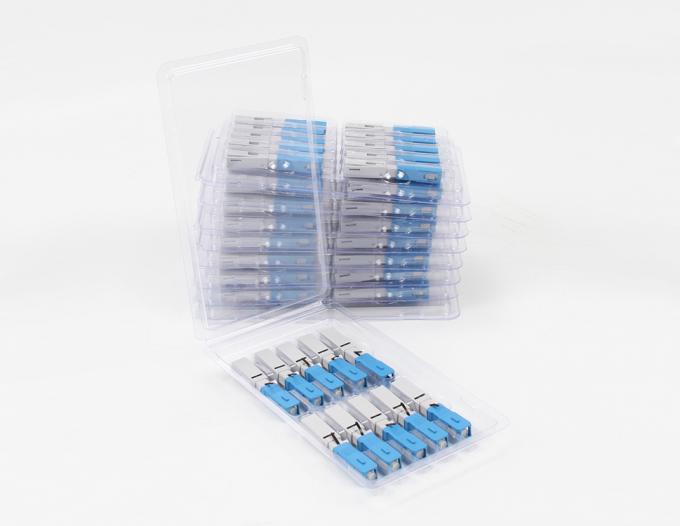

- Inner packing: 10pcs in a blister box, 100 piece in one box
- 1000pcs/carton/40*22*35cm/10.8kg
Can pack as customer request.
OEM/ODM Service
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Shipping Options
- International express such as UPS, TNT, DHL, etc
- International air: CA, AA, EA, etc
- By sea
0.3dB Insertion Loss 55dB Return Loss 3D Pass SC Fast Connector Field Assembly Connector for FTTH Drop Cable 2
