UPC Blue Fiber Optic Fast Connector with 0.2dB Insertion Loss and 55dB Return Loss for 0.9mm Cable

  • UPC Blue Fiber Optic Fast Connector with 0.2dB Insertion Loss and 55dB Return Loss for 0.9mm Cable
  • UPC Blue Fiber Optic Fast Connector with 0.2dB Insertion Loss and 55dB Return Loss for 0.9mm Cable
  • UPC Blue Fiber Optic Fast Connector with 0.2dB Insertion Loss and 55dB Return Loss for 0.9mm Cable
  • UPC Blue Fiber Optic Fast Connector with 0.2dB Insertion Loss and 55dB Return Loss for 0.9mm Cable
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number ESC250D/UPC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N ESC250D/UPC Color Blue
Insertion Loss 0.2dB Return Loss 55dB
3D Pass Length 50mm 55mm 60mm
Highlight

ftth fast connector

,

field installable fiber optic connector
Leave a Message
Product Description
UPC Blue Fiber Optic Fast Connector OFC Single Mode SM ESC250D 0.2dB Insertion Loss

ESC250D UPC Blue Fiber Optic Fast Connector OFC Quick Connector from Kocent Optec Limited, a leading supplier of fiber optic fast connectors in China. Our connectors meet Telecom requirements including Viettel and VNPT standards.

Free logo printing available for orders over 10,000 pieces and free logo lettering for orders exceeding 100,000 pieces. Contact our sales team for OEM and ODM orders.

Technical Data
  • P/N: ESC250D UPC
  • Optical fiber: 0.9mm cable
  • Plug type: SC/APC, SC/UPC
  • Diameter of fiber: 0.125mm
  • Fiber Mode: single mode
  • IL: less than 0.5dB (0.2dB type)
  • 3D: pass 80%
Product Description

The Fast Connector (Field Assembly Connector) is a revolutionary field-installable optical fiber connector requiring no epoxy or polishing. Its patented mechanical splice body incorporates a factory-mounted fiber stub and pre-polished ceramic ferrule, improving wiring flexibility and reducing termination time.

Ideal for LAN & CCTV applications and FTTH installations, this solution is widely used for optical wiring inside buildings and between floors.

Applications
  • Patch panels and distribution frames
  • Maintenance or emergency restoration of fiber networks
  • FTTH Outlets
  • LAN environment desktop connections
  • FTTx butterfly type cable (square and circle shapes available)
Key Features
  • Factory-installed fiber stub with no epoxy or polishing required
  • Allows up to three re-terminations with no special tools needed
  • Quick 30-second learning process for installation
  • Cost-effective solution with one-year warranty
  • Low insertion loss (≤0.2dB typical) and high return loss
  • Reliable optical performance and connection stability
  • Convenient field installation with fast operation
Specifications
Parameter SM MM
Polish UPC APC | PC
Insertion Loss Typical ≤0.2dB
Maximum ≤0.3dB		 ≤0.25dB
Return Loss ≥50dB ≥65dB | ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strength > 10kg
Temperature ≤0.2dB (-40°C to +85°C for 100 hours)
Humidity ≤0.2dB (+25°C to +65°C at 93% RH for 100 hours)
Product Images

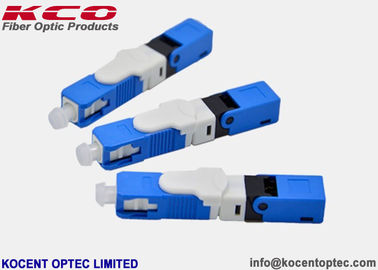

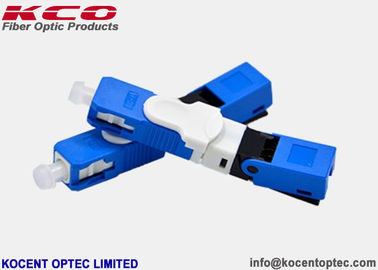

UPC Blue Fiber Optic Fast Connector with 0.2dB Insertion Loss and 55dB Return Loss for 0.9mm Cable 0 UPC Blue Fiber Optic Fast Connector with 0.2dB Insertion Loss and 55dB Return Loss for 0.9mm Cable 1
OEM/ODM Service

We offer complete branding solutions including custom LOGO placement on cables, packaging bags, labels, or any desired location. Our OEM and ODM services are available for all your customization needs.

Packaging & Shipping

Packaging: Standard export packing with carton boxes, wooden boxes, or wooden pallets.

Shipping Options:

  • International express (UPS, TNT, DHL)
  • International air freight (CA, AA, EA)
  • Sea freight

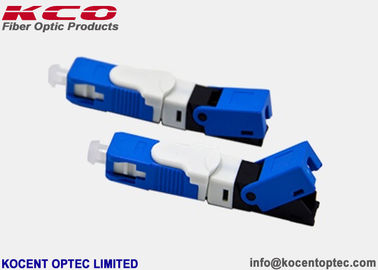

UPC Blue Fiber Optic Fast Connector with 0.2dB Insertion Loss and 55dB Return Loss for 0.9mm Cable 2
