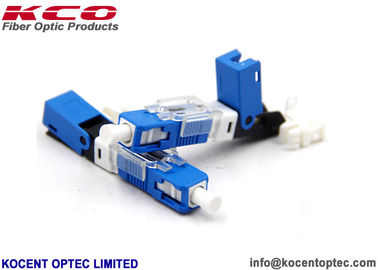

Telecom 3D Pass Fiber Optic Quick Connector , Field Quick Assembly Connector ESC250D

  • Telecom 3D Pass Fiber Optic Quick Connector , Field Quick Assembly Connector ESC250D
  • Telecom 3D Pass Fiber Optic Quick Connector , Field Quick Assembly Connector ESC250D
  • Telecom 3D Pass Fiber Optic Quick Connector , Field Quick Assembly Connector ESC250D
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number ESC250D/UPC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N ESC250D/UPC Color Blue
Insertion Loss 0.2dB Return Loss 55dB
3D Pass Length 50mm 55mm 60mm
High Light

ftth fast connector

,

field installable fiber optic connector
Leave a Message
Product Description

ESC250D Optical Fiber Fast Connector Field Quick Assembly Connector Telecom 3D Pass

Kocent Optec Limited is one of leader supplier of fiber optic fast connector in China.
All of our fast connector meet Telecom requirement as Viettel, VNPT, ...
Logo print is free for quantity more than 10k (pcs). Logo Lettering is free for quantity more than 100k (pcs)
Contact with our sales team for your OEM and ODM order.

Feature:
1) Factory-installed fiber stub.
2) No epoxy and polishing required, No special tools needed when installed.
3) Allows up to three re-termination result.
4) Easily installed, Quick and easy fiber termination in the field.
5) Only 30 seconds needed to learn the process of installation and making.
6) Cost effective, Warranty: One year.
7) Fast connecting and repeat, No special tools needed when installed.
8) Can be made on-site without splicing connectors.
9) Eliminates cable excess length and pigtail splice storage.
10) Can be intalled and maked repeatedly thus avoiding loss.

Techenical Data:
P/N: ESC250D UPC
Size: 52×9×8.1mm
Optical fiber: 0.9mm cable
Plug type: SC/APC, SC/UPC
Diameter of fiber: 0.125mm
Fiber Mode: single mode
IL: less 0.5dB (0.2dB type)
3D: pass 80%
Use for: 2.0mm×3.0mm & 2.0mm×1.6mm FTTH drop cable

Descriptions:
1. Double V-groove structure design, fiber optic docking is stable and reliable;
2, The core structure: the use of normally closed elastic fastening method, excellent technical indicators;
3, Linkage structure design, when docking with equipment and joints, the reserved microbend remains unchanged;
4. Applicable optical cable: 2.0mm×3.0mm & 2.0mm×1.6mm butterfly cable;
5, Tensile strength: > 30N / 2min;
6. Simple operation, fast construction speed, high installation success rate, long life cycle and simple and convenient maintenance.
7, Product size: 52 × 9 × 8.1mm

Application:
Patch panels
Distribution frames
Maintenance or emergency restoration of fiber networks
​FTTH Outlets
Connection at the desk for LAN environments
Suitable for FTTx butterfly type cable(both square and circle shape are available)

Specification

ItemParamete
Cable Scope3.0 x 2.0 mm Bow-type Drop Cable
2.0/3.0 indoor cable
Fiber Diameter125μm ( 652 & 657 )
Coating Diameter250μm
ModeSM
Operation Timeabout 15s(exclude fiber presetting)
Insertion Loss≤ 0.3dB(1310nm & 1550nm)
Return Loss≤ -40dB
Success Rate>98%
Reusable Times>10 times
Tighten Strength of Naked Fiber>5 N
Tensile Strength>50 N
Teperature-40~+85℃
On-line Tensile Strength Test (20 N)IL ≤ 0.3dB
Durabiltiy (500 times mating)IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)IL ≤ 0.3dB

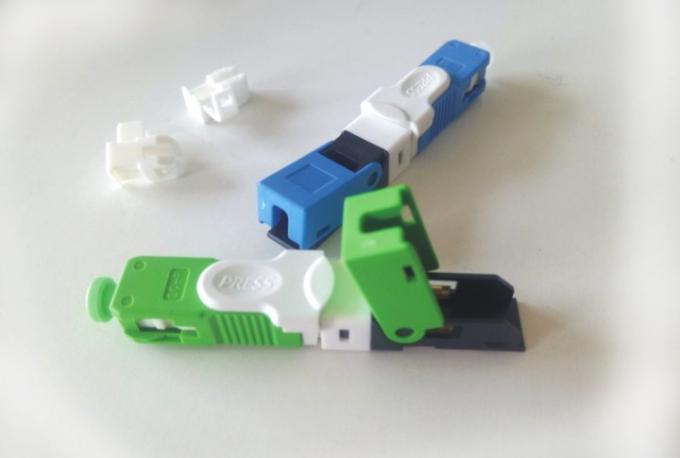

Product photo:

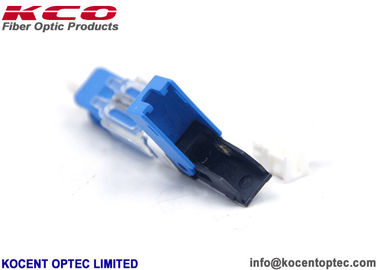

Telecom 3D Pass Fiber Optic Quick Connector , Field Quick Assembly Connector ESC250D 0

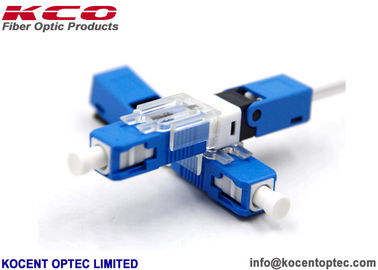

Telecom 3D Pass Fiber Optic Quick Connector , Field Quick Assembly Connector ESC250D 1

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
Telecom 3D Pass Fiber Optic Quick Connector , Field Quick Assembly Connector ESC250D 2
