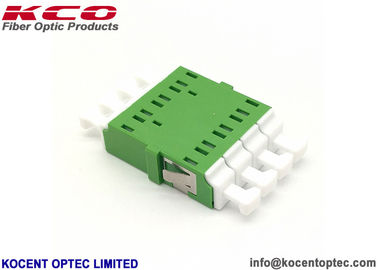

LC / APC Quad Fiber Optic Adapter Coupler Insertion Loss 0.2dB Plastic Material

  • LC / APC Quad Fiber Optic Adapter Coupler Insertion Loss 0.2dB Plastic Material
  • LC / APC Quad Fiber Optic Adapter Coupler Insertion Loss 0.2dB Plastic Material
  • LC / APC Quad Fiber Optic Adapter Coupler Insertion Loss 0.2dB Plastic Material
  • LC / APC Quad Fiber Optic Adapter Coupler Insertion Loss 0.2dB Plastic Material
  • LC / APC Quad Fiber Optic Adapter Coupler Insertion Loss 0.2dB Plastic Material
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-LC/APC-Quad A
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Plastic module, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 500,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type LC/APC Material Plastic
Chanel Way 4 Ways Insertion Loss 0.2dB
Return Loss 55dB Fiber Mode Singlemode
P/N KCO-LC/APC-Quad A Color Green
Highlight

fibre optic adapter

,

fiber optic cable adapter
Leave a Message
Product Description



LC / APC Quad Fiber Optical Adapter / Optics Fibre Coupler Insertion Loss 0.2dB



Description:

- LC/APC quad fiber optic adapters are specially designed to suit FTTH applications.

- Its design is 1 adapter with 4 port of LC/APC.

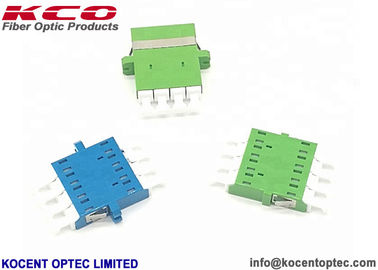

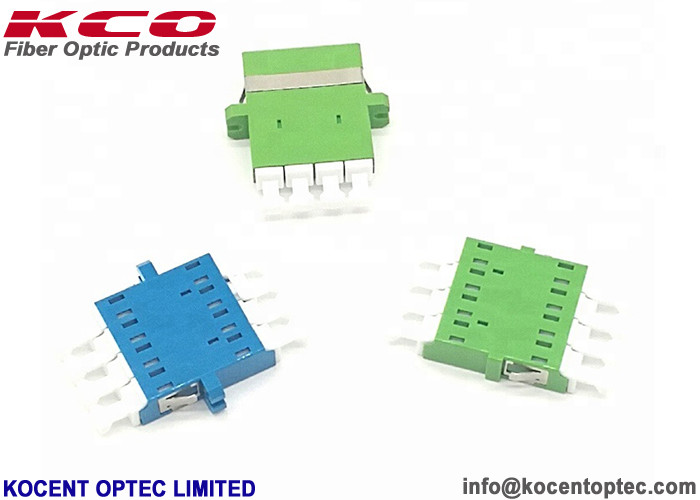

- This adapter is also avaible in single mode LC/UPC blue color and Multimode LC/PC in beige color, aqua color, violet color.

- All products are designed and controlled under IEC standard, meet the requirement of Telcordia GR-326 and TIA/EIA as well.


Quick Information:
- Name: LC/APC Duplex Shutter Adapter without flange
- Fiber type: Single mode (SM) 9/125
- Signal way: quad (4 ways)
- Material: Plastic
- IL: less than 0.2dB
- RL: More than 50dB
- P/N: KCO-LC/APC-Quad A



Optical Performance
Item Premium Grade Standard Grade
Insertion Loss ≤0.1dB ≤0.2dB
Durability 1000 times 1000 times



Environmental and Mechanism
Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling -40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB

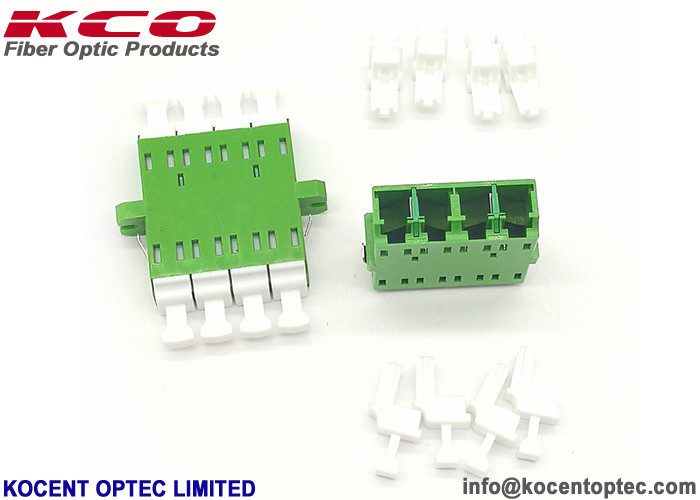

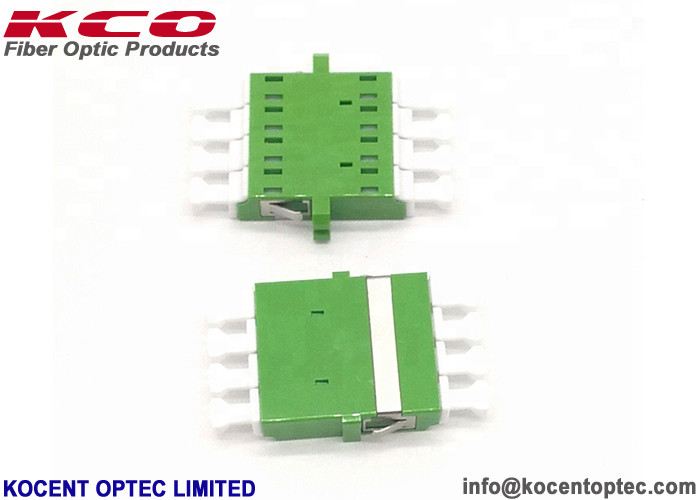

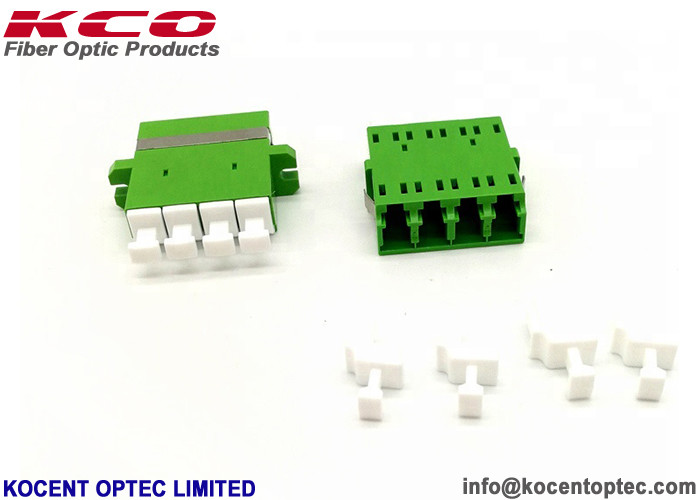

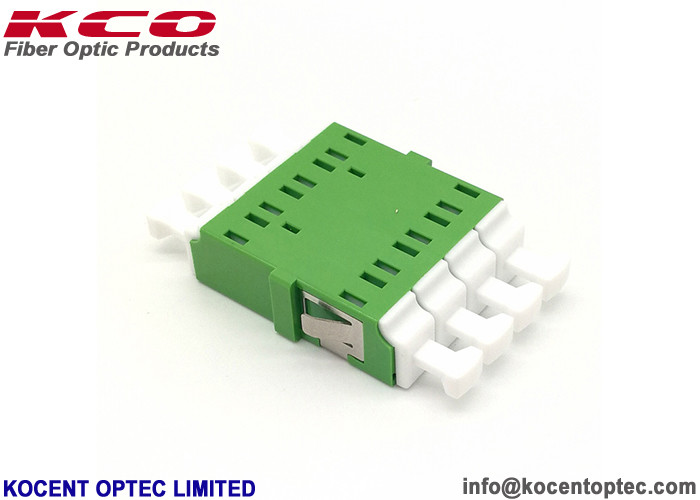

Product pictures:




LC / APC Quad Fiber Optic Adapter Coupler Insertion Loss 0.2dB Plastic Material 0



Reliability testing:

Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.


LC / APC Quad Fiber Optic Adapter Coupler Insertion Loss 0.2dB Plastic Material 1


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: COSCO, HUYNDAI, ...

- Stardard shipping port: Shenzhen, Hongkong, Ningbo


LC / APC Quad Fiber Optic Adapter Coupler Insertion Loss 0.2dB Plastic Material 2
