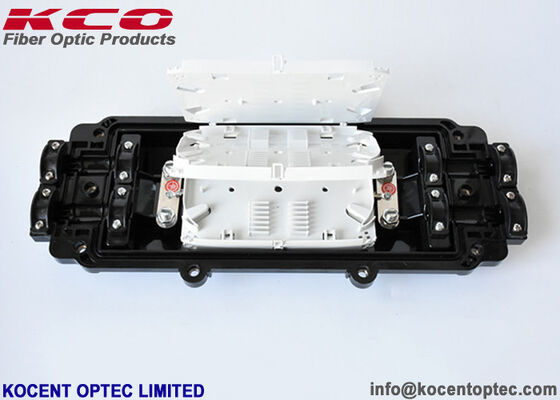

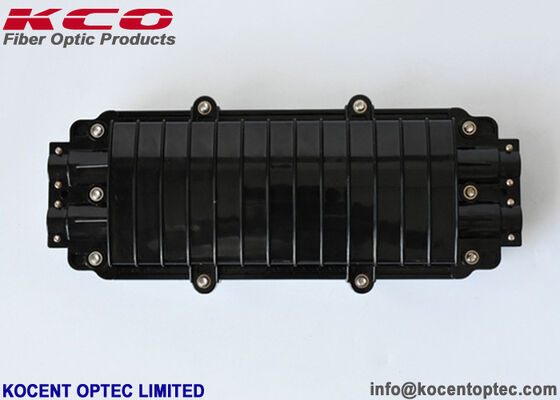

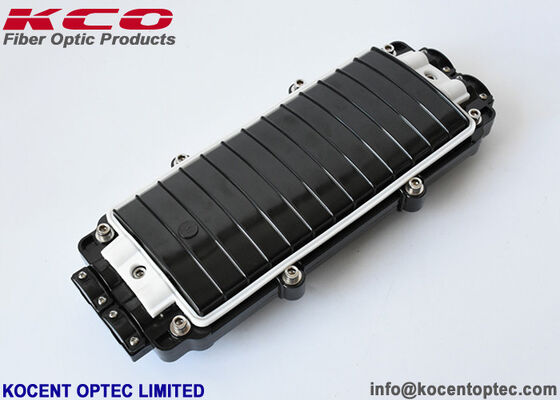

IP67 2 In 2 Out Fiber Optic Splice Closure with ABS PC Material for Inline Fiber Optic Splice Enclosure
Product Details
| Type | Inline Type | Cable Ports | 4 Ports |
|---|---|---|---|
| Cable Diameter | 8.0~22.0mm | Min. Capacity | 12 Cores |
| Max Capacity | 96 Cores | Material | PPR, ABS, PC, PP |
| Highlight | fiber optic joint closure,fibre optic splice closure |
||
Product Description
The 2-in 2-out inline fiber optic splice enclosure (KCO-H0290) is a horizontal-type closure engineered for reliable fiber cable splicing and protection. Constructed from ABS/PC with a mechanical seal, it supports up to 96 cores across a maximum of four flip-style splice trays, making it suitable for pole, buried, manhole, and wall-mounted installations.
Quick Details
- Product Name:Inline / Horizontal Type Fiber Optic Enclosure Box
- Part Number:KCO-H0290
- Cable Entry Ports:2 inports and 2 outports (4 ports total)
- Fiber Capacity:96 cores
- Splice Tray Number:Max. 4 trays
- Splice Tray Capacity:24 cores per tray
- Material:ABS / PC
- Cable Diameter:7.0–22.0 mm
- Working Temperature:-40°C to 65°C
- Packing:10 pcs / carton box
Main Features
- Advanced internal structure design ensures fibers suffer no attenuation.
- Spacious closure interior allows ample room for winding and storing fibers.
- Flip-style fiber splice trays for convenient access and management.
- Curved radius meets international standards.
- Easy and fast to add or reduce splice trays.
- Innovative elastic integrated seal fitting.
- PC material for plastic parts and excellent steel for external fasteners and structural parts.
- Supports reuse and capacity expansion for many cycles.
- Provides electrical connection and disconnection functionality for fiber optic cables.
Product Specifications
| Product Name | Fiber Optic Splice Closure |
|---|---|
| Color | Black |
| Cores | 96 cores |
| Seals | Mechanical seal |
| Material | ABS, PC |
| Cable Out-of-Tube Configuration | Up to four out-of-tube fiber optic cables |
| Port Diameter (mm) | 16–22 mm |
| Fiber Radius of Curvature (mm) | 30 |
| Dielectric Strength (kV) | 1.5 |
| Ambient Temperature (°C) | -40 to +60 |
| Atmospheric Pressure (kPa) | 70–1106 |
| Tensile Strength (N) | >1000 |
| Anti-Stress | >2000 N / 10 cm² stress, time 1 min |
| Scope | Pole, buried, manholes, wall |
Product Pictures
Main Parts
| No. | Name | Quantity | Usage | Remark |
|---|---|---|---|---|
| 1 | Crust | 1 set | Protecting fiber cable splices in whole | |
| 2 | Fusion Splice Tray | Max. 4 trays | Fix fiber, protect heat-shrinkable tube sleeve | |
| 3 | Foundation | 1 set | Fix cable, reinforced core and tray | |
| 4 | Seal Fitting | 1 set | Air-proof between cover and bottom | |
| 5 | Port Plug | 4 pieces | Sealing empty ports | |
| 6 | Valve | 1 set | Pressure measurement, inspection sealing | Configure by user |
Accessories List
| No. | Name of Accessories | Quantity | Usage | Remarks |
|---|---|---|---|---|
| 1 | Heat Shrinkable Tube | — | Protecting fiber splices | Configuration as per capacity |
| 2 | Nylon Tie | — | Fixing fiber with protective coat | Configuration as per capacity |
| 3 | Insulation Tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | |
| 4 | Seal Tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
| 5 | Hanging Hook | 1 set | For aerial use | |
| 6 | Label Tape | 1 piece | Sign fiber | |
| 7 | Spanner | 1 piece | Install bolts of shell | |
| 8 | Desiccant | 1 bag | Desiccating air |
OEM / ODM Service
We offer full OEM and ODM support. Your own brand logo can be applied to the goods, cable, package bag, label, or any other location as required. Our OEM and ODM service is always ready to meet your customization needs.
Packing
- According to standard export packing.
- Carton box, wooden box, wooden pallet.
Shipping
- International express such as UPS, TNT, DHL, etc.
- International air: CA, AA, EA, etc.
- By sea.
