Multimode Beige Fiber Optical Adapter Automatic Shutter Dusty Cap OM1 OM2 OM3 OM4 OM5

Multimode Beige Fiber Optical Adapter Automatic Shutter Dusty Cap OM1 OM2 OM3 OM4 OM5
Multimode Beige Fiber Optical Adapter Automatic Shutter Dusty Cap OM1 OM2 OM3 OM4 OM5 Multimode Beige Fiber Optical Adapter Automatic Shutter Dusty Cap OM1 OM2 OM3 OM4 OM5 Multimode Beige Fiber Optical Adapter Automatic Shutter Dusty Cap OM1 OM2 OM3 OM4 OM5

Large Image :  Multimode Beige Fiber Optical Adapter Automatic Shutter Dusty Cap OM1 OM2 OM3 OM4 OM5

Product Details:
Place of Origin: Guangdong, China
Brand Name: KCO, Kocent Optec Limited
Certification: ISO9001, RoHS
Model Number: KCO-SCU-Shutter-non
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Plastic module, carton box, wooden pallet
Delivery Time: 2~5 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500,000pcs/month
Detailed Product Description
Type: SC/APC Material: Plastic
Chanel Way: 1 Ways Insertion Loss: 0.2dB
Return Loss: 55dB Fiber Mode: Singlemode
P/N: KCO-SCA-Shutter-non Color: Green
High Light:

fibre optic adapter

,

fiber optic adaptor



SC UPC Simplex Auto Shut Adapter / SC Blue Adapter / Fibra Optica Adaptor





Description:

- The fiber optic adapter use to connect between two patch cable, or one patch cable and one pigtail.

- It is available in Single mode (APC and UPC) and Multimode (OM1, OM2, OM3, OM4 and also OM5)

- The SC Connector and Adapter consist of a push-pull style that can be easily detached and attached.

- The SC Connectors and Adapters are widely used for transceiver or general connection use in today's industry.

- Shutters on the adapter open and close automatically when the connector is being inserted into or extracted from the adapter.

- SC is extremely easy-to-use and is safe enough for unskilled workers.

- In addition, the SC Auto Shutter Connector can be used with a regular SC adapter.


Applications

- FTTx (FTTA, FTTB, FTTC, FTTO, FTTH,..)

- CATV
- Telecommunication networks
- Test equipment
- Metro
- Local Area Networks(LANs)
- Data processing networks



Features
- Low insertional loss and back reflection loss
- High prcision alignment
- Nickel plated brass body
- Use in Single-mode or Multimode applications
- Choice of housing material and sleeve material
- ISO9001:2008, ROHS compliance


Specification:

Product Name

Green Color Quad LC APC Shutter Adapter

Singlemode Mid Coupler 4 Ways

Part Number KCO-SCA-Shutter-non
Inserion Loss ≤0.2dB
Durability >1000 times
Operating Temp -40~70°C
Material Plastic
Application FTTx, LAN, CATV, Telecom
Way 1 way
Connector Type SC-SC
Polish Type

UPC

APC

Fiber Mode

Singlemode;

Multimode Om1;  OM2; OM3; OM4; OM5

Color

SM: Blue,Green

MM: Beige

OM3: Aqua

OM4: Violet

OM5: Lime green

Core 4 cores
Flange with flange/with ear;
Form of sale Neutral/ OEM/ ODM
Use Fiber connection
Custom Design welcom
Sample Lead Time within 7 days after confirmation



Reliability testing:

Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB

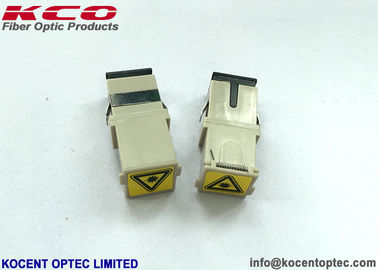

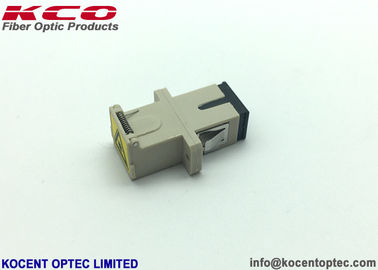

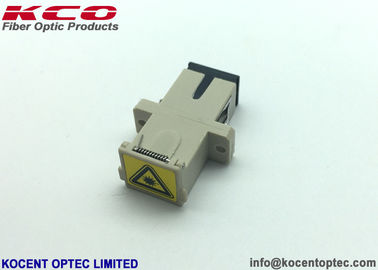

Product pictures:

Multimode Beige Fiber Optical Adapter Automatic Shutter Dusty Cap OM1 OM2 OM3 OM4 OM5 0

Multimode Beige Fiber Optical Adapter Automatic Shutter Dusty Cap OM1 OM2 OM3 OM4 OM5 1

Multimode Beige Fiber Optical Adapter Automatic Shutter Dusty Cap OM1 OM2 OM3 OM4 OM5 2

Multimode Beige Fiber Optical Adapter Automatic Shutter Dusty Cap OM1 OM2 OM3 OM4 OM5 3
