Pre-Polished SC APC Fiber Optic Fast Connector with G657 Fiber Type and 55mm Length for Quick Assembly

  • Pre-Polished SC APC Fiber Optic Fast Connector with G657 Fiber Type and 55mm Length for Quick Assembly
  • Pre-Polished SC APC Fiber Optic Fast Connector with G657 Fiber Type and 55mm Length for Quick Assembly
  • Pre-Polished SC APC Fiber Optic Fast Connector with G657 Fiber Type and 55mm Length for Quick Assembly
  • Pre-Polished SC APC Fiber Optic Fast Connector with G657 Fiber Type and 55mm Length for Quick Assembly
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-SCA-1803
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-SCA-1803 Color Green
Insertion Loss 0.3dB Return Loss 40dB
3D Pass Length 50mm 55mm 60mm
Polishing Type APC Fiber Mode Single Mode
Fiber Type G652, G657 Cable Indoor Cable, Ftth Drop Cable
Highlight

SC APC Fiber Optic Fast Connector

,

FTTH Fiber Optic Fast Connector

,

G657 Quick Assembly Fiber Connector
Leave a Message
Product Description
SC APC FTTH Fiber Optic Fast Connector G657 KCO-SCA-1803
The KCO-SCA-1803 SC/APC FTTH Quick Assembly Fiber Optic Fast Connectors are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensures precision fiber alignment, with a factory pre-cleaved fiber stub and proprietary index-matching gel for immediate low loss termination to single-mode or multimode optical fibers.
Applications
  • Metro
  • Test Equipment
  • Fiber to the building (FTTB)
  • Fiber To The Office (FTTO)
  • Fiber to The Home (FTTH)
  • Cable Television (CATV)
  • Asynchronous Transmission Mode (ATM)
  • Passive optical networks (PON)
  • Local Area Networks (LAN)
Key Features
  • Fast and easy installation with no special assembly tools required
  • Field-reconnectable with no epoxy or polishing needed
  • Compatible with 3mm drop cable and 3x2mm flat cable
  • No matching gel enables low reflection and high reliability
  • Splicing point is inside the connector - no additional splicing work
  • One-touch, push-pull assembly system
  • Fusion splice position protected by heat shrinkable tube
  • 100% qualified for prolonged use life and reduced maintenance costs
  • Operator can confirm splicing success via fusion splicing machine monitor

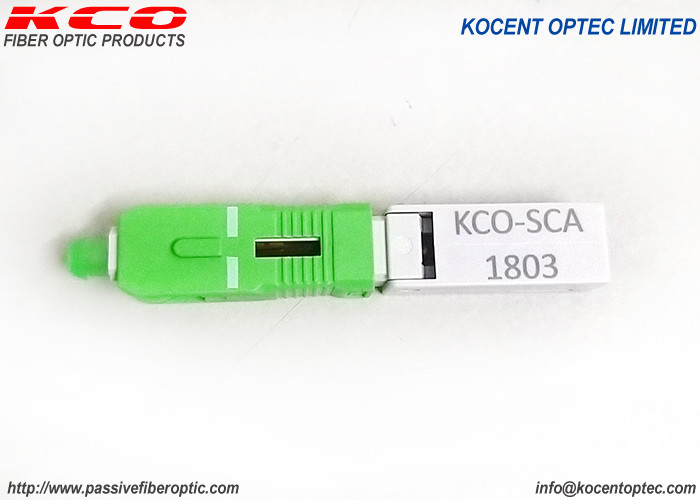

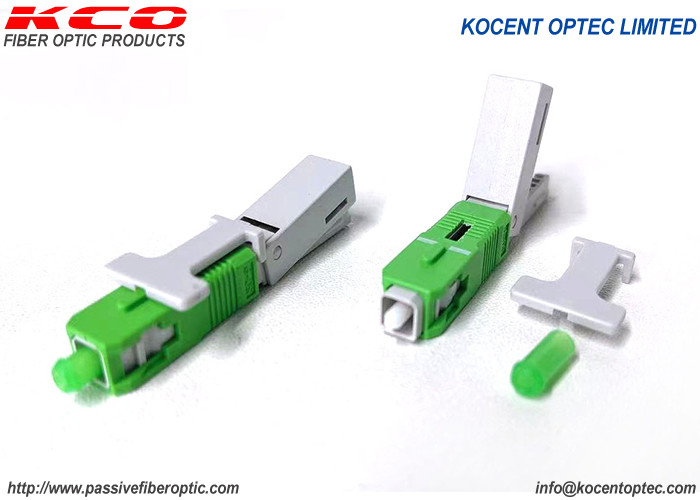

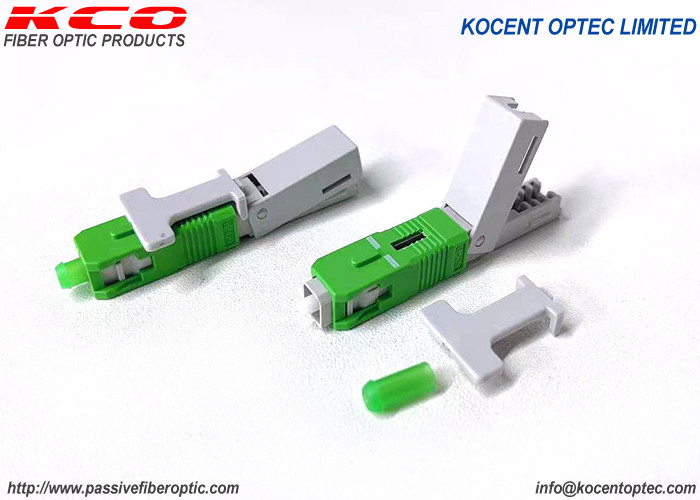

Product Image
Pre-Polished SC APC Fiber Optic Fast Connector with G657 Fiber Type and 55mm Length for Quick Assembly 0
Technical Specifications
Item KCO-SCA-1803
Suitable Cable OD 2.0mm, 3.0mm, 0.9mm indoor 2*3mm drop cable
Optical fiber diameter 125μm
Tight buffer diameter 900μm
Fiber mode Single & multi mode
Operation time About 120s (no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm)
Return loss > 40dB
Tensile strength >50 N
Using temperature -40~+75°C
On-line tensile strength (20 N) IL ≤ 0.2dB
Mechanical durability (500 times) IL ≤ 0.2dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times) IL ≤ 0.2dB
Delivery Time
Material Preparation Time: 3 days (or inventory)
Production & Assembly Time: 7 days
Testing & Packaging Time: 2 days
Total Delivery Time: 12 days in 50,000pcs for safe delivery lead time.
Faster delivery options available upon negotiation.
OEM/ODM Service
We offer custom branding options for cables, packaging bags, labels, or any visible surface. Contact our sales team for personalized OEM/ODM solutions.
Packing
  • Standard Export Packing
  • Carton box, wooden box, wooden pallet
Shipping Options
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • Sea freight
  • Standard export sea ports: Shenzhen, Hongkong, Ningbo
  • Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
