96 Cores IP65 Vertical Dome Type Fiber Optic Splice Closure and Fiber Optic Joint Closure for Outdoor FTTH Networks

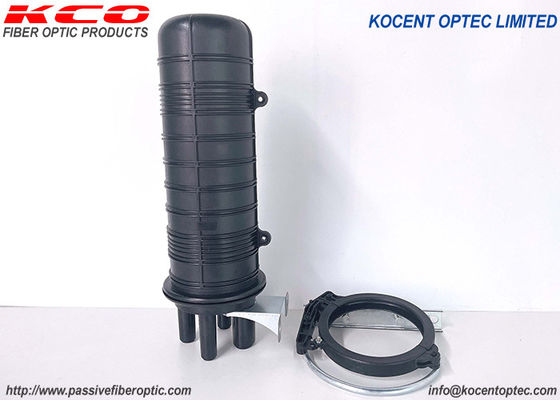

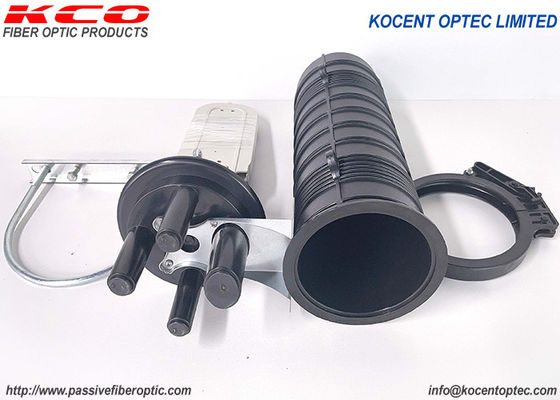

The KCO-V13-96-ZG is a dome-type (vertical) fiber optic splice closure designed for outdoor applications. It provides a secure, sealed environment for splicing, connecting, and storing optical fibers in both outside plant and indoor installations. The closure accommodates 24-core, 48-core, and 96-core configurations, making it a versatile solution for a wide range of fiber network deployments.

Fiber optic splice closures are essential devices that provide space and mechanical protection for spliced fibers. The KCO-V13-96-ZG combines a robust engineering-plastic housing with a reusable sealing system, ensuring reliable performance in demanding environments while remaining easy to install and maintain.

• The casing is made of quality engineering plastics (PC/ABS/PP) with excellent resistance to acid, alkali, salt, and aging, offering a smooth appearance and reliable mechanical structure.
• Reliable mechanical design resists harsh outdoor conditions, intensive climate changes, and demanding working environments.
• Suitable for both ribbon-type and common optical cables.

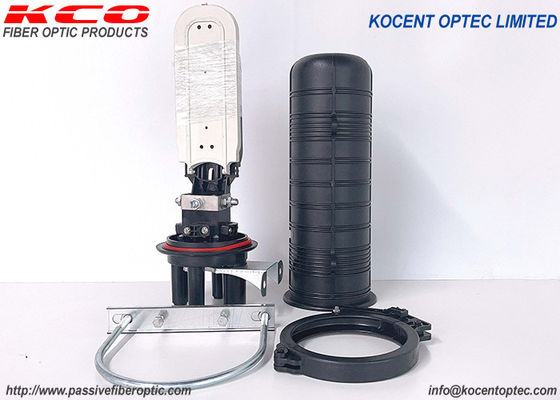

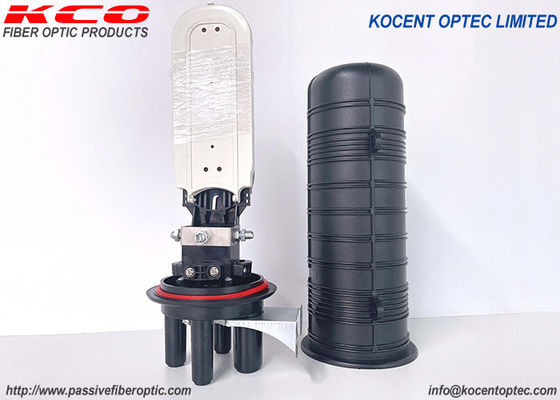

• Splice trays are turn-able like booklets and provide adequate curvature radius and space for winding optical fiber, ensuring a minimum bend radius of 40 mm.
• Each optical cable and fiber can be operated individually for convenient maintenance.
• Compact volume with large capacity and easy maintenance.
• Elastic rubber seal rings deliver excellent sealing and sweat-proof performance; the casing can be opened repeatedly without air leakage and requires no special tools.
• An air valve is provided to check sealing performance.

• Ageing resistance: Good stability against thermal exposure, thermal radiation, air, and ozone.
• Corrosion resistance: Strong resistance to acid, salt, oxidants, and aliphatic hydrocarbons.
• Sealing technology: Reusable open-type seal assembly ensures reliable airtight and waterproof performance.
• Mechanical properties: Withstands harsh conditions including vibration, impact, tensile cable distortion, and strong temperature changes.
• Locking devices: No special tools required; easy to install and repeatedly open.
• Follow function: Laminated clamshell structure allows operation on one splice tray without removing the others.

• FTTH
• FTTA
• FTTB
• FTTO
• Telecom
• CATV
• WAN
• LAN

1. Stretch: The sealed and inflated box body (60 kPa ± 5 kPa) withstands 1000 N axial tension for 1 minute with no change in air pressure.
2. Flattening: The sealed and inflated box body (60 kPa ± 5 kPa) bears a horizontal uniform pressure of 2000 N / 10 cm; the pipe withstands 600 N / 10 cm with no change in air pressure.
3. Impact: The sealed and inflated box body (60 kPa ± 5 kPa) is struck three times by a 1 kg steel ball dropped from 1.6 m; the box does not crack and pressure remains unchanged.
4. Voltage resistance: At a water depth of 1.5 m, soaked for 24 hours, withstands 15 kV DC for 1 minute without breakdown or arcing.
5. High-temperature test: The sealed and inflated box (60 kPa ± 5 kPa) at +60 °C for 2 hours shows no deformation and no leakage.
6. Low-temperature test: The sealed and inflated box (60 kPa ± 5 kPa) at -40 °C for 2 hours shows no deformation and no leakage.
7. Temperature cycle test: The sealed and inflated box (60 kPa ± 5 kPa) undergoes three cycles at -40 °C with 2 hours constant temperature at each point; pressure drop amplitude ≤ 5 kPa.
8. Bending: The sealed and inflated box (60 kPa ± 5 kPa) under a tension load of 150 N and bending angle of ±45° for 10 cycles shows no change in air pressure.
9. Reverse (torsion): The sealed and inflated box (60 kPa ± 5 kPa) under a torque of 50 N·m and torsion angle of +90° for 10 cycles shows no change in air pressure.
10. Sealing performance: At a gas pressure of 100 kPa ± 5 kPa, water bath soak for 15 minutes shows no bubbles escaping; no change after 24 hours under pressure.
11. Insulation resistance: At a water depth of 1.5 m, soaked for 24 hours, insulation resistance ≥ 2 × 10⁴ MΩ.

We offer full OEM and ODM support. If you would like your own brand logo displayed on the goods — including cable, package bag, label, or any other location — our OEM and ODM service is always ready to accommodate your requirements. Please contact our sales team for the best support.

• According to standard export packing.
• Carton box, wooden box, wooden pallet.

• International express such as UPS, TNT, DHL, etc.
• International air: CA, AA, EA, etc.
• By sea.
• Standard export sea port: Shenzhen, Hong Kong, Ningbo.
• Standard export airport: Shenzhen, Hong Kong, Hangzhou, Shanghai.
