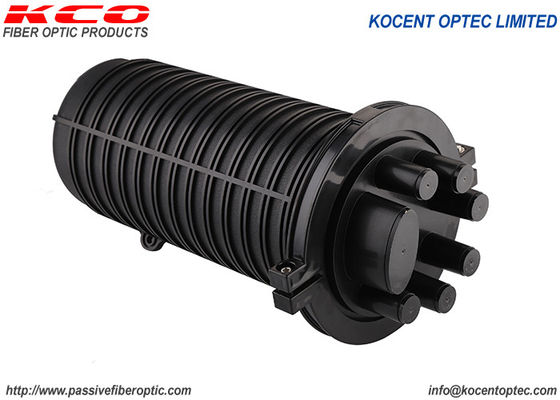

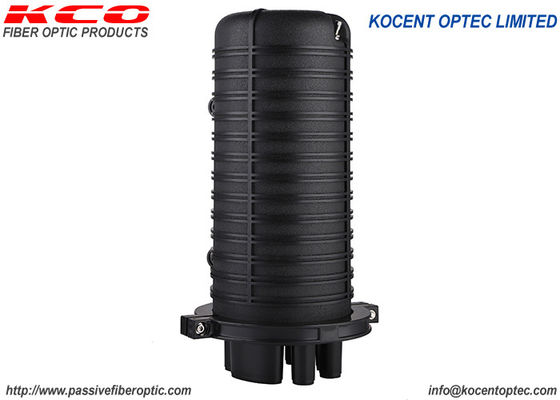

KCO-J99H-288 1in 7out Vertical Pole-mount FTTA 288core Optica Fibra Enclosure Junction Box

KCO-J99H-288 1in 7out 8port Vertical Pole-mount FTTA 288core Optica Fibra Enclosure Junction Box

Description:

- KCO-J99H-288 fiber optic splice clusre box is mainly used for optical fiber connection and protection in outdoor.

- It is suitable for the connection of manhole, underground, pole mount.

- It is waterproof, match IP67 grade.

- The splice closure cable port is hear shrinkable type.

- It can be opened again and reused after installation.

- Each optical cable and fiber can be operated individually.

- The box body and base are sealed with hoops and rubber.

- The splice closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.

- The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.

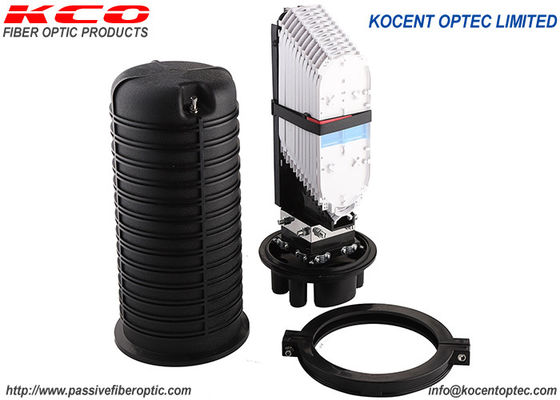

- The splice trays is inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm.

Applications:

- Metro

- Bank

- Data center

- Telecom network

- 3G, 4G, 5G network

- FTTx (FTTH, FTTA, FTTB, FTTO, FTTC, ...)

- WAN, LAN

- PON, GPON

- CATV networks

- Local area networks
- Telecommunication networks
- Data communications networks

Features:

- 7 cable port: 1 input, 6 output

- Water proof grade: IP67

- Great aging resistant ability
- High mechanical performance

- Excellent sealing performance

- High-strength engineering plastic shell

- Does not require special tools, easy to install and open the duplicate.
- Endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes

Specification:

Main performance:
- Stretch: the box body inflated after sealing 60KPa ± 5Kpa, can withstand 1000N axial tension, to maintain 1 min, no change in air pressure;
- Flattening: The box body is sealed and inflated at 60KPa ± 5Kpa, and it can bear the horizontal uniform pressure of 2000N / 10cm. The pipe can withstand 600N / 10cm without change of air pressure.
- Hit: the box after sealing inflatable 60KPa ± 5Kpa, in the box above the 1.6 drop 1 kg steel ball, the impact of three times, the box does not crack, pressure no change;
- Bending: the box after sealing inflatable 60KPa ± 5Kpa, tension load 150N, bending angle ± 45°, 10 cycles, no change in air pressure;
- Reverse: the box after sealing inflatable 60KPa ± 5KPa, torque 50N.m, torsion angle +90°, 10 cycles, no change in air pressure;
- Sealing performance: gas pressure 100kPa ± 5kPa, water bath soak 1 5min, no bubbles to escape, no change after 24hr pressure;
- Insulation resistance: water depth 1.5m, soak 24hr, the insulation resistance ≥ 2 × 104MΩ;
- Resistance to voltage intensity: water depth 1.5m, soak 24hr, 15KV DC 1min without breakdown, no arcing phenomenon;
- High temperature test: the box after sealing inflated 60kPa ± 5kPa, at + 60 ℃ for 2hr, the box without deformation, no leakage;
- Low-temperature test: box sealed inflatable 60kPa ± 5kPa. The temperature at -40 ℃ for 2hr, the box without deformation, no leakage;
- Temperature cycle test: the box after sealing inflatable 60kPa ± 5kPa. -40 ℃ each point constant temperature 2hr, three cycles, the pressure drop amplitude ≤ 5kPa.
