5km 10km 15km 20km 25km Single Mode G652D OTDR Testing Fiber Optic Launch Cable

  • 5km 10km 15km 20km 25km Single Mode G652D OTDR Testing Fiber Optic Launch Cable
  • 5km 10km 15km 20km 25km Single Mode G652D OTDR Testing Fiber Optic Launch Cable
  • 5km 10km 15km 20km 25km Single Mode G652D OTDR Testing Fiber Optic Launch Cable
  • 5km 10km 15km 20km 25km Single Mode G652D OTDR Testing Fiber Optic Launch Cable
Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-LC-xxkm-FCA
Minimum Order Quantity 1pc
Price 10$-80$
Packaging Details carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T,Western Union,L/C
Supply Ability 200,000 pcs/ month
Product Details
P/N KCO-LC-xxkm-FCA Application OTDR Testing, Cable Testing
Core Number Simplex Connector F/APC
Length Customized Fiber Single Mode G652D
Leave a Message
Product Description
5km 10km 15km 20km 25km Single Mode G652D OTDR Testing Fiber Optic Launch Cable
Product Description
  • OTDR Testing Fiber Optic Launch Cable (also known as a pulse suppressor, dead zone eliminator, or fiber ring) is a critical testing component placed between the Optical Time Domain Reflectometer (OTDR) and the fiber under test (FUT).
  • It provides a known reference spool of fiber that shifts the OTDR’s initial dead zone completely into the launch box, allowing the technician to accurately measure the insertion loss and reflectance of the first near-end connector pair
OTDR Testing Fiber Optic Launch Cable Features
  • Length Determination: The length must exceed the distance of the OTDR's launch pulse/dead zone.
  • Premise/FTTx Testing (Short pulses, ≤ 500 ns): Generally utilizes lengths between 150 meters to 300 meters.
  • Broadband / Long-Haul Testing (Longer pulses, up to 20 μs): Requires lengths from 500 meters to over 2,000 meters.
  • Fiber Geometry Matching: The internal glass must identically match the network link-under-test to prevent mode-field mismatch or artificial loss signatures. Standard specifications include Singlemode (G652D or bend-insensitive G657A1 / G657A2) and Multimode (50/125μm OM3/OM4 or 62.5/125μm OM1).
  • Connector Configuration: Lead ends are typically distinct. Side A mates directly with the OTDR output bulkhead (often SC/APC to minimize instrument backreflection), while Side B must match the exact polish type (UPC or APC) and form factor (SC, LC, FC, ST) of the patch panel or distribution frame.
  • OTDR Testing Fiber Optic Launch Cable Length: 500m, 1km, 2km, 5km, 10km, 15km, 20km, 25km, 30km, 50km
  • OTDR Testing Fiber Optic Launch Cable Connector type: FC/APC, SC/APC, LC/APC, E2000/APC, etc
Technical Specifications
Product Name

OTDR Launch Cable Box

OTDR Dead Zone Eliminator

Fiber ring

OTDR launch cable
Fiber Type

9/125 Singlemode

50/125 Multimode

62.5/125 Multimode
Length 0.5km, 1km, 2km, 5km, 10km, 15km, 20km, 25km, 30km, 50km
Box Material Plastic
Connector FC/APC, SC/APC, LC/APC, E2000/APC, etc
Typical Loss < 0.5dB@1310nM for 1000 meters
Dimension 238x141x66mm
Weight 600gram

Precision Specifications
  • Apex offset: 0 - 50 um
  • Radius of curvature 7 - 25 nm
  • Fiber roughness: 0 - 25 nm
  • Ferrule roughness: 0-50 nm

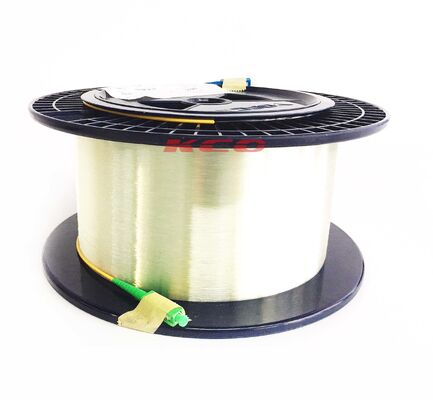

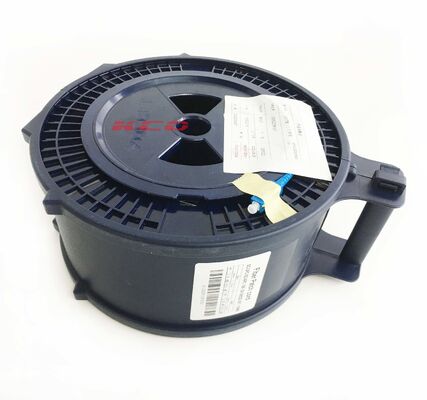

Product Photo:
5km 10km 15km 20km 25km Single Mode G652D OTDR Testing Fiber Optic Launch Cable
5km 10km 15km 20km 25km Single Mode G652D OTDR Testing Fiber Optic Launch Cable
OEM/ODM Services

Custom branding available on cables, packaging, labels, or other components. Contact our sales team for OEM/ODM support.

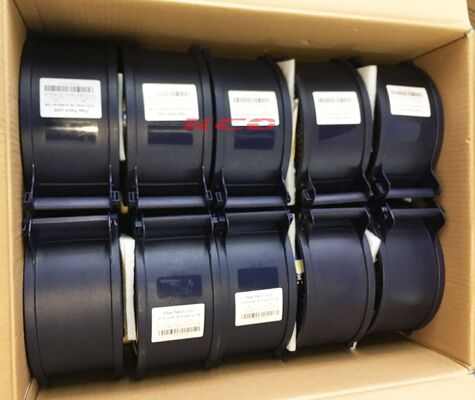

Packing & Shipping
  • Standard export packing options: carton box, wooden box, wooden pallet
  • Shipping methods: International express (UPS, TNT, DHL), air freight, sea freight
  • Export ports: Shenzhen, Hongkong, Ningbo
  • Export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
