YOFC SMF G657A1 OTDR Optical Fiber Launch Cable Reel Dead Zone Eliminator 25km 30km 50km

  • YOFC SMF G657A1 OTDR Optical Fiber Launch Cable Reel Dead Zone Eliminator 25km 30km 50km
  • YOFC SMF G657A1 OTDR Optical Fiber Launch Cable Reel Dead Zone Eliminator 25km 30km 50km
  • YOFC SMF G657A1 OTDR Optical Fiber Launch Cable Reel Dead Zone Eliminator 25km 30km 50km
  • YOFC SMF G657A1 OTDR Optical Fiber Launch Cable Reel Dead Zone Eliminator 25km 30km 50km
Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-LC-xxkm-FCA
Minimum Order Quantity 1pc
Price 10$-80$
Packaging Details carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T,Western Union,L/C
Supply Ability 200,000 pcs/ month
Product Details
P/N KCO-LC-xxkm-FCA Application OTDR Testing, Cable Testing
Core Number Simplex Connector F/APC
Length Customized Fiber Single Mode G652D
Leave a Message
Product Description
YOFC SMF G657A1 OTDR Optical Fiber Launch Cable Reel Dead Zone Eliminator 25km 30km 50km
Product Description
  • OTDR Testing Fiber Optic Launch Cable (also known as a pulse suppressor, dead zone eliminator, or fiber ring) is a critical testing component placed between the Optical Time Domain Reflectometer (OTDR) and the fiber under test (FUT).
  • It provides a known reference spool of fiber that shifts the OTDR’s initial dead zone completely into the launch box, allowing the technician to accurately measure the insertion loss and reflectance of the first near-end connector pair.
  • 20 km G.657A1 OTDR Optical Fiber Launch Cable Reel is an ultra-long fiber delay line typically used for long-haul link simulation, equipment calibration, and pulse suppression when analyzing long-distance trunks with wide pulse widths.
  • Winding 20km of continuous glass into a compact portable case creates high structural tension and micro-bending risk. Utilizing YOFC G657A1 bend-insensitive fiber ensures that the tight, layered internal winding does not create artificial macro-bend attenuation or trace anomalies when testing at sensitive wavelengths like 1550 nm and 1625 nm.

OTDR Optical Fiber Launch Cable Reel Main Function:

  • Absolute Near-End Connector Measurement
  • High-Power Pulse Suppression for Long-Haul Spans
  • Precision Network and Link Simulation
  • Eliminating Winding Anomalies (The G.657A1 Advantage)
OTDR Optical Fiber Launch Cable Reel Features
  • Length Determination
  • Premise/FTTx Testing (Short pulses, ≤ 500 ns)
  • Broadband / Long-Haul Testing (Longer pulses, up to 20 μs)
  • Fiber Geometry Matching
  • Connector Configuration: FC/APC, SC/APC
  • OTDR Testing Fiber Optic Launch Cable Length: 500m, 1km, 2km, 5km, 10km, 15km, 20km, 25km, 30km, 50km
  • OTDR Testing Fiber Optic Launch Cable Connector type: FC/APC, SC/APC, LC/APC, E2000/APC, etc
Technical Specifications
Product Name

OTDR Launch Cable Box

OTDR Dead Zone Eliminator

Fiber ring

OTDR launch cable
Fiber Type

9/125 Singlemode

50/125 Multimode

62.5/125 Multimode
Length 0.5km, 1km, 2km, 5km, 10km, 15km, 20km, 25km, 30km, 50km
Box Material Plastic
Connector FC/APC, SC/APC, LC/APC, E2000/APC, etc
Typical Loss < 0.5dB@1310nM for 1000 meters
Dimension 238x141x66mm
Weight 600gram


Precision Specifications
  • Apex offset: 0 - 50 um
  • Radius of curvature 7 - 25 nm
  • Fiber roughness: 0 - 25 nm
  • Ferrule roughness: 0-50 nm

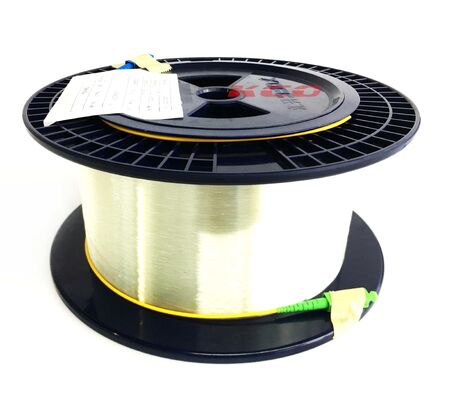

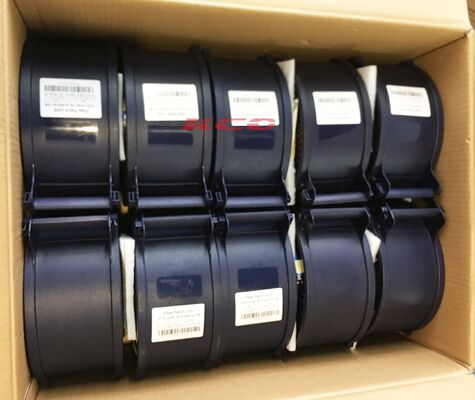

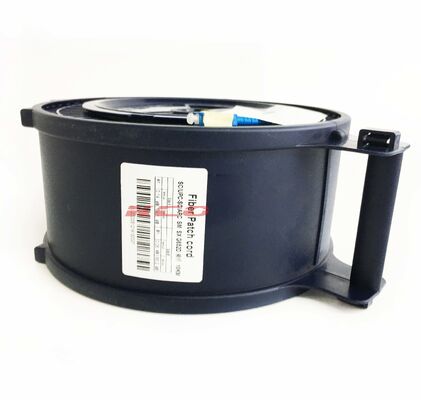

Product Photo:
YOFC SMF G657A1 OTDR Optical Fiber Launch Cable Reel Dead Zone Eliminator 25km 30km 50kmYOFC SMF G657A1 OTDR Optical Fiber Launch Cable Reel Dead Zone Eliminator 25km 30km 50kmYOFC SMF G657A1 OTDR Optical Fiber Launch Cable Reel Dead Zone Eliminator 25km 30km 50kmYOFC SMF G657A1 OTDR Optical Fiber Launch Cable Reel Dead Zone Eliminator 25km 30km 50km
OEM/ODM Services

Custom branding available on cables, packaging, labels, or other components. Contact our sales team for OEM/ODM support.

Packing & Shipping
  • Standard export packing options: carton box, wooden box, wooden pallet
  • Shipping methods: International express (UPS, TNT, DHL), air freight, sea freight
  • Export ports: Shenzhen, Hongkong, Ningbo
  • Export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
