Round D Type FC Fiber Optic Adapter 100% Test Low Insertion Loss OEM

  • Round D Type FC Fiber Optic Adapter 100% Test Low Insertion Loss OEM
  • Round D Type FC Fiber Optic Adapter 100% Test Low Insertion Loss OEM
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number FC/UPC, FC/APC, FC/PC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Plastic module, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 500,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type FC/UPC, FC/APC, Hybrid Material Plastic, Metal
Sleeves Material Ceramic (ZrO2) Chanel Way Simplex, Duplex
Insertion Loss 0.2dB Return Loss 55dB
Highlight

fibre optic adapter

,

fiber optic adaptor
Leave a Message
Product Description

Round D Type FC Fiber Optic Adapter 100% Test Low Insertion Loss OEM





We can provide FC fiber optic adapters with big D type, small D type, square type, hybrid type. Also OEM Service is available, such as package, label, etc all can be customized. We can supply all type of fiber optic adapters such as SC, ST, LC, DIN, MU, MTRJ etc. All our fiber optic adapters meet RoHS Compliant, and 100% test Insert loss before shipment.



FC fiber optic adapters Introductions:

- For FC Fiber Adapters we can do Big D type, Small D type, and square type.

- FC Round Adapter has Big D Type 13mm, Small D type 11mm two type, both have metal housing.

- Single mode and multimode, UPC and APC all is available.

- These FC Fiber Optic mating sleeves have phosphor, Bronze or zirconia sleeves for customer choose.

- FC fiber optic adapters widely used in patch panel, fiber adapter plate, ODF, Wall mounted terminal box and so on.



Advantage of the fiber optic adapters:

- Our range of fiber optic cable adapter can consistent good quality as is proven by repeated tests. It is interchangeable with similar devices built to the same standards.

- Low Insertion Loss means there is little reduction in light intensity along the transmission router.

- High Reliability

- Compliant with the IEC and ROSH standards



FC fiber optic adapters Application:

- Testing instruments

- Connection between devices

- Connection between fiber optic patch cords

- CATV, MANS, WANS

- FTTX, FTTH

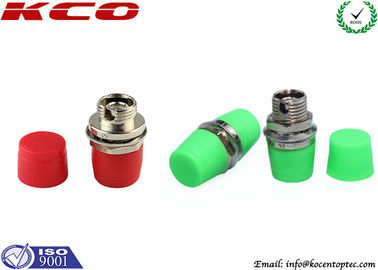

FC adapters product pictures:

Round D Type FC Fiber Optic Adapter 100% Test Low Insertion Loss OEM 0

Specification of fiber optic adapters:



Parameter Specifications
Mating Connector Type SC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc
Fiber Type of Connector Single Mode Multimode
Adapter Color Blue, green, metallic Beige, Metallic
Testing Wavelength 1310nm,1550nm 850nm,1300nm
Insert Loss Typical≤0.15dB, max≤0.2dB Typical≤0.15dB, max≤0.2dB
Repeatability ≤0.10dB
Exchangeability ≤0.20dB
Durability 1000Mating, max≤0.20dB
Housing Material Plastic or metal
Operating Temperature -20°C～+70°C
Storage Temperature -40°C～+85°C
Alignment Sleeve Ceramic (ZrO2) or customized
Channel Number Simplex, duplex, quad .



Reliability testing:



Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

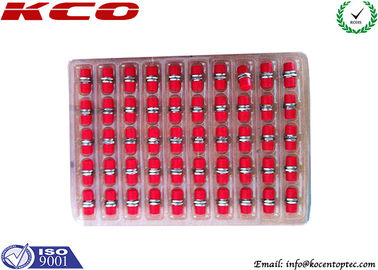

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
