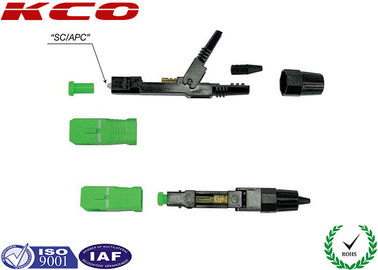

SC/APC Single Mode Fiber Optic Fast Connector for 0.9mm Indoor Cable Field Assembly Quick Connector

  • SC/APC Single Mode Fiber Optic Fast Connector for 0.9mm Indoor Cable Field Assembly Quick Connector
  • SC/APC Single Mode Fiber Optic Fast Connector for 0.9mm Indoor Cable Field Assembly Quick Connector
  • SC/APC Single Mode Fiber Optic Fast Connector for 0.9mm Indoor Cable Field Assembly Quick Connector
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number SC/APC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details plastic module, PE bag, Carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month
Product Details
Connector Type SC/APC Cable Available 0.9mm Indoor Cable
Color Green Wave Length 1260~1650nm
Application FTTH, CATV Fiber Mode Single Mode, SM
Highlight

ftth fast connector

,

quick connect fiber optic connectors
Leave a Message
Product Description
Product Overview

The Green Optics Fiber Fast Connector (Single Mode SC/APC) is a pre-polished, field-installable connector designed for rapid and reliable fiber optic termination. Engineered for FTTH access networks, it eliminates the need for gluing, polishing, or specialized assembly tools, enabling efficient on-site installation with consistent optical performance.

Quick Details
  • Product Name: SC/APC 0.9mm Fiber Optic Fast Connector
  • Ferrule End-Face: APC
  • Ferrule Size: 2.5mm
  • Structure: Pre-polished, Un-polished
  • Connector Type: SC
  • Fiber Compatibility: G652D, G657A
  • Cable Diameter: 0.9mm indoor fiber optic cable
Product Introduction

Fiber optic fast connectors — also known as quick connectors, field assembly connectors, or fast assembly connectors — represent a new generation of fiber termination technology designed for FTTH deployments. They provide both open-flow and pre-cast product options, with optical and mechanical specifications that fully meet standard optical fiber connector requirements.

The connector features a unique crimping position structure that requires no gluing, no polishing, and no consumables. Its pre-installed fiber design simplifies field installation, allowing technicians to terminate optical fiber ends quickly and reliably. The connectors mechanically couple and align fiber cores so light can pass with minimal loss due to reflection or misalignment.

Applications & Compatibility

Quick assembly connectors are widely used in FTTH access optical networks. They are available for both single mode and multimode fibers, and are suitable for 2×3.0mm drop cable as well as 0.9mm, 2.0mm, and 3.0mm indoor fiber optic cables.

Available connector types include SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, and ST/UPC. All fiber optic fast connectors meet RoHS compliance standards, and every unit undergoes 100% insertion loss testing before shipment.

Key Features
  • No special assembling tool required
  • Quick and easy assembly process
  • Reusable — repeat operation up to 300 times
  • Integrated casing protection prevents connector impact damage
  • Can be installed in approximately two minutes
  • Power-saving — no hot melting required
  • No gluing or polishing process needed
Product Image

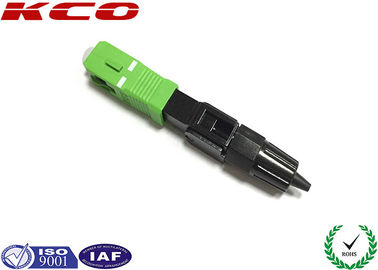

Green Optics SC/APC single mode fiber optic fast connector with green housing and pre-polished ferrule
Specifications
Applicable For Drop cable, Indoor cable (0.9 / 2.0 / 3.0mm)
Optical Fiber Diameter 125μm
Tight Buffer Diameter 250μm
Fiber Mode Single mode
Operation Time About 100s (no fiber cut)
Insert Loss ≤ 0.3dB
Return Loss ≥ 50dB
Fastening Strength of Naked Fiber > 5N
Fastening Strength of Naked Fiber Holder > 10N
Tensile Strength > 50N
Using Temperature -40°C ~ +75°C
On-line Tensile Strength (20N) IL ≤ 0.5dB, RL ≤ 5dB
Mechanical Durability (500 times) IL ≤ 0.5dB, RL ≤ 5dB
Drop-off Test (drop-off height 4m, once per direction, totally 3 times) IL ≤ 0.5dB, RL ≤ 5dB
OEM / ODM Service

We offer full OEM and ODM services. If you wish to display your own brand logo on the goods — including cable, package bag, label, or any other location — we can accommodate your requirements. Our OEM and ODM service is always ready to assist.

Packing & Shipping
Packing

According to standard export packing: carton box, wooden box, or wooden pallet.

Shipping
  • International express such as UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
