24 Cores Inline Type Waterproof Fiber Optic Splice Closure Fiber Optic Splice Enclosure for FTTH Networks

  • 24 Cores Inline Type Waterproof Fiber Optic Splice Closure Fiber Optic Splice Enclosure for FTTH Networks
  • 24 Cores Inline Type Waterproof Fiber Optic Splice Closure Fiber Optic Splice Enclosure for FTTH Networks
  • 24 Cores Inline Type Waterproof Fiber Optic Splice Closure Fiber Optic Splice Enclosure for FTTH Networks
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number Madidi-ZT-Z14
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T,L/C
Supply Ability 5,000pcs/week
Product Details
Type Inline Type Cable Ports 4 Ports
Cable Diameter 8.0~22.0mm Min. Capacity 4 Cores
Max Capacity 96 Cores Material PPR, ABS, PC, PP
Highlight

fiber optic joint closure

,

fibre optic splice closure
Leave a Message
Product Description
Product Overview

The Madidi-ZT-Z14 is a 24-core, red-colored, waterproof fiber optic splicing joint box designed for aerial and buried applications. This inline-type closure delivers reliable protection for fiber splices in demanding outdoor environments, supporting up to 96 cores with a maximum of 4 splice trays.

Key Specifications
  • Product Name:Inline type fiber optic splicing joint box
  • Part Number:Madidi-ZT-Z14
  • Dimensions:480 × 160 × 105 mm
  • Weight:Approx. 2.2 kg
  • Cable Entry Ports:4 ports (2 in / 2 out)
  • Fiber Capacity:96 cores
  • Splice Tray Number:Max. 4 trays
  • Material:ABS / PC / PPR / PP Plastic
  • Cable Diameter:7.0 – 22.0 mm
  • Working Temperature:-40 °C to 65 °C
Applications
  • FTTH access networks
  • Telecommunication networks
  • CATV networks
  • Data communications networks
  • Local area networks
  • Aerial, direct buried, underground, pipeline, hand-hole, duct mounting, and wall mounting installations
Features
  • Excellent corrosion resistance
  • Suitable for harsh environments
  • Anti-lighting protection
  • Superior waterproof performance
Product Images

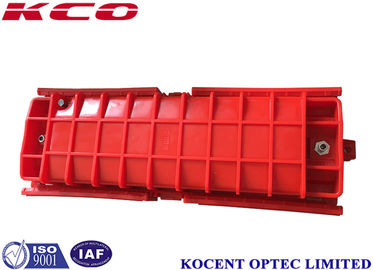

Madidi-ZT-Z14 red inline fiber optic splice closure, front view showing sealed housing and cable entry ports

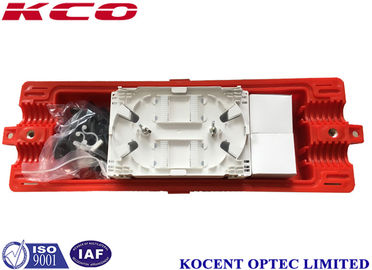

Madidi-ZT-Z14 red fiber optic splicing joint box, alternate angle showing splice tray and port configuration
Madidi Series Fiber Optic Splicing Closure Joint Box
P/N Color Cable Port Size Weight Splice Tray Number Capacity
Madidi-ZT-Z13 Red 2 in 2 out 480 × 160 × 105 mm 2.2 kg Max 4 trays 96 cores
Madidi-ZT-Z14 Black 2 in 2 out 480 × 160 × 105 mm 2.2 kg Max 4 trays 96 cores
Madidi-ZT-Z15 Black 2 in 2 out 670 × 240 × 200 mm 5.9 kg Max 6 trays 144 cores
Main Parts
No. Name Quantity Usage Remark
1 Crust 1 set Protecting fiber cable splices in whole
2 Fusion splice tray Max. 4 trays Fix fiber, protect heat-shrinkable tube sleeve
3 Foundation 1 set Fix cable, reinforced core and tray
4 Seal fitting 1 set Air-proof between cover and bottom
5 Port plug 4 pieces Sealing empty ports
6 Valve 1 set Pressure measurement, inspection sealing Configure by user
Accessories List
No. Name of Accessories Quantity Usage Remarks
1 Heat shrinkable tube — Protecting fiber splices Configuration as per capacity
2 Nylon tie — Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Label tape 1 piece Sign fiber
7 Spanner 1 piece Install bolts of shell
8 Desiccant 1 bag Desiccating air
OEM / ODM Service

We offer full OEM and ODM services. If you wish to display your own brand logo on the goods — including cables, packaging bags, labels, or any other location — we can accommodate your requirements. Our OEM and ODM service is always ready to assist.

Packing & Shipping
Packing

Standard export packing is used: carton box, wooden box, or wooden pallet, according to your requirements.

Shipping
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
