IP68 Waterproof 96 Cores Inline Horizontal Fiber Optic Splice Closure and Fiber Optic Joint Closure for Aerial FTTH Networks
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | iSO9001, RoHS |
| Model Number | Madidi-ZT-Z14 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiable |
| Packaging Details | Carton box, wooden pallet |
| Delivery Time | 5~14 working days |
| Payment Terms | T/T,L/C |
| Supply Ability | 5,000pcs/week |
Product Details
| Type | Inline Type, Horizontal Type | Cable Ports | 2 In 2 Out |
|---|---|---|---|
| Cable Diameter | 8.0~22.0mm | Min. Capacity | 4 Cores |
| Max Capacity | 96 Cores | Material | PPR, ABS, PC, PP |
| Highlight | fiber optic splice enclosure,fiber optic joint closure |
||
Product Description
Product Overview
The Madidi-ZT-Z14 is a red, inline horizontal waterproof fiber optic splice closure designed for aerial and direct-buried deployment. Built to IP68 standards, it delivers reliable protection for fiber splices in demanding outdoor environments.
This 72-core inline horizontal splicing joint box accommodates up to 96 fibers across a maximum of four splice trays, making it a versatile solution for FTTH access, telecommunications, CATV, and data communication networks.
Quick Specifications
Product Name
Horizontal / Inline Fiber Optic Splicing Joint Box
Part Number
Madidi-ZT-Z14
Dimensions
480 × 160 × 105 mm
Weight
Approx. 2.2 kg
Cable Entry Ports
4 ports
Fiber Capacity
96 cores
Splice Tray Number
Max. 4 trays
Material
ABS / PC / PPR / PP Plastic
Cable Diameter
7.0 – 22.0 mm
Working Temperature
−40 °C to 65 °C
Applications
- FTTH access networks
- Telecommunication networks
- CATV networks
- Data communications networks
- Local area networks
- Aerial, direct buried, underground, pipeline, hand-hole, duct, and wall mounting installations
Key Features
- Excellent corrosion resistance for long-term outdoor durability
- Suitable for any harsh environment
- Anti-lightning protection
- Superior waterproof performance (IP68 rated)

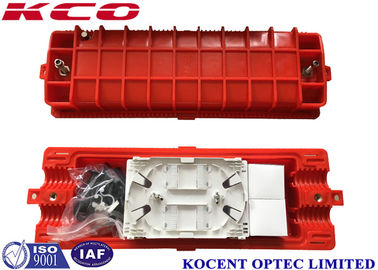

Product Image
Madidi Series Fiber Optic Splicing Closure Joint Box
Model Comparison
| P/N | Color | Cable Port | Size | Weight | Splice Tray Number | Capacity |
|---|---|---|---|---|---|---|
| Madidi-ZT-Z13 | Red | 2 in 2 out | 480 × 160 × 105 mm | 2.2 kg | Max 4 trays | 96 cores |
| Madidi-ZT-Z14 | Black | 2 in 2 out | 480 × 160 × 105 mm | 2.2 kg | Max 4 trays | 96 cores |
| Madidi-ZT-Z15 | Black | 2 in 2 out | 670 × 240 × 200 mm | 5.9 kg | Max 6 trays | 144 cores |
Main Parts
| No. | Name | Quantity | Usage | Remark |
|---|---|---|---|---|
| 1 | Crust | 1 set | Protects fiber cable splices in whole | — |
| 2 | Fusion splice tray | Max. 4 trays | Fixes fiber and protects heat-shrinkable tube sleeve | — |
| 3 | Foundation | 1 set | Fixes cable, reinforced core, and tray | — |
| 4 | Seal fitting | 1 set | Air-proof seal between cover and bottom | — |
| 5 | Port plug | 4 pieces | Seals empty ports | — |
| 6 | Valve | 1 set | Pressure measurement and inspection sealing | Configured by user |
Accessories List
| No. | Name of Accessories | Quantity | Usage | Remarks |
|---|---|---|---|---|
| 1 | Heat shrinkable tube | — | Protects fiber splices | Configuration as per capacity |
| 2 | Nylon tie | — | Fixes fiber with protective coat | Configuration as per capacity |
| 3 | Insulation tape | 1 roll | Enlarges diameter of fiber cable for easy fixing | — |
| 4 | Seal tape | 1 roll | Enlarges diameter of fiber cable to fit seal fitting | Configuration as per specification |
| 5 | Hanging hook | 1 set | For aerial use | — |
| 6 | Label tape | 1 piece | Signs fiber | — |
| 7 | Spanner | 1 piece | Installs bolts of shell | — |
| 8 | Desiccant | 1 bag | Desiccates air | — |
OEM / ODM Service
We offer full OEM and ODM support. Your own brand logo can be displayed on the goods, including cable, package bag, label, or any other location. Our OEM and ODM service is always ready to meet your requirements.
Packing & Shipping
Packing
Standard export packing is used: carton box, wooden box, or wooden pallet.
Shipping
- International express such as UPS, TNT, DHL, etc.
- International air: CA, AA, EA, etc.
- By sea
