GYFJH Cable PDLC ODLC CPRI Outdoor Indoor 2cores Fiber Optic Patch Cable for FTTH FTTA

  • GYFJH Cable PDLC ODLC CPRI Outdoor Indoor 2cores Fiber Optic Patch Cable for FTTH FTTA
  • GYFJH Cable PDLC ODLC CPRI Outdoor Indoor 2cores Fiber Optic Patch Cable for FTTH FTTA
  • GYFJH Cable PDLC ODLC CPRI Outdoor Indoor 2cores Fiber Optic Patch Cable for FTTH FTTA
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS, UL
Model Number PDLC, ODLC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 3~7 days after payment
Payment Terms Western Union,T/T,L/C
Product Details
Fiber Corning, Yofc Cable Cover LSZH, PE
Cable Color Black Cable Length 1m, 50m, 100m, Or Customized
Connector ODLC, PDLC Application Outdoor, Field, Army, CATV, FTTA,...
Insertion Loss 0.2dB Return Loss 55dB
Cores No. 2 Cores, 4 Cores, 8 Cores, ... Service OEM, ODM
Highlight

fibre optic patch cable

,

patch cord pigtail
Leave a Message
Product Description

PDLC ODLC duplex fiber optic patch cable outdoor water proof GYFJH 7.0mm LSZH cover

Quick Details about ODLC PDLC outdoor fiber optic patch cable assemblies:

  • Type: ODLC/PDLC fiber optic patch cord
  • Mode: Single mode and Multimode
  • Cable Fan-out: 0.5m, 1m, or customized
  • Connector: LC duplex
  • Ferrule End-face: PC, UPC, APC
  • Cable type: Fiber optic outdoor cable GYFJH
  • Cable diameter: 7.0mm
  • Cable cover material: LSZH
  • Cable core: 2 cores, 4 cores, 6 cores...or customized
  • Cable length: 50m, 70m, 100m….or customized

Description of ODLC PDLC outdoor fiber optic patch cable assemblies:

The PDLC connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the Antenna applications.

Features of ODLC PDLC outdoor fiber optic patch cable assemblies:

  • FTTA , WiMax base station, CATV outdoor Application.
  • Optional Diameter: 4.8mm, 7.0mm or Customized.
  • Optional Jacket: LSZH, PE; Armored or Non Armored.
  • IP67 Waterproof protection.
  • Standard Duplex LC connector, well connected with standard LC adaptor.
  • Available Single mode and Multimode.
  • IP67 protection, salt-mist proof, humidity proof, dust proof.
  • Aluminum housing, compact design.
  • Broad temperature range and wide range of indoor and outdoor cables.
  • Easy Operation, reliable and cost-effective Installation.

Applications of ODLC PDLC outdoor fiber optic patch cable assemblies:

  • Telecommunication networks
  • CATV, LAN, MAN, WAN, Test &Measurement
  • Optical access network
  • Fiber optic communication networks

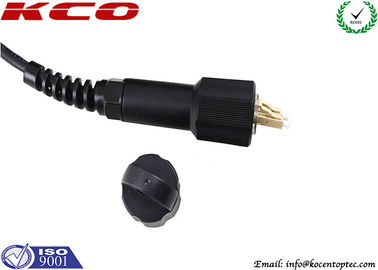

ODLC PDLC outdoor fiber optic patch cable assemblies product pictures:

GYFJH Cable PDLC ODLC CPRI Outdoor Indoor 2cores Fiber Optic Patch Cable for FTTH FTTA

GYFJH Cable PDLC ODLC CPRI Outdoor Indoor 2cores Fiber Optic Patch Cable for FTTH FTTA

GYFJH Cable PDLC ODLC CPRI Outdoor Indoor 2cores Fiber Optic Patch Cable for FTTH FTTA

Specification of ODLC PDLC outdoor fiber optic patch cable assemblies:

ItemSingle mode, Multimode
Ferrule End-facePCUPCAPC
Insert attenuation≤0.3dB≤0.3dB≤0.3dB
Return loss≥45dB≥50dB≥55dB
repeatability≤0.1dB≤0.1dB≤0.1dB
Operation temperature-20°C~+70°C(PVC)/-40°C~+90°C (LSZH/PE)
Outer diameter1.6mm(fan-out cable part), 4.8mm, 7.0mm

ODLC PDLC Assembly Performance:

ItemData
Insertion Loss≤0.2dB
Return LossSM/UPC≥55dB, SM/APC≥65dB, MM≥35dB
Mechanical life500cycles
Working temperature-40°C~+70°C
Storage temperature-40°C~+70°C
Operating temperature-10°C~+50°C
Protection LevelIP67
Tensile DataTensile between junction and fiber cable≥100N
AuthenticationMeet with RoHS

Outdoor fiber optic cable Specification:

ItemData
fiberOS2,OM1,OM2,OM3,OM4
Tension memberAramid Kevlar, Armored Tube
Max. attenuation

SM: ≤0.34dB/km at 1310nm, ≤0.20dB/km at 1550nm

MM: ≤0.60dB/km at 1300nm, ≤2.3dB/km at 850nm

Tensile resistance (short term)500N (no breakage)
Crush resistance(short term/long term)1000N/100mm
Inflaming retardingIEC 60332-3
Temperature-40~+70°C
UvioresistantPASS
AuthenticationMeet with RoHS &UL

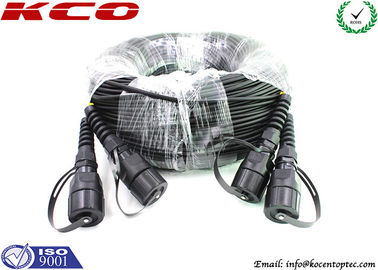

Our ODLC PDLC outdoor fiber optic patch cable assemblies packing ways:

GYFJH Cable PDLC ODLC CPRI Outdoor Indoor 2cores Fiber Optic Patch Cable for FTTH FTTA

OEM/ODM service:

Our OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product cable, product package or rack mount, it is no any problem. Our OEM service is always ready to servise you.

Shipping:

  • By International express: TNT, DHL, UPS, special line express, etc
  • By air: CA, ZH, CZ, AA, AC, BA, etc
  • By sea
