Armored Fiber Optic Patch Cord CPRI 4.8mm G657A DLC 0.2dB for FTTA and Outdoor Applications

  • Armored Fiber Optic Patch Cord CPRI 4.8mm G657A DLC 0.2dB for FTTA and Outdoor Applications
  • Armored Fiber Optic Patch Cord CPRI 4.8mm G657A DLC 0.2dB for FTTA and Outdoor Applications
  • Armored Fiber Optic Patch Cord CPRI 4.8mm G657A DLC 0.2dB for FTTA and Outdoor Applications
  • Armored Fiber Optic Patch Cord CPRI 4.8mm G657A DLC 0.2dB for FTTA and Outdoor Applications
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number STU-CPRI-2fo-4.8mm/2.0-LSZH-xm
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 ST/UPC, ST/APC, ST MM Connector 2 FC, LC, SC, ST, E2000, ...
Core 2 Cores Insertion Loss 0.2dB
Return Loss 55dB Cable Cover Material LSZH, TPU
Highlight

patch cord pigtail

,

fibre optic patch cable
Leave a Message
Product Description
CPRI Armored Fiber Optic Patch Cord 4.8mm G657A DLC 0.2dB Rolling Car 100m 150m 200m
Product Overview

Field Fiber Optic Patch Cord CPRI Armored TPU LSZH 4.8mm G657A DLC 0.2dB Rolling Car designed for managing outdoor fiber optic field cables in military or performance applications. This compact rolling car can handle cables from 50m to 200m with diameters less than 4.0mm.

Constructed from durable steel yet lightweight for easy handling and transportation. Ideal for CPRI fiber patch cables in next-generation wireless base stations (WCDMA/TD-SCDMA/WiMax/GSM), meeting FTTA (fiber to the top of the tower) program requirements for outdoor environments and adverse weather conditions.

Essential for 3G, 4G, 5G and WiMax base stations and fiber-optic distributed zoom technology, CPRI fiber patch cables are becoming the standard connector interface.

Key Specifications
  • Connector Options: ST, SC, LC, FC, E2000, MPO, etc.
  • Cable Types: Armored or non-armored
  • Cover Materials: LSZH, TPU, PE
  • Outer Diameters: 4.8mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm
  • Available Lengths: 5m to 500m in various increments
  • Color: Black
Applications
  • Fiber-to-the-Antenna (FTTA): For GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE systems
  • Automation & Industrial: Rugged design for shock/vibration resistance
  • Surveillance Systems: Compact size for security camera installations
  • Naval/Shipbuilding: Corrosion-resistant for humid/salty environments
  • Broadcast: Temporary installations for events and emergencies
Technical Parameters
Item Parameter
Connector ST/UPC
Insertion loss ≤0.3dB
Return loss ≥35dB
Fiber mode Multi-mode,50/125um
Operating wavelength 850nm,1310nm
Test wavelength 850nm,1310nm
Repeat ability ≤0.1dB
Interchange ability ≤0.2dB
Durability ≤0.2dB
Operating temperature -40~+85°C
Storage temperature -40~+85°C
Product Construction
Armored Fiber Optic Patch Cord CPRI 4.8mm G657A DLC 0.2dB for FTTA and Outdoor Applications 0
Product Images

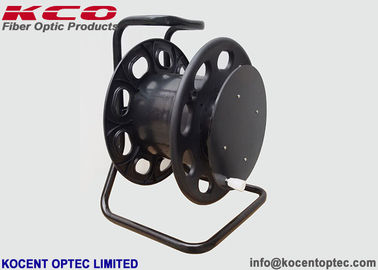

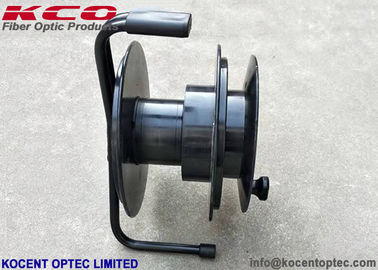

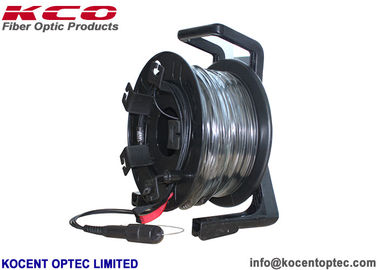

Armored Fiber Optic Patch Cord CPRI 4.8mm G657A DLC 0.2dB for FTTA and Outdoor Applications 1 Armored Fiber Optic Patch Cord CPRI 4.8mm G657A DLC 0.2dB for FTTA and Outdoor Applications 2
Detailed Specifications
Parameters Standard Fiber Cable Assemblies
Connector Side A: SC with armored
Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC, NSN, Ericson, Huawei, etc.
Fiber count 2 cores, 4 cores, 6 cores, 8 cores, 12 cores, 24 cores, 48 cores
Fiber Type SM G.652D G.657A (A1, A2, B3, ...)
MM OM1 OM2 OM3 OM4 OM5
Jacket Materials LSZH TPU PE
Cable diameter 4.8mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm
Testing Wavelengths SM: 1310±30nm, 1550±30nm
MM: 850±30nm, 1300±30nm
Insertion Loss(dB) ≤ 0.3dB(PC/UPC/APC)
≤ 0.3dB(UPC)
Return Loss(dB) ≥45dB (PC/UPC)
≥55dB (APC)
≥35dB (UPC)
Exchange ability ≤ 0.2dB
Operating Temperature -14℃~+ 85℃
Storage Temperature -40℃~+85℃
OEM/ODM Services

We offer complete OEM and ODM services, including custom branding on cables, packaging, labels, and other components.

Armored Fiber Optic Patch Cord CPRI 4.8mm G657A DLC 0.2dB for FTTA and Outdoor Applications 3
Packaging & Shipping

Standard export packaging options include carton boxes, wooden boxes, and wooden pallets.

Shipping methods available:

  • International express (UPS, TNT, DHL)
  • International air freight
  • Sea freight
Armored Fiber Optic Patch Cord CPRI 4.8mm G657A DLC 0.2dB for FTTA and Outdoor Applications 4
