6cm SC/APC Fiber Optic Fast Connector field installable fiber optic connector
|Place of Origin||Guangdong, China|
|Minimum Order Quantity||Negotiation|
|Packaging Details||plastic module, PE bag, Carton box, wooden pallet|
|Delivery Time||2~5 days after get payment|
|Payment Terms||Western Union, T/T, L/C|
|Connector Type||SC/APC||Cable Available||0.9mm Cable|
|Color||Green, Black||Insertion Loss||0.2dB|
|Return Loss||50dB||Wave Length||1260~1650nm|
ftth fast connector,
field installable fiber optic connector
6.0cm SC/APC Optical Fast Connector , Fiber Quick Assembly Connector For 0.9mm Cable
This kind of SC/APC fiber optic fast connector is special design for 0.9mm indoor fiber optic cable.
Fast connectors features:
- No special assembling tool
- Quick and easy for assembling
- Reusable and repeat operation times are up to 300
- Integrated protection of the casing to prevent the connector form impact
- Can be installed in two minutes
- Power-save, as it does not need hot melting
- Without any gluing and polishing process
2. Telecommunication networks
3. Test equipment
4. Local Area Networks(LANs)
5. Data processing networks
6. Testing instruments

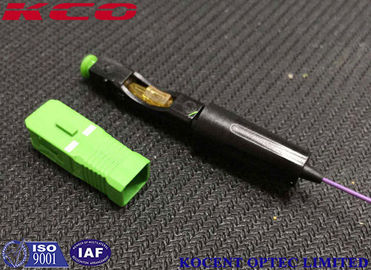

Fast connectors photo:
Fast connectors Specifications:
|Applicable for||Drop cable. Indoor cable(0.9/2.0/3.0mm)|
|Optical fiber diameter||125μm|
|Tight buffer diameter||250μm|
|Fiber mode||Single mode|
|Operation time||About 100s(no fiber cut)|
|Insert loss||≤ 0.3dB|
|Fastening strength of naked fiber||>5N|
|Fastening strength of naked fiber holder||>10N|
|On-line tensile strength (20N)||IL ≤ 0.5dB RL ≤ 5dB|
|Mechanical durability (500 times)||IL ≤ 0.5dB RL ≤ 5dB|
|Drop-off test (drop-off height 4m, once per direction, totally 3 times)||IL ≤ 0.5dB RL ≤ 5dB|
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
