SC/APC Fiber Optic Fast Connector for 0.9mm Cable with Low Insertion Loss 0.2dB and High Return Loss 50dB
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO |
| Certification | ISO9001, RoHS |
| Model Number | SC/APC |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | plastic module, PE bag, Carton box, wooden pallet |
| Delivery Time | 2~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 100,000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector Type | SC/APC | Cable Available | 0.9mm Cable |
|---|---|---|---|
| Color | Green, Black | Insertion Loss | 0.2dB |
| Return Loss | 50dB | Wave Length | 1260~1650nm |
| Highlight | ftth fast connector,field installable fiber optic connector |
||
Product Description
6cm SC/APC Fiber Optic Fast Connector
Field installable fiber optic connector designed for 0.9mm indoor fiber optic cable.
Key Features
- No special assembling tools required
- Quick and easy assembly process
- Reusable design with up to 300 operation cycles
- Integrated protective casing prevents impact damage
- Installation completed in under two minutes
- Energy efficient - no hot melting required
- Eliminates gluing and polishing processes
Applications
- CATV systems
- Telecommunication networks
- Test equipment
- Local Area Networks (LANs)
- Data processing networks
- Testing instruments

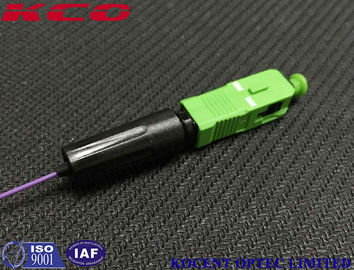

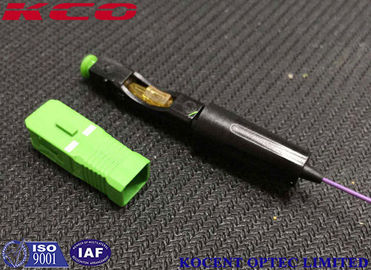

Product Images
Technical Specifications
| Parameter | Specification |
|---|---|
| Applicable for | Drop cable, Indoor cable (0.9/2.0/3.0mm) |
| Optical fiber diameter | 125μm |
| Tight buffer diameter | 250μm |
| Fiber mode | Single mode |
| Operation time | About 100s (no fiber cut) |
| Insert loss | ≤ 0.3dB |
| Return loss | ≥50dB |
| Fastening strength of naked fiber | >5N |
| Fastening strength of naked fiber holder | >10N |
| Tensile strength | >50N |
| Using temperature | -40°C to +75°C |
OEM/ODM Services
We offer custom branding options for your products including cable, packaging, labels, and more. Our OEM and ODM services are available to meet your specific requirements.
Packaging & Shipping
Packaging: Standard export packing options including carton boxes, wooden boxes, and wooden pallets.
Shipping Methods:
- International express (UPS, TNT, DHL)
- International air freight
- Sea freight
