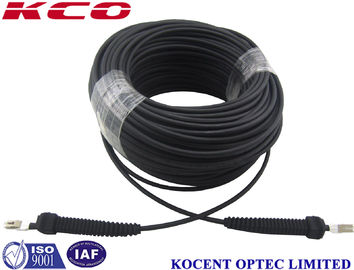

Compatible with Nokia Connector SNS DLC OM3 Outdoor Fiber Optic Patch Cord 5.0mm LSZH For FTTH FTTA BBU RRU RRH LTE
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO |
| Certification | ISO9001, RoHS |
| Model Number | NSN-NSN-DLC-OM3-5.0mm-x(m)-LSZH |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | PE bag, carton box, wooden roll |
| Delivery Time | 2~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
Product Details
| Connector 1 | LC | Connector 2 | LC |
|---|---|---|---|
| Core | Duplex, 2 Cores | Insertion Loss | 0.2dB |
| Return Loss | 55dB | Cable Cover Material | Armored, PVC, LSZH |
| Highlight | fiber optic pigtail cables,patch cord pigtail |
||
Product Description
Nokia-Compatible Outdoor Fiber Optic Patch Cord
Compatible with Nokia Connector SNS DLC OM3 Outdoor Fiber Optic Patch Cord 5.0mm LSZH designed for FTTH, FTTA, BBU, RRU, RRH, and LTE applications.
NSN fiber optic connectors are engineered for next-generation wireless base stations (WCDMA/TD-SCDMA/WiMAX/GSM), specifically designed to meet FTTA (Fiber to the Antenna) program requirements for outdoor environments and adverse weather conditions. These connectors are ideal for industrial, aerospace, and defense applications.
NSN fiber connectors, combined with support optical cable, have become the standard interface specified in 3G, 4G, and WiMax Base Station remote radios and Fiber-to-the-Antenna applications, though their use extends beyond these applications.
NSN cable assemblies have passed rigorous testing including salt mist, vibration, and shock tests, meeting IP65 protection class standards.
KOCENT OPTEC LIMITED provides OEM and ODM services for all types of fiber optic patch cords, specializing in outdoor field operations including NSN, PDLC, DLC, ODC, ODVA, RRU, TPU, CPRI, Optitap, Mini SC, OM3, and OM4 patch cords.
We supply various field operations fiber optic patch cords with different waterproof connector types for Telecom 3G, 4G, LTE, BBU, RRU, and RRH base stations. With complete production equipment and strict QC processes, we deliver telecom-standard goods to our customers.
Our Outdoor Fiber Optic Connector Family

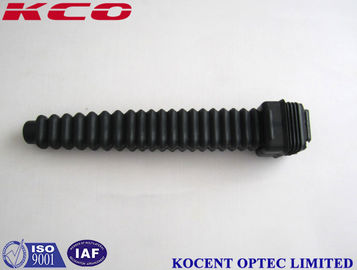

5.0mm Armored Fiber Optic Patch Cable for NSN
Cable Structures
| Component | Material | Specifications |
|---|---|---|
| Optical Fiber | 50/125 OM3 | 0.9±0.05 |
| Metal Tube | Stainless | 2.8±0.1 (mm) |
| Tensile Element | Kevlar | 1110D |
| Jacket | LSZH | 4.7±0.3 (mm) |
NSN Fiber Optic Patch Cable Construction
Key Features
- Standard NSN connector boot
- Available in Single mode and Multimode options
- IP65 protection, salt-mist proof, humidity proof
- Aluminum housing with compact design
- Broad temperature range for indoor and outdoor applications
- Easy operation with reliable and cost-effective installation
- Connector side A: DLC, side B: LC, FC, SC options
- Compatible with 3G/4G base station BBU, RRU, RRH, LTE
Applications
- Widely used in FTTA & FTTH systems
- 3G/4G base station infrastructure
- BBU, RRU, RRH, LTE installations
Technical Specifications
| Parameter | Single Mode (SM) | Multimode (MM) |
|---|---|---|
| Connector | A: NSN, B: NSN, LC, SC, FC, ST | |
| Fiber Type | G657A1/A2 | - |
| Fiber Count | 2 Cores | |
| Color | Blue, Green | Beige, Aqua |
| Polish | UPC, APC | PC |
| Insertion Loss | ≤0.2dB | |
| Return Loss | ≥50dB (UPC) ≥60dB (APC) | ≥35dB |
| Durability | ≥500 cycles ≤0.2dB | |
| Test Wavelength | 1310/1550nm | 850/1310nm |
| Attenuation (max.dB) | 1310nm≤0.35dB/km 1550nm≤0.25dB/km |
850nm≤3.0dB/km 1310nm≤1.0dB/Km |
| Operating Temperature | -40 to +80℃ | |
OEM/ODM Services
We offer comprehensive OEM and ODM services, including custom branding on cables, packaging bags, labels, or any other requested location.
Packing & Shipping
Standard export packing using carton boxes, wooden boxes, or wooden pallets. Shipping options include international express (UPS, TNT, DHL), international air freight, and sea freight.
