MM OM3 50/125 10G Fiber Optic Patch Cord / Jumpers 10m 20m 30m 50m 70m 100m
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector 1 | LC/UPC Uniboot | Connector 2 | LC/UPC Unitboot, SC Uniboot |
|---|---|---|---|
| Core | 2 Cores | Cover | PVC, LSZH, Armored, Customized |
| Insertion Loss | 0.2dB | Return Loss | 60dB |
| High Light | fiber optic pigtail cables,patch cord pigtail |
||
Product Description

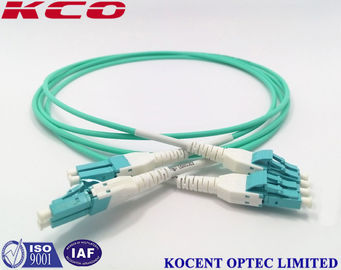

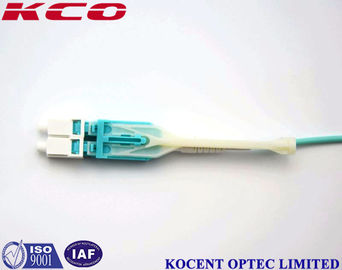

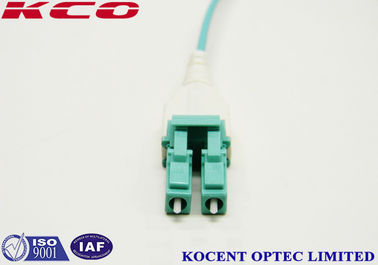

LC Uniboot MM OM3 50/125 10G Optical Fibers Patch Jupers
10m 20m 30m 50m 70m 100m
Kocent Optec Limited provide OEM service for all length of LC Uniboot Patch Jumpers.
LC Uniboot Patch Jumpers is swichable, normally use for Fiber Optic Switch, it is easier for plug in and plug out.
Can be compatible with all type of big brand Switch such as Huawei, Cisco, Juniper, H3C, ...
The main advantage of LC duplex uniboot patchcord is outer diameter of used cable.
Two fibers for bi-directional connectivity are placed only in one jacket, which has outer diameter of a standard simplex patchcord - 3,0mm.
This solution reduces the space usage by 50% compared with the traditional zip-cord patchcords.
Half of the space in racks, cabinets or patch panels is now freed up for more cable connections or simply better organization.
The LC Uniboot fiber optic patch jumpers are utilized to achieve more effective cable management in high-density network environment. With a more compact design, they can reduce cable management space by 68% when compared to traditional duplex zipcord assemblies. These assemblies contain two LC connectors encased in a common housing with one boot, terminated on a single, round, two-fiber cable, therefore allowing duplex transmission within a single cable.
Quick Information:
Name: Uniboot LC Multimode OM3 Fiber Optic Patch Jumpers
Fiber type: Multimode OM3 50/125
Model Number: Uniboot LC
Inserion Loss: <0.2db
Return Loss: SM/UPC≥50dB,
SM/APC≥60dB
MM≥35dB
Cable jacket size: 3.0mm, 2.0mm
Length: 10m, 20m, 30m, 50m, customized
Cable Color: Aqua
Cable material: PVC, LSZH
Applications:
- Private networks
- Data centers
- High density applications
- Interconnect and cross-connect
Specifications:
| General Specifications | |
| Flame Rating | LSZH/FRNC |
| Cable Assembly Type | 2 Fibres |
| Fibre Category | SM, OM3, OM4 |
| Design | |
| Connector Type | LC Uniboot |
| Ferrule | Ceramic |
| Polish | UPC |
| Housing Material | PEI and Stainless stell |
| Boot | Blue, Green, Grey |
| Boot Colour | Blue, Green, Grey, White |
| Temperature Range | |
| Operation | -40℃~85℃ |
| Installation and assembly | -40℃~85℃ |
| Storage | -40℃~85℃ |
| Mechanical Specifications | |
| Durability | IL≤0.2Db 500times |
| Tensile strength jacketed cable | 44 N |
| Optical Specifications | |
| Insertion Loss, Typical | 0.15 dB |
| Insertion loss, max. | 0.3 dB |
| Reflectance, typical | ≤-55dB |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
