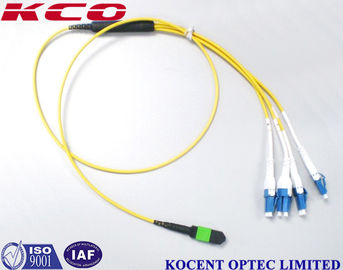

Switchable MPO to LC Uniboot Single Mode Mono Mode OS2 Optic Fiber Patch Cables
Product Details
| Connector 1 | MPO/MTP | Connector 2 | LC/UPC Unitboot, SC Uniboot |
|---|---|---|---|
| Core | 2 Cores | Cover | PVC, LSZH, Armored, Customized |
| Insertion Loss | 0.2dB | Return Loss | 60dB |
| Cable Color | Aqua, Violet, Customized | Length | 1m, 3m, 5m, Cusomized |
| Highlight | fiber optic pigtail cables,patch cord pigtail |
||
Product Description
Switchable MPO to LC Uniboot Single Mode OS2 Fiber Patch Cables
Kocent Optec Limited provides OEM services for all types of fiber optic patch cables including FC, LC, SC, ST, MT-RJ, E2000, MPO, MTP, ESCON, FDDI, DPLC, and specialized LC Uniboot and SC Uniboot connectors.
Our high-performance Duplex LC Uniboot optical fiber patch cables save 50% of the operation space required compared to traditional patch cords.
LC Uniboot patch cords are the preferred choice for data center high-density connectivity. They feature a reverse polarity uniboot designed LC connector that eliminates the need for dual zip cords and reduces overall cabling bulk by 50%.
Product Overview
As networking environments increasingly demand high-speed, high-density solutions, effective cable management becomes crucial. The challenge lies in managing more cables within limited space.
The Uniboot patch cord utilizes a special "round duplex" cable that enables duplex transmission within a single cable, significantly reducing cable management space compared to standard patch cords. These high-density cables feature flexible "push-pull tab" uniboot connectors, bend-insensitive fiber, and ultra-low insertion loss (0.15dB) for 10GBase, 40GBase, and 100GBase network connections in data centers.
Our LC Uniboot cable assemblies provide optimal solutions for high-density applications, data centers, interconnect and cross-connect installations, private networks, and premise installations.
Our uniboot fiber patch cords reduce cable management space by up to 68% compared to standard patch cords. The patch cord utilizes a special "round duplex" cable that allows duplex transmission within a single 3mm cable, improving airflow and equipment visibility in high-density network environments. Available in various cable materials including LSZH, Plenum, and Riser.
Design Features
Technical Specifications
| Specification | Details |
|---|---|
| Flame Rating | LSZH/FRNC |
| Cable Assembly Type | 2 Fibres |
| Fibre Category | SM, OM3, OM4 |
| Connector Type | LC Uniboot |
| Ferrule | Ceramic |
| Polish | UPC |
| Housing Material | PEI and Stainless Steel |
| Boot Color | Blue, Green, Grey, White |
| Operation Temperature | -40℃ to 85℃ |
| Installation Temperature | -40℃ to 85℃ |
| Storage Temperature | -40℃ to 85℃ |
| Durability | IL≤0.2dB 500 times |
| Tensile Strength | 44 N |
| Insertion Loss (Typical) | 0.15 dB |
| Insertion Loss (Max) | 0.3 dB |
| Reflectance (Typical) | ≤-55dB |
Key Benefits
Polarity Reversible and Reduced Cable Congestion
With a finger latch release, LC uniboot fiber patch cables eliminate the need for tools when making polarity changes. Color-coded and labeled "A" and "B" provide visual references for polarity flipping. The uniboot design cuts cabling by half compared to conventional duplex cords, significantly reducing congestion in racks and cabinets.
Easy Identification and Installation
LC uniboot fiber patch cables improve airflow and equipment visibility in high-density networks. Unique serial numbers, part numbers, and length labels on both cable ends facilitate easy identification and cut installation time by half. Ideal for high-density applications where cable footprint is critical.
Hassle-free Networking Configuration
Combining two individual LC connectors into a single entity provides a cleaner appearance and hassle-free networking configuration. This design ensures communication integrity by preventing misconfiguration of transmission and receiving fibers.
OEM/ODM Services
We offer comprehensive OEM and ODM services. Display your brand logo on cables, packaging bags, labels, or any other location according to your requirements.
Packaging
Standard export packaging includes carton boxes, wooden boxes, and wooden pallets.
Shipping Options
International express services (UPS, TNT, DHL), international air freight (CA, AA, EA), and sea freight available.
