Blue SC/APC SC/UPC Fiber Optic Adapter with 0.10dB Repeatability and Flange for High Precision Alignment

  • Blue SC/APC SC/UPC Fiber Optic Adapter with 0.10dB Repeatability and Flange for High Precision Alignment
  • Blue SC/APC SC/UPC Fiber Optic Adapter with 0.10dB Repeatability and Flange for High Precision Alignment
  • Blue SC/APC SC/UPC Fiber Optic Adapter with 0.10dB Repeatability and Flange for High Precision Alignment
  • Blue SC/APC SC/UPC Fiber Optic Adapter with 0.10dB Repeatability and Flange for High Precision Alignment
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number SC/UPC-SC/APC-Flange-SX
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Plastic module, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 500,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type1 SC/APC Type2 SC/UPC
Material Plastic Chanel Way Simplex
Color Blue Repeat Ability 0.10dB
Highlight

fibre optic adapter

,

fiber optic adaptor
Leave a Message
Product Description
Blue Green Fiber Optic Adapter SC/UPC, SC/APC With Flange Simplex 0.2dB
This fiber optic adapter provides reliable cable-to-cable fiber connections, available in SC/UPC or SC/APC configurations with flange. Designed for both single mode and multimode fiber applications, it ensures high-performance connectivity without dust caps.
Key Features
  • Compact design with high precision alignment
  • Optional with/without flange configuration
  • Available in simplex, duplex or quad options
  • Zirconia sleeve for durability
  • Low insertional loss and high return loss
  • Compliant with IEC, Telcordia GR 326 and JIS standards
Applications
  • CATV systems
  • Telecommunication networks
  • Industrial, Medical & Military applications
  • LANs, MANs, WANs
  • Data processing networks
  • Fiber to the home (FTTX)

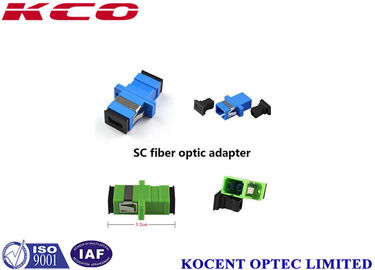

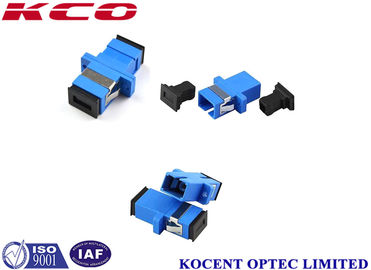

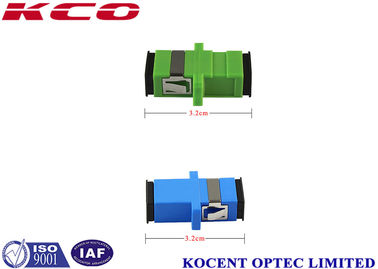

Product Images
Blue SC/APC SC/UPC Fiber Optic Adapter with 0.10dB Repeatability and Flange for High Precision Alignment 0 Blue SC/APC SC/UPC Fiber Optic Adapter with 0.10dB Repeatability and Flange for High Precision Alignment 1 Blue SC/APC SC/UPC Fiber Optic Adapter with 0.10dB Repeatability and Flange for High Precision Alignment 2
Technical Specifications
Parameter Specifications
Mating Connector Type SC, LC, FC, ST, MU, D4, DIN, E2000, SMA
Fiber Type Single Mode | Multimode
Adapter Color Blue, green, metallic | Beige, metallic
Testing Wavelength 1310nm, 1550nm | 850nm, 1300nm
Insert Loss Typical ≤0.15dB, max ≤0.2dB
Repeatability ≤0.10dB
Exchangeability ≤0.20dB
Durability 1000 mating cycles, max ≤0.20dB
Housing Material Plastic or metal
Operating Temperature -20°C to +70°C
Storage Temperature -40°C to +85°C
Alignment Sleeve Ceramic (ZrO2) or customized
Channel Number Simplex, duplex, quad
Reliability Testing
Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB
OEM/ODM Services
Custom branding options available for cables, packaging, labels, and other components. Our OEM and ODM services can accommodate your specific requirements.
Packaging & Shipping
Standard export packaging options include carton boxes, wooden boxes, and wooden pallets. Available shipping methods:
  • International express (UPS, TNT, DHL)
  • International air freight (CA, AA, EA)
  • Sea freight
