LC/UPC Fiber Optic Adapter with Ceramic Sleeves and 0.10dB Repeatability for Duplex Applications

  • LC/UPC Fiber Optic Adapter with Ceramic Sleeves and 0.10dB Repeatability for Duplex Applications
  • LC/UPC Fiber Optic Adapter with Ceramic Sleeves and 0.10dB Repeatability for Duplex Applications
  • LC/UPC Fiber Optic Adapter with Ceramic Sleeves and 0.10dB Repeatability for Duplex Applications
  • LC/UPC Fiber Optic Adapter with Ceramic Sleeves and 0.10dB Repeatability for Duplex Applications
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number LC/UPC-Flange-DX
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Plastic module, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 500,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type LC/UPC Sleeves Material Ceramic (ZrO2)
Material Plastic Chanel Way Duplex
Color Blue Repeat Ability 0.10dB
Highlight

fibre optic adapter

,

fiber optic adaptor
Leave a Message
Product Description
FTTX CATV Optical Fiber Adapter Ceramic Sleeves Material LC Duplex Coupler

Blue Fiber Optic Adapter LC/UPC With Flange, Without Dust Cap, Duplex

Fiber optic adapter, also called fiber optic coupler, provides cable-to-cable fiber connections. These adapters are available as mating sleeves for connecting identical fiber optic connectors or hybrid adaptors for connecting different connector types. Our comprehensive range includes ST, SC, FC, and LC style adapters for both multimode and single-mode fiber applications.

The LC/UPC fiber optic adapter is available in single mode UPC/APC and multimode PC configurations to accommodate various patch cable requirements.

Applications
  • CATV systems
  • Telecommunication networks
  • Industrial, Medical & Military applications
  • LANS, MANS, WANS
  • Fiber to the home (FTTX)
Key Features
  • Compact design for space efficiency
  • High precision alignment for optimal performance
  • Optional with/without flange configuration
  • Zirconia sleeve for durability
  • Low insertional loss and high return loss
  • Compliant with IEC, Telcordia GR 326 and JIS standards
Product Images

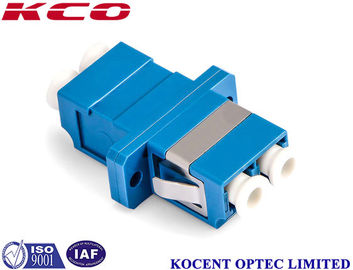

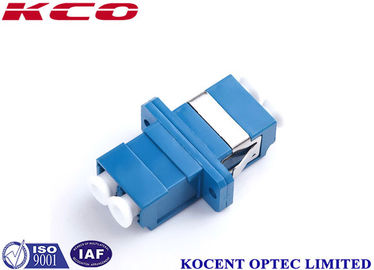

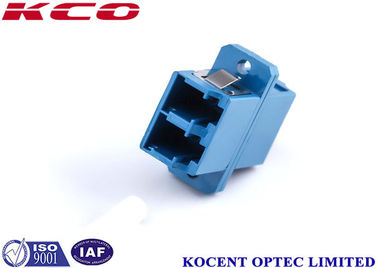

LC/UPC Fiber Optic Adapter with Ceramic Sleeves and 0.10dB Repeatability for Duplex Applications 0 LC/UPC Fiber Optic Adapter with Ceramic Sleeves and 0.10dB Repeatability for Duplex Applications 1 LC/UPC Fiber Optic Adapter with Ceramic Sleeves and 0.10dB Repeatability for Duplex Applications 2
Technical Specifications
Parameter Specifications
Mating Connector Type SC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc
Fiber Type of Connector Single Mode | Multimode
Adapter Color Blue, green, metallic | Beige, Metallic
Testing Wavelength 1310nm,1550nm | 850nm,1300nm
Insert Loss Typical≤0.15dB, max≤0.2dB | Typical≤0.15dB, max≤0.2dB
Repeatability ≤0.10dB
Exchangeability ≤0.20dB
Durability 1000Mating, max≤0.20dB
Housing Material Plastic or metal
Operating Temperature -20°C～+70°C
Storage Temperature -40°C～+85°C
Alignment Sleeve Ceramic (ZrO2) or customized
Channel Number Simplex, duplex, quad
Reliability Testing
Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB
Quality Assurance

Our fiber optic adapters undergo rigorous testing to ensure consistent quality and performance. They are designed to comply with Telcordia 100BaseFX Technologies standards, offering superior low loss performance with high repeatability.

OEM/ODM Services

We offer custom branding options for your products, including cable, packaging, and labels. Our OEM and ODM services can accommodate your specific requirements.

Packaging & Shipping

Packaging: Standard export packaging options including carton boxes, wooden boxes, and wooden pallets.

Shipping Methods:

  • International express services (UPS, TNT, DHL)
  • International air freight (CA, AA, EA)
  • Ocean freight
